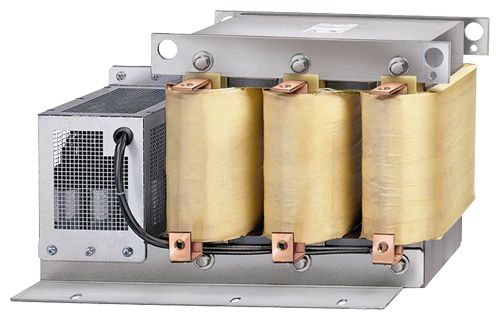

Sine-wave filters

• Заказные данные
  (4)
• Информационные материалы

  Информационные материалы



  If a sine-wave filter is connected to the output of the Power Module or Motor Module, the voltage between the motor terminals is virtually sinusoidal. This reduces the voltage load on the motor windings and prevents motor noise induced by the pulse frequency.

  The pulse frequency of the modules must be set to 4 kHz for the sine-wave filters. The max. output frequency with sine-wave filter is limited to 150 Hz.

  As a result, the max. possible output current and the max. achievable output voltage of the units are reduced. The voltage drops across the sine-wave filter, a factor which must also be taken into account in the drive design.

  A sine-wave filter must be installed as close as possible to the Motor Module or Power Module.

  It is only permissible to operate the sine-wave filter when the motor is connected (sine-wave filters are not no-load proof)!

  For additional information on sine-wave filters, please refer to the SINAMICS Low Voltage Configuration Manual.

  Технические данные

  Line voltage 380 ... 480 V 3 AC		Sine-wave filter
  		6SL3000-2CE32-3AA0		6SL3000-2CE32-8AA0	6SL3000-2CE33-3AA0	6SL3000-2CE34-1AA0
  Rated current	A	225		276	333	408
  Power loss, max.
  At 50 Hz 400 V	kW	0.221		0.235	0.245	0.34
  At 60 Hz 460 V	kW	0.265		0.282	0.294	0.408
  At 150 Hz 400 V	kW	0.48		0.5	0.53	0.75
  Load connection		Flat connector for M10 screw		Flat connector for M10 screw	Flat connector for M10 screw	Flat connector for M10 screw
  PE connection		1 × hole for M10		1 × hole for M10	1 × hole for M10	1 × hole for M10
  Cable length, max. between sine-wave filter and motor
  Shielded	m (ft)	300 (984)		300 (984)	300 (984)	300 (984)
  Unshielded	m (ft)	450 (1476)		450 (1476)	450 (1476)	450 (1476)
  Degree of protection		IP00		IP00	IP00	IP00
  Dimensions
  Width	mm (in)	620 (24.4)		620 (24.4)	620 (24.4)	620 (24.4)
  Height	mm (in)	300 (11.8)		300 (11.8)	370 (14.6)	370 (14.6)
  Depth	mm (in)	320 (12.6)		320 (12.6)	360 (14.2)	360 (14.2)
  Weight, approx.	kg (lb)	124 (273)		127 (280)	136 (300)	198 (437)
  Conformity		CE		CE	CE	CE
  Certificate of suitability		cURus		cURus	cURus	cURus
  Suitable for Power Module		6SL3310-1TE32-1AA3 6SL3315-1TE32-1AA3	6SL3310-1TE32-6AA3 6SL3315-1TE32-6AA3	6SL3310-1TE33-1AA3 6SL3315-1TE33-1AA3	6SL3310-1TE33-8AA3	6SL3310-1TE35-0AA3 6SL3315-1TE35-0AA3
  Suitable for Motor Module		6SL3320-1TE32-1AA3 6SL3325-1TE32-1AA3	6SL3320-1TE32-6AA3 6SL3325-1TE32-6AA3	6SL3320-1TE33-1AA3 6SL3325-1TE33-1AA3	6SL3320-1TE33-8AA3	6SL3320-1TE35-0AA3 6SL3325-1TE35-0AA3
  Rated current of the Motor Module or Power Module at a pulse frequency of 4 kHz	A	170	215	270	330	380
  Output power of the Motor Module or Power Module at a pulse frequency of 4 kHz	kW	90	110	132	160	200
