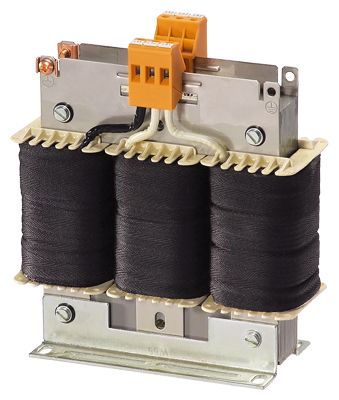

Line reactors for Smart Line Modules
- Заказные данные (5)
- Информационные материалы
Информационные материалы
Line reactors are required in order for the Smart Line Modules to function. The use of other makes of line reactor can lead to malfunctions or irreparable damage to equipment.
Технические данные
Line voltage 380 ... 480 V 3 AC
Line reactor
6SL3000-0CE15-0AA0
6SL3000-0CE21-0AA0
6SL3000-0CE21-6AA0
6SL3000-0CE23-6AA0
6SL3000-0CE25-5AA0
Rated current
A
14
28
35
69
103
Power loss
kW
0.062
0.116
0.11
0.17
0.19
Line/load connection
1U1, 1V1, 1W1 / 1U2, 1V2, 1W2
Screw-type terminals
Screw-type terminals
Screw-type terminals
Screw-type terminals
Screw-type terminals
- Conductor cross-section
mm2
4
10
10
35
70
PE connection
M4 screw
M4 screw
M5 screw studs according to DIN 46234
M6 screw studs according to DIN 46234
M8 screw studs according to DIN 46234
Degree of protection
IP20
IP20
IP20
IP20
IP20
Dimensions
- Width
mm (in)
150 (5.91)
177 (6.97)
219 (8.62)
225 (8.86)
300 (11.81)
- Height
mm (in)
175 (6.89)
196 (7.72)
180 (7.09)
235 (9.25)
280 (11.02)
- Depth
mm (in)
66.5 (2.62)
86 (3.39)
119 (4.69)
224 (8.82)
290 (11.42)
Weight, approx.
kg (lb)
3.7 (8.16)
7.5 (16.5)
9.5 (20.9)
17 (37.5)
36 (79.4)
Certificate of suitability
cURus
cURus
cURus
cURus
cURus
Suitable for Smart Line Module in booksize or booksize compact format
Type
6SL3130-6AE15-0AB1
6SL3130-6AE21-0AB1
6SL3130-6TE21-6AA4
6SL3430-6TE21-6AA1
6SL3130-6TE23-6AA3
6SL3130-6TE25-5AA3
- Rated power of the Smart Line Module
kW (hp)
5 (5)
10 (10)
16 (18)
36 (40)
55 (60)
