  Control Supply Module in booksize format

  The Control Supply Module in booksize format provides a 24 V to 28.8 V DC power supply that can be set using an integrated poteniomenter via the line or DC link. The Control Supply Module can either be operated individually or in a parallel connection with a maximum of 10 devices. A DIP switch on the top of the module is used to change over in the de-energized state (details of connection for parallel operation are given in the manual for booksize modules).

  Using the Control Supply Module, it is possible for example to make specific emergency retraction movements in the event of a power failure, provided that the DC link voltage is available.

  Дизайн

  Control Supply Modules feature the following connections and interfaces as standard:

  • 1 line connection
  • 2 DC link connections via integrated DC link busbars
  • 2 electronics power supply connections via integrated 24 V DC bars
  • 1 connection for the electronics power supply for Control Units, Terminal Modules, Sensor Modules, etc., via the 24 V terminal adapter provided in the scope of supply (max. cross-section 6 mm², max. fuse protection 20 A)
  • 1 integrated potentiometer for setting the output voltage
  • 1 digital output to signal the error-free state
  • 1 DIP switch to change over between single and parallel mode
  • 2 PE (protective earth) connections

  The status of the Control Supply Modules is indicated via two multi‑color LEDs.

  Интеграция

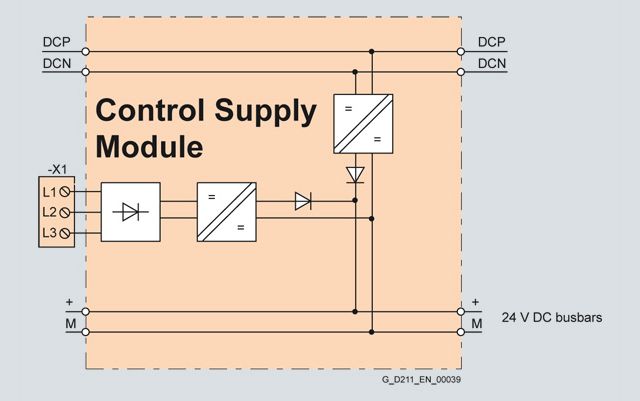

  Connection example of Control Supply Module

  Технические данные

  DC link voltage 510 ... 720 V DC Line voltage 380 ... 480 V 3 AC	Control Supply Module in booksize format Internal air cooling 6SL3100-1DE22-0AA1
  Rated input current
  At 400 V 3 AC	≤2 A
  At 600 V DC	1.1 A
  DC link voltage range	300 … 882 V DC (operation in 300 … 430 V DC range is permitted temporarily for < 1 min)
  Radio interference suppression (standard)	Category C2 to EN 61800‑3
  Rated output voltage	24 V ... 28.8 V DC (adjustable via potentiometer)
  Rated output current	20 A
  Current carrying capacity
  24 V DC busbars	20 A
  DC link busbars	100 A
  Line connection L1, L2, L3 (X1)	Screw-type terminals
  Conductor cross-section	0.2 ... 4 mm2
  PE connection	M5 screw
  Dimensions
  Width	50 mm (1.97 in)
  Height	380 mm (14.96 in)
  Depth, with spacer (included in scope of supply)	270 mm (10.63 in)
  Weight, approx.	4.8 kg (10.6 lb)
  Certificate of suitability	cULus
