DC link adapters for booksize and booksize compact formats
- Заказные данные (4)
- Информационные материалы
Информационные материалы

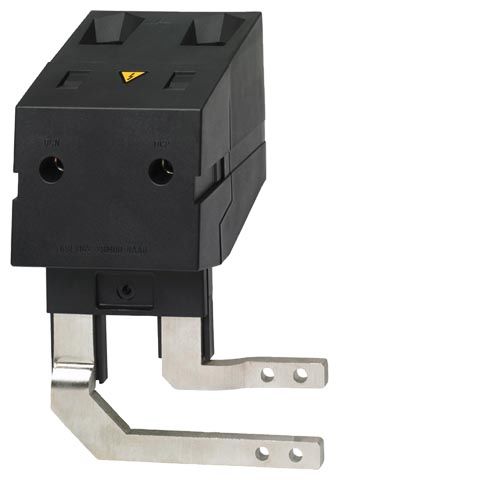

DC link rectifier adapter
DC link rectifier adapter for unit widths of 50 mm (1.97 in) and 100 mm (3.94 in)
DC link rectifier adapter for unit widths of 150 mm ... 300 mm (5.91 in ... 11.81 in)
If the internal DC link busbars of the Motor Modules are not used, the DC link voltage must be supplied externally through a DC link rectifier adapter, e.g. when devices of booksize format are coupled with devices of chassis format over an external DC busbar. The DC link rectifier adapter is mounted on the DC link busbars of the Motor Module. The DC link cables are routed from above.

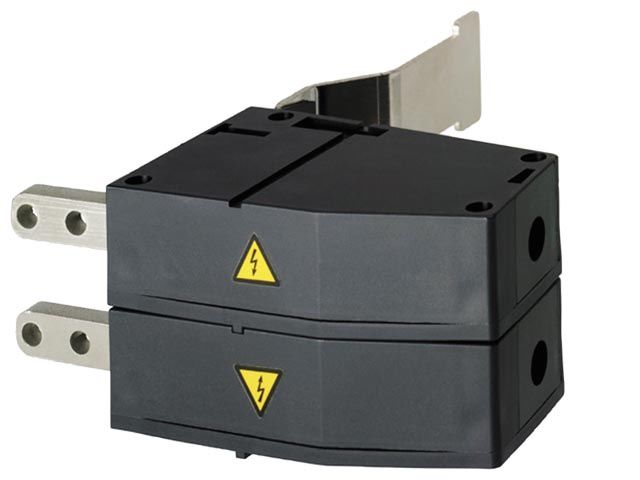

DC link adapter
DC link adapter (multi-tier) for all unit widths
If a multi-tier Motor Module configuration is used, a DC link adapter can be provided for linking the DC links of two drive line-ups. The DC link adapter is mounted sideways on the DC link busbars of the Motor Module. Installation is possible on the right or left side of the Motor Module. The marking of the poles (DCN and DCP) at the DC link adapter matches the side chosen for installation. The DC link cables are routed from behind. The DC link adapter (multi-tier) cannot be used in combination with the reinforced DC link busbars for Motor Modules ≤ 100 mm (3.94 in) wide. DC link adapters are supplied in sets of 2 units.
Технические данные
DC link rectifier adapter
DC link adapter set
6SL3162-2BD00-0AA0
6SL3162-2BM00-0AA0
6SL3162-2BM01-0AA0
6SL3162-2BM10-0AA0
Connection
Screw-type terminals
Screw-type terminals
Screw-type terminals
Screw-type terminals
- Conductor cross-section
mm2
0.5 ... 10
35 ... 95
35 ... 95
35 ... 95
Current carrying capacity
A
43
240
240
240
Weight, approx.
kg (lb)
0.06 (0.13)
0.48 (1.06)
0.76 (1.68)
0.76 (1.68)
Certificate of suitability
cURus
cURus
cURus
cURus
Suitable for Line Modules and Motor Modules
Formats
Booksize and booksize compact
Booksize and booksize compact
Booksize and booksize compact
Booksize and booksize compact with reinforced DC link busbars
