Line Connection Modules
- Заказные данные (21)
- Информационные материалы
Информационные материалы

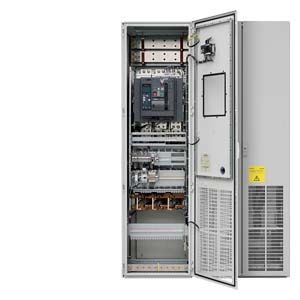

Line Connection Modules (LCM) contain the line-side infeed with main circuit breaker and fuse switch disconnector or circuit breaker and provide the connection between the plant power system and the Line Modules.
Line Connection Modules are available for the following voltages and currents:
Line voltage
Rated infeed/regenerative feedback current
380 ... 480 V 3 AC
250 ... 3200 A
500 ... 690 V 3 AC
280 ... 3200 A
Дизайн
Different versions exist depending on the input current:
- Units ≤ 800 A are equipped with a main switch with a fuse switch disconnector
- Units > 800 A are equipped with a fixed-mounted circuit breaker (draw-out circuit breaker is available as option)
When Line Connection Modules are ordered, the type of Line Module used must be specified:
- For Basic Line Modules: Option L43
- For Smart Line Modules: Option L44
- For Active Line Modules: Option L42
When using a Basic Line Module, a reactor is included in the scope of delivery of the Line Connection Module, and when required, can be deselected (option L22).
For additional information, please refer to the SINAMICS Low Voltage Engineering Manual.
Connection example of a Line Connection Module for units ≤ 800 A to connect to Basic Line Modules, option L43, option main contactor, order code L13
Connection example of a Line Connection Module for units of > 800 A, < 2000 A to connect to the Basic Line Modules, option L43
For input currents ≥ 2000 A, additional options are available:
- Grounding switch upstream of main circuit breaker: Option L46
- Current transformer upstream of main circuit breaker: Option L41
- Grounding switch downstream of main circuit breaker: Option L47
Connection example of a Line Connection Module ≥ 2000 A
When Basic Line Modules that are fed via a common Line Connection Module are connected in parallel, line reactors are generally required. These are installed in the Line Connection Module.
Connection example: Line Connection Module ≥ 2000 A for connection to Basic Line Modules, option L43
Connection example: Line Connection Module ≥ 2000 A for connection to Active Line Modules in parallel connection, option L42
Интеграция
Line Connection Module
Basic Line Module
Smart Line Module
Active Line Module
Rated infeed/regenerative feedback current 1)
Rated input current
Rated infeed/regenerative feedback current
Rated infeed/regenerative feedback current
A
A
A
A
Line voltage 380 ... 480 V 3 AC
250
6SL3700-0LE32-5AA3
–
–
–
–
210
6SL3730-7TE32-1BA3
380
6SL3700-0LE34-0AA3
–
–
–
–
260
6SL3730-7TE32-6BA3
600
6SL3700-0LE36-3AA3
365
6SL3730-1TE34-2AA3
463
6SL3730-6TE35-5AA3
380
6SL3730-7TE33-8BA3
460
6SL3730-1TE35-3AA3
490
6SL3730-7TE35-0BA3
770
6SL3700-0LE38-0AA3
710
6SL3730-1TE38-2AA3
614
6SL3730-6TE37-3AA3
605
6SL3730-7TE36-1BA3
1000
6SL3700-0LE41-0AA3
–
–
883
6SL3730-6TE41-1AA3
840
6SL3730-7TE38-4BA3
1250
6SL3700-0LE41-3AA3
1010
6SL3730-1TE41-2AA3
1093
6SL3730-6TE41-3AA3
985
6SL3730-7TE41-0BA3
1600
6SL3700-0LE41-6AA3
1265
6SL3730-1TE41-5AA3
1430
6SL3730-6TE41-7AA3
1405
6SL3730-7TE41-4BA3
2000
6SL3700-0LE42-0AA3
1630
6SL3730-1TE41-8AA3
–
–
–
–
2000
6SL3700-0LE42-0BA3
2 × 935
6SL3730-1TE41-2BA3
2 × 817
6SL3730-6TE41-1BA3
2 × 936
6SL3730-7TE41-0BA3
6SL3730-1TE41-2BC3
6SL3730-6TE41-1BC3
6SL3730-7TE41-0BC3
2500
6SL3700-0LE42-5BA3
2 × 1170
6SL3730-1TE41-5BA3
2 × 1011
6SL3730-6TE41-3BA3
–
–
6SL3730-1TE41-5BC3
6SL3730-6TE41-3BC3
3200
6SL3700-0LE43-2BA3
2 × 1508
6SL3730-1TE41-8BA3
2 × 1323
6SL3730-6TE41-7BA3
2 × 1335
6SL3730-7TE41-4BA3
6SL3730-1TE41-8BC3
6SL3730-6TE41-7BC3
6SL3730-7TE41-4BC3
Line voltage 500 ... 690 V 3 AC
280
6SL3700-0LG32-8AA3
260
6SL3730-1TG33-0AA3
–
–
–
–
380
6SL3700-0LG34-0AA3
375
6SL3730-1TG34-3AA3
–
–
–
–
600
6SL3700-0LG36-3AA3
575
6SL3730-1TG36-8AA3
463
6SL3730-6TG35-5AA3
575
6SL3730-7TG35-8BA3
770
6SL3700-0LG38-0AA3
–
–
757
6SL3730-6TG38-8AA3
735
6SL3730-7TG37-4BA3
1000
6SL3700-0LG41-0AA3
925
6SL3730-1TG41-1AA3
–
–
–
–
1250
6SL3700-0LG41-3AA3
1180
6SL3730-1TG41-4AA3
1009
6SL3730-6TG41-2AA3
1025
6SL3730-7TG41-0BA3
1600
6SL3700-0LG41-6AA3
1580
6SL3730-1TG41-8AA3
1430
6SL3730-6TG41-7AA3
1270
6SL3730-7TG41-3BA3
2000
6SL3700-0LG42-0BA3
2 × 855
6SL3730-1TG41-1BA3
2 × 700
6SL3730-6TG38-8BA3
2 × 698
6SL3730-7TG37-4BA3
6SL3730-1TG41-1BC3
6SL3730-6TG38-8BC3
6SL3730-7TG37-4BC3
–
–
2 × 934
6SL3730-6TG41-2BA3
2 × 974
6SL3730-7TG41-0BA3
6SL3730-6TG41-2BC3
6SL3730-7TG41-0BC3
2500
6SL3700-0LG42-5BA3
2 × 1092
6SL3730-1TG41-4BA3
–
–
2 × 1206
6SL3730-7TG41-3BA3
6SL3730-1TG41-4BC3
6SL3730-7TG41-3BC3
3200
6SL3700-0LG43-2BA3
2 × 1462
6SL3730-1TG41-8BA3
2 × 1323
6SL3730-6TG41-7BA3
–
–
6SL3730-1TG41-8BC3
6SL3730-6TG41-7BC3
Entries in italics:
Parallel circuit of two Line Modules connected to a Line Connection Module.
The required derating factors listed below are already included in the current values given above:
- 7.5% for Basic Line Modules
- 7.5% for Smart Line Modules
- 5% for Active Line Modules
1) The current values stated are based on an ambient temperature (air intake temperature) of 40 °C.
Технические данные
Line voltage 380 ... 480 V 3 AC
Line Connection Modules
6SL3700-0LE32-5AA3
6SL3700-0LE34-0AA3
6SL3700-0LE36-3AA3
6SL3700-0LE38-0AA3
6SL3700-0LE41-0AA3
6SL3700-0LE41-3AA3
Infeed/regenerative feedback current
- Rated current Irated I
A
250
380
600
770
1000
1250
Current demand
- Fan power supply
230 V AC
A
–
–
–
–
1.07
1.07
- 230 V AC 1)
- Inrush current
A
3.6
3.6
3.6
10.8
0.5
0.5
- Holding current
A
0.04
0.04
0.04
0.12
0.06
0.06
Power loss, max. 2)
- At 50 Hz 400 V
- Option L42/L44
kW
0.115
0.19
0.31
0.39
0.18
0.29
- Option L43
kW
–
–
0.675
0.74
–
0.787
- At 60 Hz 460 V
- Option L42/L44
kW
0.115
0.19
0.31
0.39
0.18
0.29
- Option L43
kW
–
–
0.675
0.74
–
0.787
Cooling air requirement 3)
m3/s
–
–
–
–
0.36
0.36
Sound pressure level LpA
(1 m) at 50/60 Hz
dB
–
–
–
–
68/70
68/70
Line supply connection
L1, L2, L3
2/M12
2/M12
2/M12
2/M12
5/M12 + 4/M16
5/M12 + 4/M16
- Conductor cross section, max. (IEC)
mm2
2 × 150
2 × 150
4 × 240
8 × 240
8 × 240
8 × 240
PE/GND connection
PE bar
PE bar
PE bar
PE bar
PE bar
PE bar
- Busbar cross-section
mm2
600
600
600
600
600
600
- Conductor cross section, max. (IEC)
mm2
240
240
240
240
240
240
Degree of protection
IP20
IP20
IP20
IP20
IP20
IP20
Dimensions
- Width
mm
400
400
600
600
600
600
- Height 4)
mm
2200
2200
2200
2200
2200
2200
- Depth
mm
600
600
600
600
600
600
Weight, approx.
- Option L42/L44
kg
210
230
310
340
450
470
- Option L43
kg
–
–
360
420
–
570
Frame size
FL
FL
GL
HL
JL
JL
Short-circuit current rating according to IEC
kA
50
50
50
50
50
50
Minimum short-circuit current 5)
A
3000
3000
8000
12000
2000
2500
1) Current demand of contactors/circuit breakers and fans with degree of protection IP23, IP43, IP54 (in combination with Basic Line Modules).
2) The specified power loss represents the maximum value at 100% utilization. The value is lower under normal operating conditions.
3) For IP23, IP43 or IP54 degree of protection only (in combination with Basic Line Modules).
4) The cabinet height increases by 250 mm with degree of protection IP21, and by 400 mm with degrees of protection IP23, IP43 and IP54.
5) Current required to ensure reliable tripping of installed protective devices.
Line voltage 380 ... 480 V 3 AC
Line Connection Modules
6SL3700-0LE41-6AA3
6SL3700-0LE42-0AA3
6SL3700-0LE42-0BA3
6SL3700-0LE42-5BA3
6SL3700-0LE43-2BA3
Prepared for connection to Line Modules connected in parallel
Infeed/regenerative feedback current
- Rated current Irated I
A
1600
2000
2000
2500
3200
Current demand
- Fan power supply
230 V AC
A
1.07
2.14
2.14
2.14
2.14
- 230 V AC 1)
- Inrush current
A
0.5
0.5
0.5
0.5
0.5
- Holding current
A
0.06
0.06
0.06
0.06
0.04
Power loss, max. 2)
- At 50 Hz 400 V
- Option L42/L44
kW
0.41
0.6
0.6
0.95
0.95
- Option L43
kW
1.186
1.366
1.594
2.502
2.482
- At 60 Hz 460 V
- Option L42/L44
kW
0.41
0.6
0.6
0.95
0.95
- Option L43
kW
1.186
1.366
1.594
2.502
2.482
Cooling air requirement 3)
m3/s
0.36
0.72
0.72
0.72
0.72
Sound pressure level LpA
(1 m) at 50/60 Hz
dB
68/70
70/72
70/72
70/72
70/72
Line supply connection
L1, L2, L3
5/M12 + 4/M16
5/M12 + 4/M16
5/M12 + 4/M16
5/M12 + 4/M16
5/M12 + 4/M16
- Conductor cross section, max. (IEC)
mm2
8 × 240
10 × 240
10 × 240
10 × 240
10 × 300
PE/GND connection
PE bar
PE bar
PE bar
PE bar
PE bar
- Busbar cross-section
mm2
600
600
600
600
600
- Conductor cross section, max. (IEC)
mm2
240
240
240
240
240
Degree of protection
IP20
IP20
IP20
IP20
IP20
Dimensions
- Width
mm
600
1000
1000
1000
1000
- Height 4)
mm
2200
2200
2200
2200
2200
- Depth
mm
600
600
600
600
600
Weight, approx.
- Option L42/L44
kg
490
600
620
620
720
- Option L43
kg
650
760
820
900
1000
Frame size
JL
KL
KL
KL
LL
Short-circuit current rating according to IEC
kA
100
100
100
100
100
Minimum short-circuit current 5)
A
3200
4000
4000
5000
6400
1) Current demand of contactors/circuit breakers and fans with degree of protection IP23, IP43, IP54 (in combination with Basic Line Modules).
2) The specified power loss represents the maximum value at 100% utilization. The value is lower under normal operating conditions.
3) For IP23, IP43 or IP54 degree of protection only (in combination with Basic Line Modules).
4) The cabinet height increases by 250 mm with degree of protection IP21, and by 400 mm with degrees of protection IP23, IP43 and IP54.
5) Current required to ensure reliable tripping of installed protective devices.
Line voltage 500 ... 690 V 3 AC
Line Connection Modules
6SL3700-0LG32-8AA3
6SL3700-0LG34-0AA3
6SL3700-0LG36-3AA3
6SL3700-0LG38-0AA3
6SL3700-0LG41-0AA3
Infeed/regenerative feedback current
- Rated current Irated I
A
280
380
600
770
1000
Current demand
- Fan power supply
230 V AC
A
–
–
–
–
1.07
- 230 V AC 1)
- Inrush current
A
3.6
3.6
3.6
10.8
0.5
- Holding current
A
0.04
0.04
0.04
0.12
0.06
Power loss, max. 2)
- At 50 Hz 500/690 V
- Option L42/L44
kW
0.125
0.19
0.31
0.39
0.18
- Option L43
kW
0.402
0.668
0.794
–
0.963
- At 60 Hz 575 V
- Option L42/L44
kW
0.125
0.19
0.31
0.39
0.18
- Option L43
kW
0.402
0.668
0.794
–
0.963
Cooling air requirement 3)
m3/s
–
–
–
–
0.36
Sound pressure level LpA
(1 m) at 50/60 Hz
dB
–
–
–
–
68/70
Line supply connection
L1, L2, L3
2/M12
2/M12
2/M12
2/M12
5/M12 + 4/M16
- Conductor cross section, max. (IEC)
mm2
2 × 150
2 × 150
4 × 240
8 × 240
8 × 240
PE/GND connection
PE bar
PE bar
PE bar
PE bar
PE bar
- Busbar cross-section
mm2
600
600
600
600
600
- Conductor cross section, max. (IEC)
mm2
240
240
240
240
240
Degree of protection
IP20
IP20
IP20
IP20
IP20
Dimensions
- Width
mm
400
600
600
600
600
- Height 4)
mm
2200
2200
2200
2200
2200
- Depth
mm
600
600
600
600
600
Weight, approx.
- Option L42/L44
kg
220
230
310
340
450
- Option L43
kg
260
310
400
–
650
Frame size
FL
FL
GL
HL
JL
Short-circuit current rating according to IEC
kA
50
50
50
50
85
Minimum short-circuit current 5)
A
3200
3500
9000
15000
2000
1) Current demand of contactors/circuit breakers and fans with degree of protection IP23, IP43, IP54 (in combination with Basic Line Modules).
2) The specified power loss represents the maximum value at 100% utilization. The value is lower under normal operating conditions.
3) For IP23, IP43 or IP54 degree of protection only (in combination with Basic Line Modules).
4) The cabinet height increases by 250 mm with degree of protection IP21, and by 400 mm with degrees of protection IP23, IP43 and IP54.
5) Current required to ensure reliable tripping of installed protective devices.
Line voltage 500 ... 690 V 3 AC
Line Connection Modules
6SL3700-0LG41-3AA3
6SL3700-0LG41-6AA3
6SL3700-0LG42-0BA3
6SL3700-0LG42-5BA3
6SL3700-0LG43-2BA3
Prepared for connection to Line Modules connected in parallel
Infeed/regenerative feedback current
- Rated current Irated I
A
1250
1600
2000
2500
3200
Current demand
- Fan power supply
230 V AC
A
1.07
1.07
2.14
2.14
2.14
- 230 V AC 1)
- Inrush current
A
0.5
0.5
0.5
0.5
0.5
- Holding current
A
0.06
0.06
0.06
0.06
0.06
Power loss, max. 2)
- At 50 Hz 500/690 V
- Option L42/L44
kW
0.29
0.41
0.6
0.6
0.95
- Option L43
kW
1.073
1.387
2.166
2.166
2.894
- At 60 Hz 575 V
- Option L42/L44
kW
0.29
0.41
0.6
0.6
0.95
- Option L43
kW
1.073
1.387
2.166
2.166
2.894
Cooling air requirement 3)
m3/s
0.36
0.36
0.72
0.72
0.72
Sound pressure level LpA
(1 m) at 50/60 Hz
dB
68/70
68/70
70/72
70/72
70/72
Line supply connection
L1, L2, L3
5/M12 + 4/M16
5/M12 + 4/M16
5/M12 + 4/M16
5/M12 + 4/M16
5/M12 + 4/M16
- Conductor cross section, max. (IEC)
mm2
8 × 240
8 × 240
10 × 240
10 × 240
10 × 300
PE/GND connection
PE bar
PE bar
PE bar
PE bar
PE bar
- Busbar cross-section
mm2
600
600
600
600
600
- Conductor cross section, max. (IEC)
mm2
240
240
240
240
240
Degree of protection
IP20
IP20
IP20
IP20
IP20
Dimensions
- Width
mm
600
600
1000
1000
1000
- Height 4)
mm
2200
2200
2200
2200
2200
- Depth
mm
600
600
600
600
600
Weight, approx.
- Option L42/L44
kg
470
490
600
620
720
- Option L43
kg
670
680
980
1000
1080
Frame size
JL
JL
KL
KL
LL
Short-circuit current rating according to IEC
kA
85
85
85
85
85
Minimum short-circuit current 5)
A
2500
3200
4000
5000
6400
1) Current demand of contactors/circuit breakers and fans with degree of protection IP23, IP43, IP54 (in combination with Basic Line Modules).
2) The specified power loss represents the maximum value at 100% utilization. The value is lower under normal operating conditions.
3) For IP23, IP43 or IP54 degree of protection only (in combination with Basic Line Modules).
4) The cabinet height increases by 250 mm with degree of protection IP21, and by 400 mm with degrees of protection IP23, IP43 and IP54.
5) Current required to ensure reliable tripping of installed protective devices.
