Контроль коэффициента мощности и активного тока

• Заказные данные
  (2)
• Информационные материалы

  Информационные материалы

  Реле коэфициента мощности и активного тока 3UG48 41 дает возможность контроля нагрузки двигателей..

  Контроль коэффициента мощности используется для контроля сброса нагрузки, в то время как с опцией контроля активного тока они позволяют видеть и оценивать характеристику нагрузки во всем диапазоне моментов.

  Область применения

  • Контроль сброса нагрузки, как например, обрыв ремня
  • Контроль работы под  малой нагрузкой даже в очень низком диапазоне, например, "сухой" работы насоса
  • Контроль перегрузки, например, с загрязненным фильтром вентилятора
  • Контроль коэффициента мощности, например, для целей компенсации
  • Контроль обрыва кабеля к мотору

  Особенности

  • Контроль даже маломощных двигателей, чей холостой ток менее 0.5 A
  • Простое определение диапазона величин
  • Позволяет осуществить контроль обрыва кабеля как и выпадение фаз
  • Можно выбрать принцип измерения коэффициент мощности и/или/вместе с активным током
  • Ширина 22.5 мм
  • Отображение значений и передача значений и состояния на контроллер
  • Все версии со съемными клеммниками
  • Все версии возможны с обоими типами клеммника - пружинными и винтовыми


  Технические данные

  3UG4841 monitoring relays

  3UG4841 monitoring relays are supplied with power through IO-Link or with an external auxiliary voltage of 24 V DC and are used for performing overshoot, undershoot or range monitoring of the power factor and/or the resulting active current, depending on parameterization. The load to be monitored is connected upstream of the IN terminal. The load current flows over the terminals IN and Ly/N. The setting range for the power factor is 0 to 0.99 and for the active current I_res it is 0.2 to 10 A. If the control supply voltage is switched on and no load current flows, the display will show I < 0.2 and a symbol for overrange, underrange or range monitoring. If the motor is now switched on and the current exceeds 0.2 A, the set ON-delay time onDel begins. During this time, if the set limit values are undershot or exceeded, this does not lead to a relay reaction of the changeover contact. If the operational flowing active current and/or the p.f. value falls below or exceeds the respective set threshold value, the tripping delay time begins. When this time has expired, the relay changes its switch position. The relevant measured variables for overshooting and undershooting in the display flash. If monitoring for active current undershoot is switched off (I_res▼= OFF), and if the load current undershoots the lower measuring range threshold (0.2 A), the CO contacts remain unchanged. If a threshold value is set for the monitoring of active current undershooting, then undershooting of the measuring range threshold (0.2 A) will result in a response of the CO contacts.

  The relay operates either according to the open-circuit or closed-circuit principle.

  If the device is set to Auto RESET (Memory = No), depending on the set principle of operation, the switching relay returns to its initial state and the flashing ends when the hysteresis threshold is reached.

  If Manual RESET is selected in the menu (Memory = Yes), the switching relay remains in its current switching state and the current measured value and the symbol for undershooting and overshooting continues to flash, even when the measured variable reaches a permissible value again. This stored fault status can be reset by simultaneously pressing the UP▲ and DOWN▼ keys for 2.5 s.

  With Manual RESET through IO-Link it is possible in addition to set whether error signals are to be deleted when the control supply voltage is switched off and on (as remote RESET) or whether the signals are to be permanently saved even in a voltage failure, with confirmation possible only through local RESET or via IO-Link.

  With the closed-circuit principle selected

  Response in the event of undershooting the measuring range limit

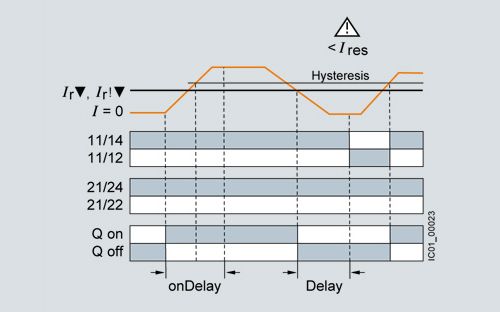

  • With activated monitoring of I_res▼

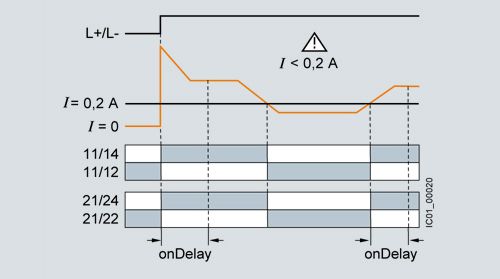

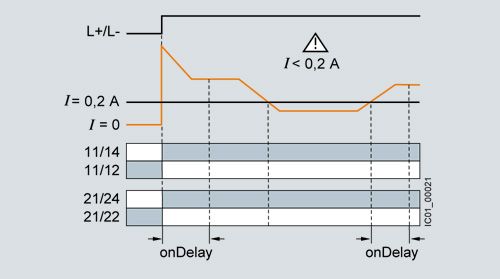

  • With deactivated monitoring of active current undershooting

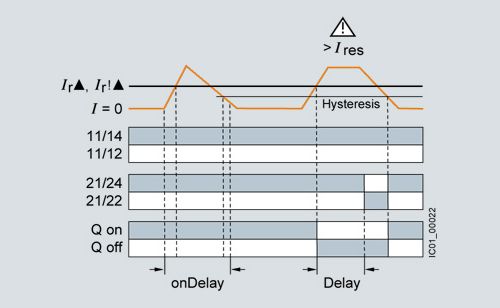

  Overshooting of active current



  Undershooting of active current

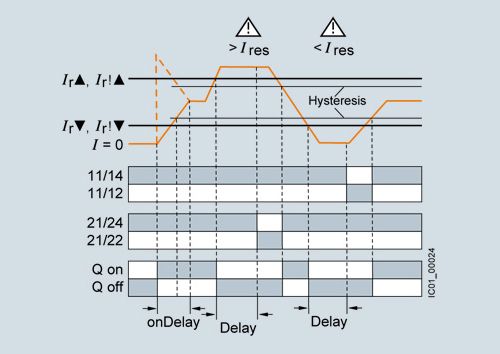

  Range monitoring of active current

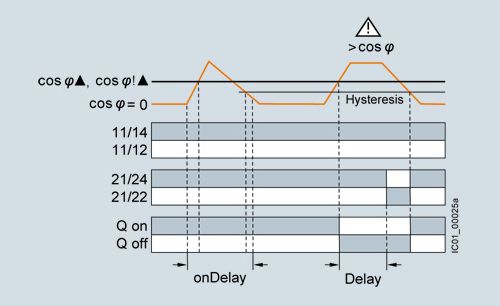

  Overshooting of power factor

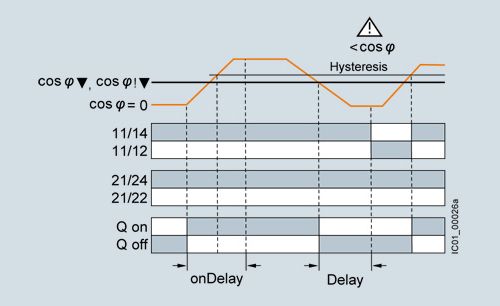

  Undershooting of power factor

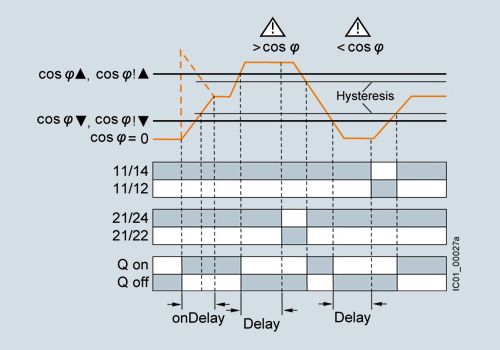

  Range monitoring of power factor



  Дальнейшая информация

  4NC current transformers can be used as accessories in the case of active alternating currents I_res > 10 A. See "​Energy -> Electrical Power Distribution → Low-Voltage Components → SENTRON Protection, Switching, Measuring and Monitoring Devices → Measuring Devices and Power Monitoring → Measuring Devices → Accessories -> 4NC Current Transformers for Measuring Purposes".
