  Реле контролирует однофазные токи переменный (действующее значение)  и постоянный по превышению и снижению за пределы установленных значений.

  Область применения

  • Контроль превышения или понижения тока
  • Контроль функционирования нагрузки
  • Контроль обрыва проводников

  Особенности

  • Настраивается для контроля превышения, понижения или нахождения в пределах
  • Настраиваемые времена срабатывания и установка сброса
  • Ширина 22.5 мм
  • Отображение значений и передача значений и состояния на контроллер
  • Все версии со съемными клеммниками
  • Все версии возможны с обоими типами клеммника - пружинными и винтовыми


  Технические данные

  3UG4822 monitoring relays

  The 3UG4822 current monitoring relays are supplied with power through IO-Link or with an external voltage of 24 V DC and perform overshoot, undershoot or range monitoring of the current depending on the parameterization. The devices are equipped with a display and are parameterized using three buttons.

  The measuring range extends from 0.05 to 10 A. For larger AC currents the measuring range can be extended by using commercially available current transformers. Using the adjustable transformer factor, the display of the measured primary currents up to 750 A instead of the secondary currents (max. 1 A or 5 A) is possible.

  The rms value of the current is measured. The limit values for overshoot or undershoot can be freely configured within this range. If one of these limit values is reached, the output relay responds according to the set principle of operation as soon as the tripping delay time I▲Del/I▼Del has elapsed. This time and the ON-delay time onDel are adjustable from 0 to 999.9 s.

  The hysteresis is adjustable from 0.01 to 5 A. The device can be operated with Manual or Auto RESET and on the basis of either the open-circuit or closed-circuit principle. You can decide here whether the output relay is to respond when the supply voltage U_s = ON is applied, or not until the lower measuring range limit of the measuring current (I > 50 mA) is reached. One output changeover contact is available as a signaling contact, and a semiconductor output is available in addition in SIO mode.

  If Manual RESET is selected in the menu (Memory = Yes), the switching relay remains in its current switching state and the current measured value and the symbol for undershooting and overshooting continues to flash, even when the measured variable reaches a permissible value again. This stored fault status can be reset by simultaneously pressing the UP▲ and DOWN▼ keys for 2.5 s.

  With Manual RESET through IO-Link it is possible in addition to set whether error signals are to be deleted when the control supply voltage is switched off and on (as remote RESET) or whether the signals are to be permanently saved even in a voltage failure, with confirmation possible only through local RESET or via IO-Link.

  With the closed-circuit principle selected upon application of the control supply voltage

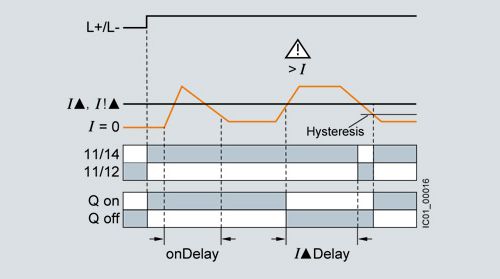

  Current overshoot

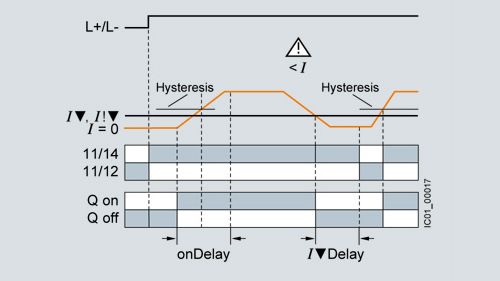

  Current undershoot

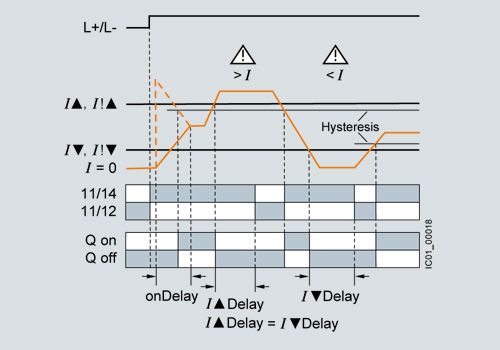

  Range monitoring



  Дальнейшая информация

  4NC current transformers can be used as accessories in the case of alternating currents I > 10 A. See "​Energy -> Electrical Power Distribution → Low-Voltage Components → SENTRON Protection, Switching, Measuring and Monitoring Devices → Measuring Devices and Power Monitoring → Measuring Devices → Accessories -> 4NC Current Transformers for Measuring Purposes".
