SITRANS LR250 Hygienic Encapsulated Antenna

Заказные данные
(1)
Аксессуары
(48)

The SITRANS LR250 Hygienic Encapsulated Antenna is a 2-wire 25GHz pulse radar level transmitter with sanitary and hygienic approvals for continuous monitoring of liquids, slurries, and pastes within the food, beverage, chemical, and pharmaceutical industries to a range of 20 m (66 ft) (antenna dependent).

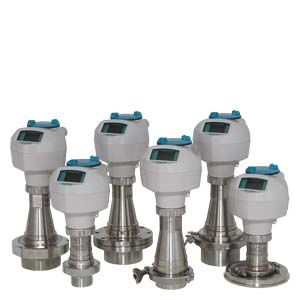

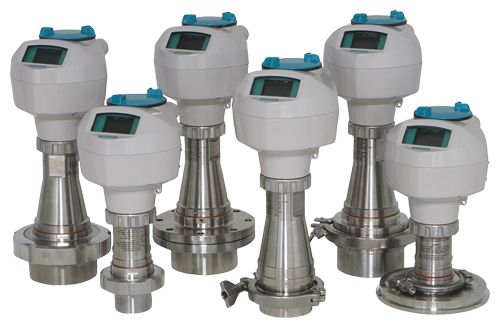

Picture shown with accessories sold separately.

Область применения

SITRANS LR250 includes a graphical local user interface (LUI) that improves set-up and operation by including an intuitive Quick Start Wizard, and echo profile displays for diagnostic support. Startup is easy using the Quick Start wizard with few parameters required for basic operation.

The 25 GHz frequency creates a narrow, focused beam allowing for smaller antenna options and decreasing sensitivity to obstructions.

SITRANS LR250’s unique design allows safe and simple programming using the Intrinsically Safe handheld programmer without having to open the instrument’s lid.

SITRANS LR250 measures superbly in small vessels and in tanks/vessels up to 20 m (66 ft) on materials with dk > 1.6.

Key Applications: applications within the food, beverage, chemical and pharmaceutical industries where sanitary, aseptic, or hygienic approvals are required or easy install/clean flush antennas are preferable, such as ice cream, fruit juice, milk, beer, and pharmaceutical or chemical additives and ingredients.

Характеристика

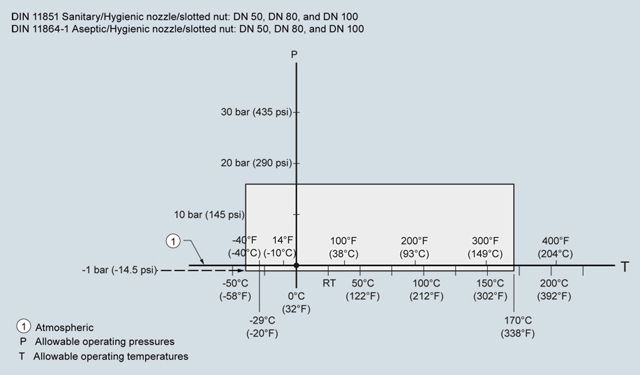

SITRANS LR250 Hygienic Encapsulated Antenna, allowable operating temperatures and pressures, DIN 11851 Sanitary/Hygienic nozzle/slotted nut: DN 50, DN 80, and DN 100

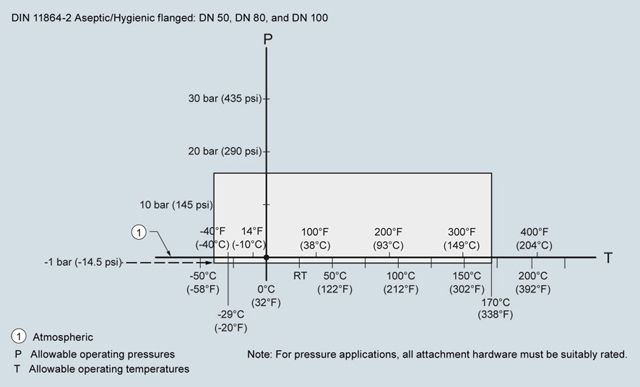

SITRANS LR250, Hygienic Encapsulated Antenna, allowable pressures and temperatures, DIN 11864-2 Aseptic/Hygienic flanged: DN 50, DN 80, and DN 100

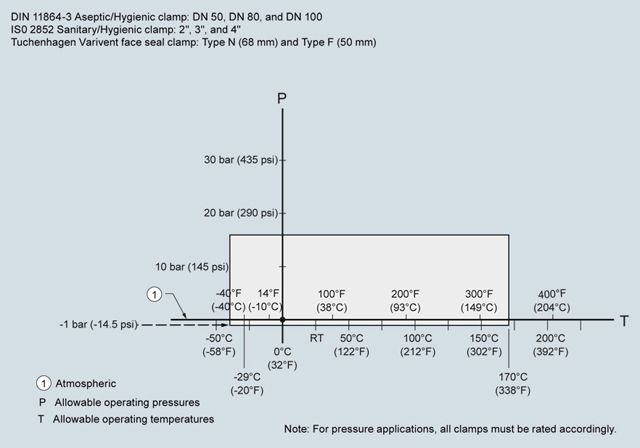

SITRANS LR250 Hygienic Encapsulated Antenna, allowable pressures and temperatures, DIN 11864-3 Aseptic/Hygienic clamp: DN 50, DN 80, and DN 100

Конфигурация

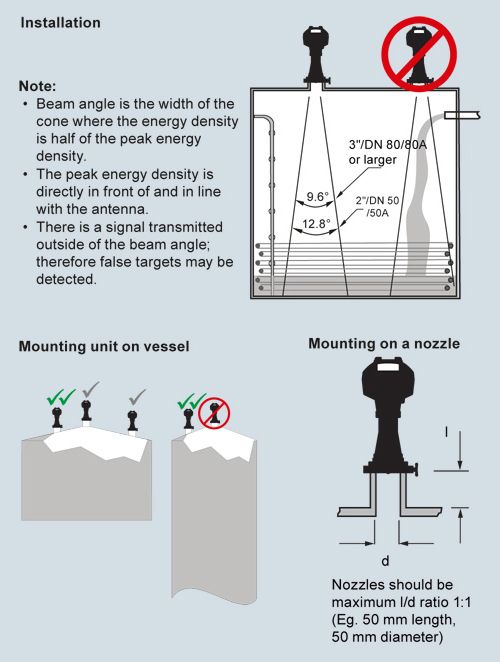

LR250 Hygienic Encapsulated Antenna, dimensions in mm (inch)

Чертеж

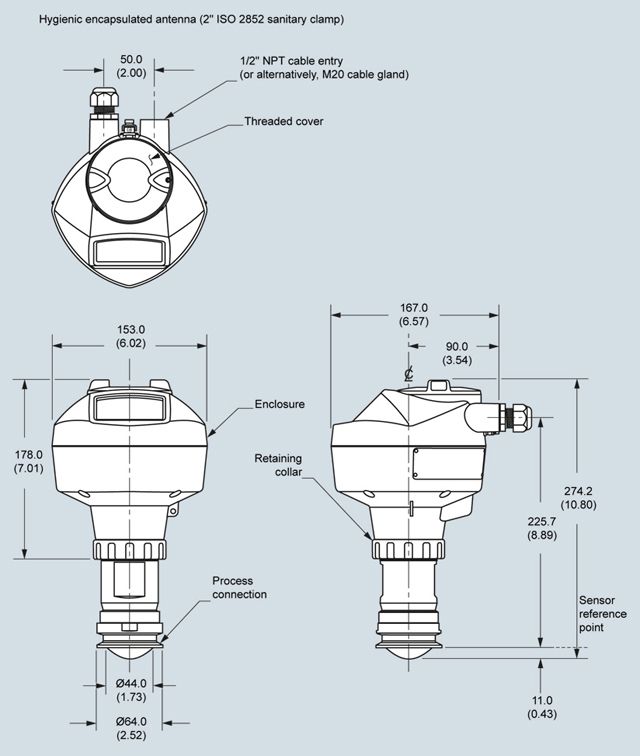

SITRANS LR250 Hygienic Encapsulated Antenna (2" ISO 2852 sanitary clamp), dimensions in mm (inch)

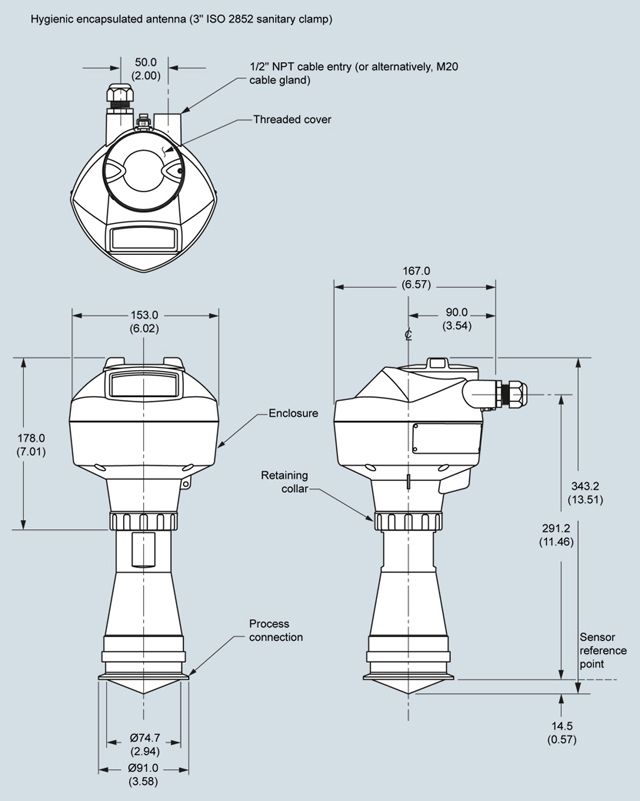

SITRANS LR250 Hygienic Encapsulated Antenna (3" ISO 2852 sanitary clamp), dimensions in mm (inch)

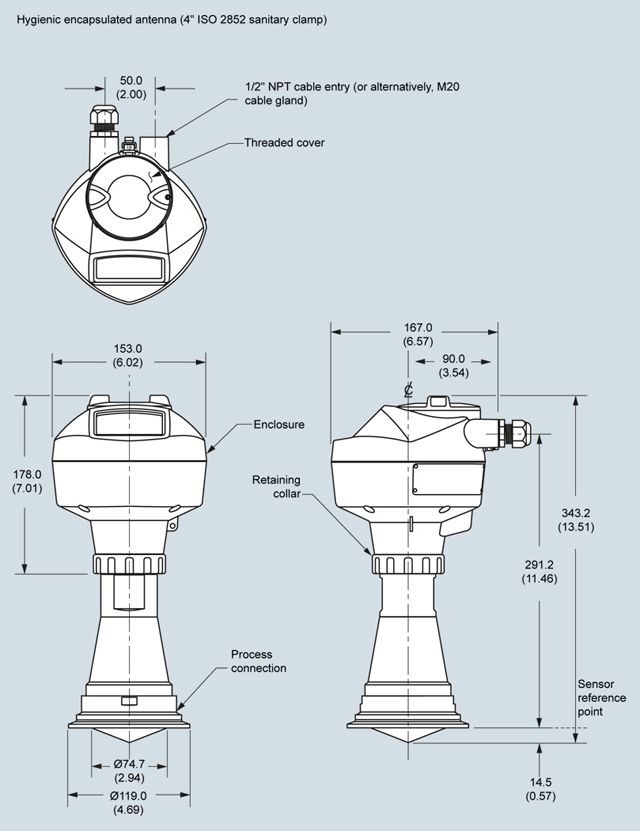

SITRANS LR250 Hygienic Encapsulated Antenna (4" ISO 2852 sanitary clamp), dimensions in mm (inch)

SITRANS LR250 Hygienic Encapsulated Antenna (DN 50 nozzle/slotted nut to DIN 11851), dimensions in mm (inch)

SITRANS LR250 Hygienic Encapsulated Antenna (DN 80 nozzle/slotted nut to DIN 11851), dimensions in mm (inch)

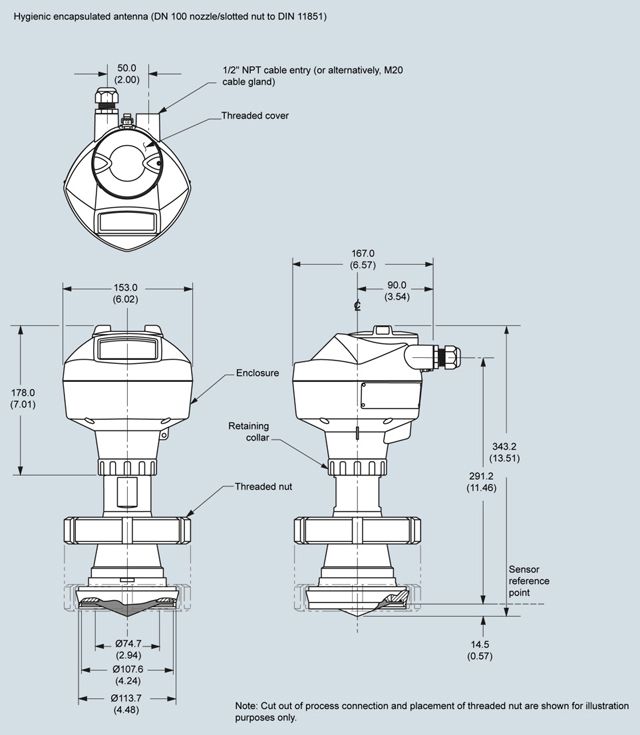

SITRANS LR250 Hygienic Encapsulated Antenna (DN 100 nozzle/slotted nut to DIN 11851), dimensions in mm (inch)

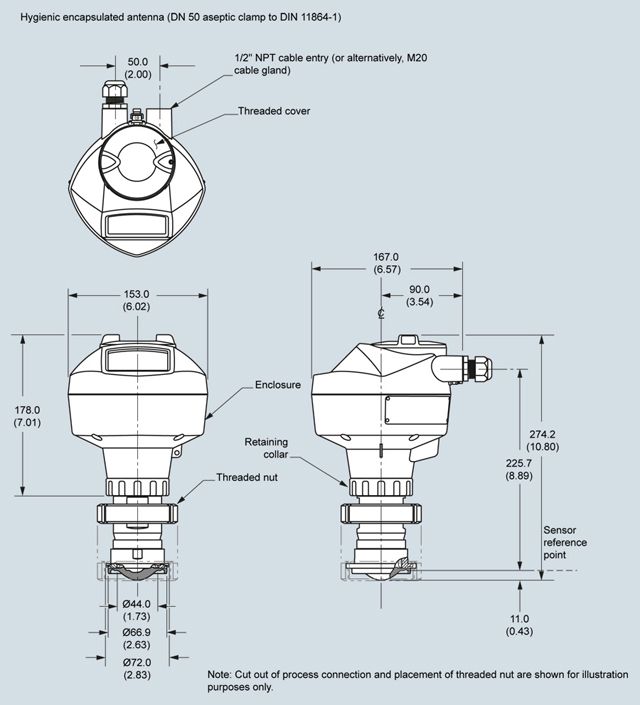

SITRANS LR250 Hygienic Encapsulated Antenna (DN 50 aseptic clamp to DIN 11864-1), dimensions in mm (inch)

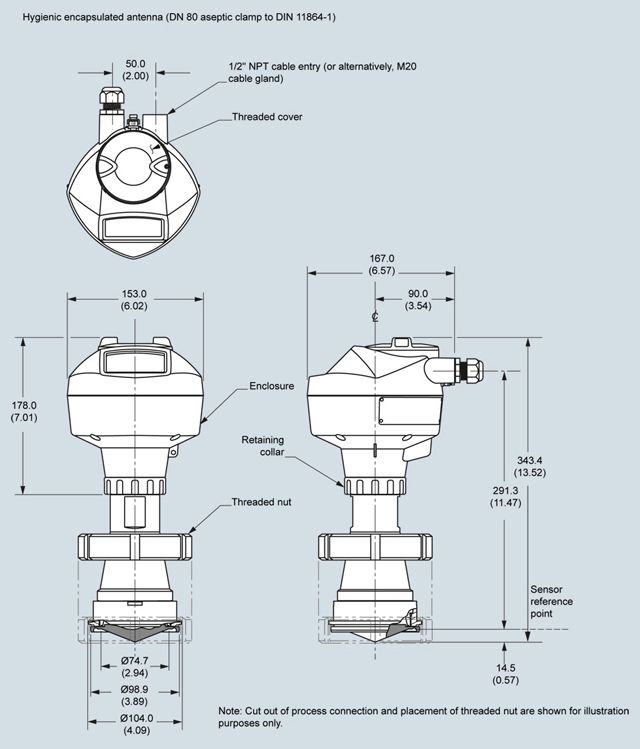

SITRANS LR250 Hygienic Encapsulated Antenna (DN 80 aseptic clamp to DIN 11864-1), dimensions in mm (inch)

SITRANS LR250 Hygienic Encapsulated Antenna (DN 100 aseptic clamp to DIN 11864-1), dimensions in mm (inch)

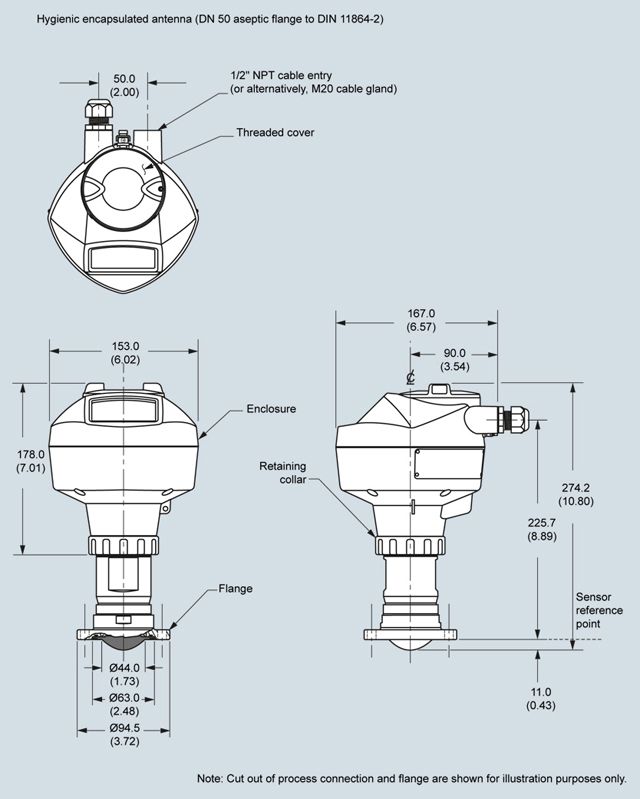

SITRANS LR250 Hygienic Encapsulated Antenna (DN 50 aseptic flange to DIN 11864-2), dimensions in mm (inch)

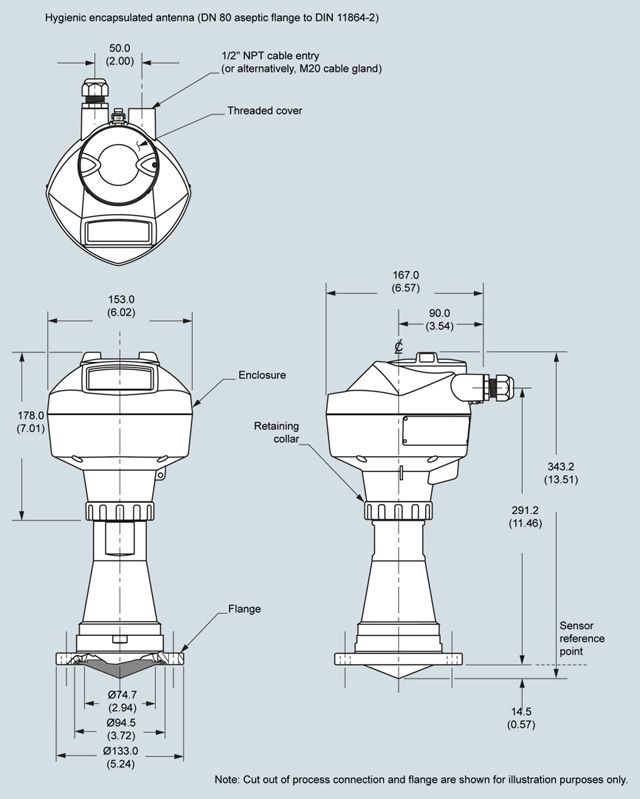

SITRANS LR250 Hygienic Encapsulated Antenna (DN 80 aseptic flange to DIN 11864-2), dimensions in mm (inch)

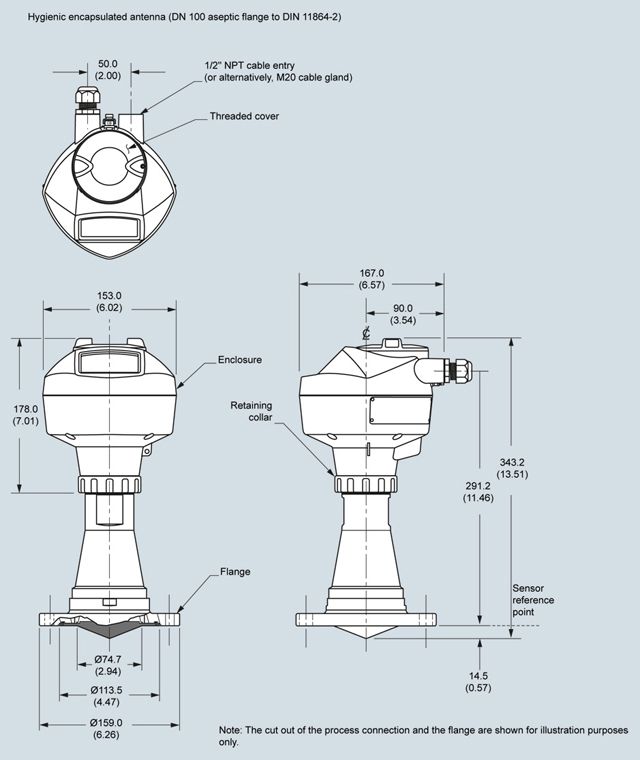

SITRANS LR250 Hygienic Encapsulated Antenna (DN 100 aseptic flange to DIN 11864-2), dimensions in mm (inch)

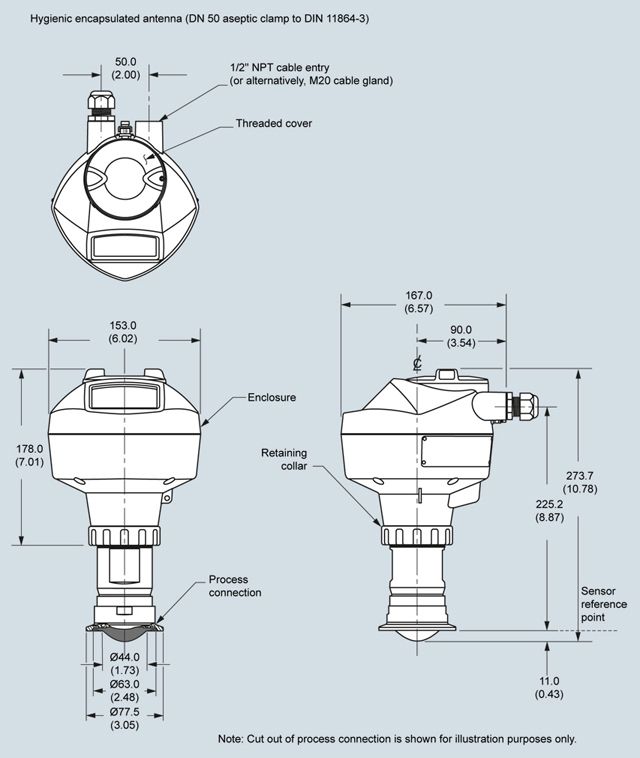

SITRANS LR250 Hygienic Encapsulated Antenna (DN 50 aseptic clamp to DIN 11864-3), dimensions in mm (inch)

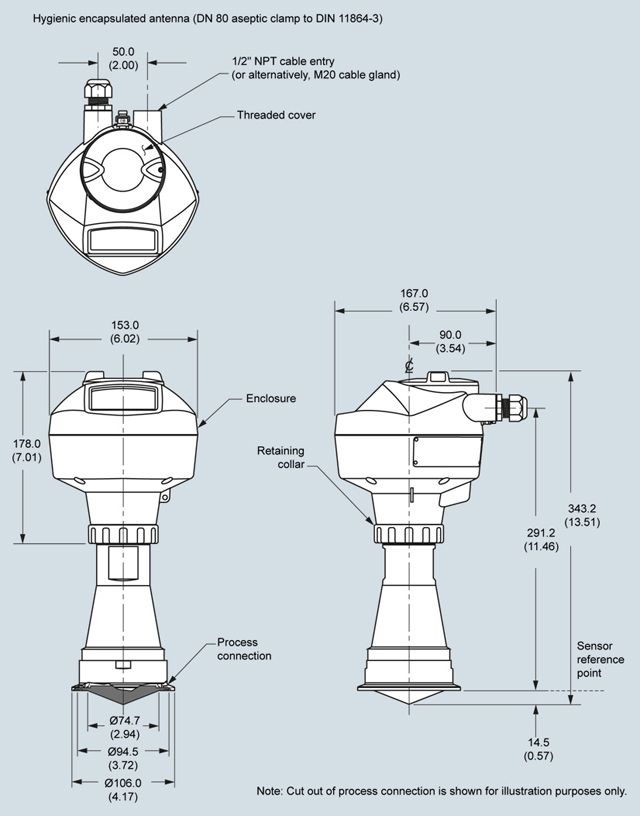

SITRANS LR250 Hygienic Encapsulated Antenna (DN 80 aseptic clamp to DIN 11864-3), dimensions in mm (inch)

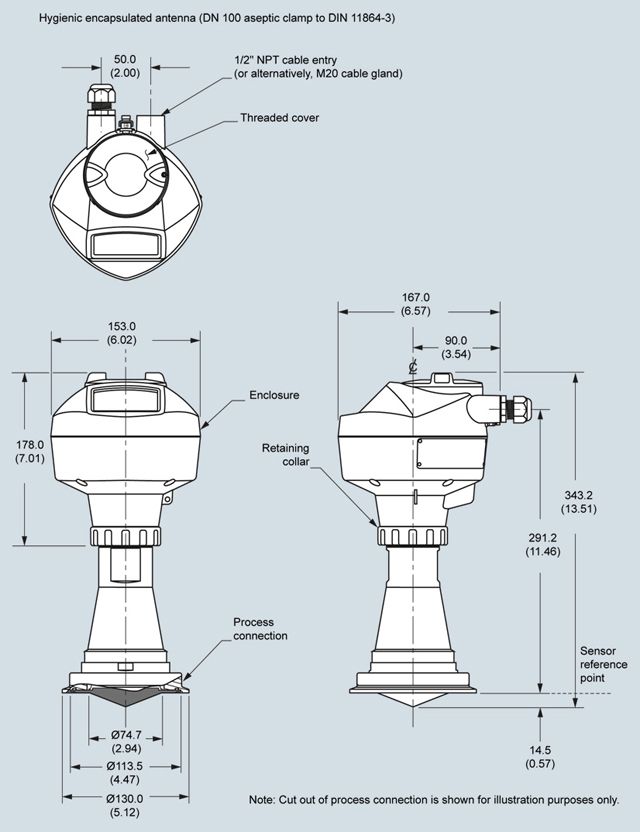

SITRANS LR250 Hygienic Encapsulated Antenna (DN 100 aseptic clamp to DIN 11864-3), dimensions in mm (inch)

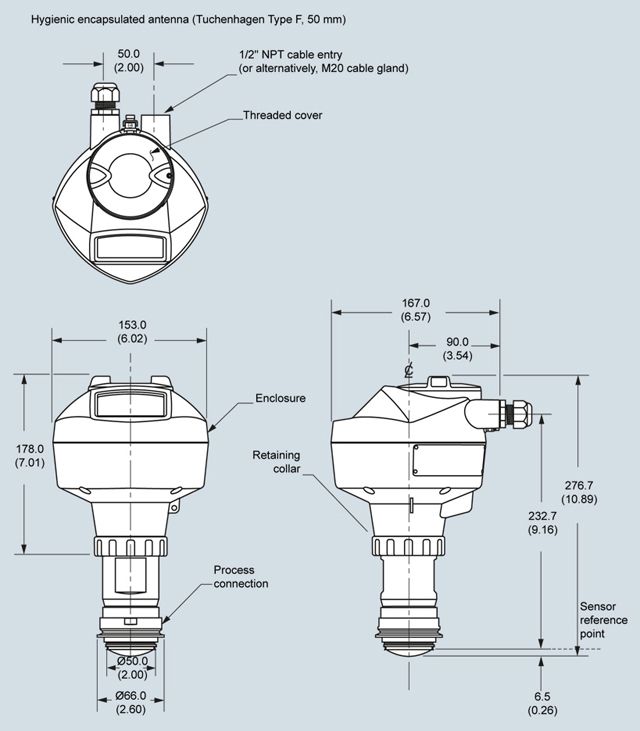

SITRANS LR250 Hygienic Encapsulated Antenna (Tuchenhagen Type F), dimensions in mm (inch)

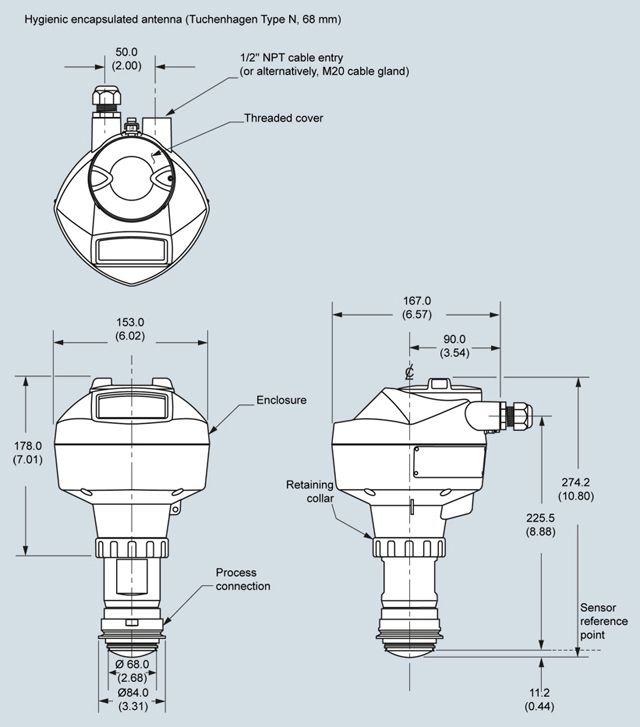

SITRANS LR250 Hygienic Encapsulated Antenna (Tuchenhagen Type N), dimensions in mm (inch)

Особенности

Fully encapsulated horn antenna design with FDA approved and USP Class VI compliant, TFM 1600 PTFE lens
< 0.8 μ Ra surface finish for maximum cleanability and hygiene requirements commonly required in sanitary environments
Chemically resistant TFM 1600 PTFE lens is also suitable for aggressive or corrosive materials
Approved device in accordance with 3-A, EHEDG EL Class I and/or EHEDG EL Aseptic Class I
Cost effective replacement for transmitters made of exotic materials
Graphical local user interface (LUI) makes operation simple with plug-and-play set-up using the intuitive Quick Start Wizard
Industry standard process connections including ISO 2852, DIN 11851, DIN 11864-1, DIN 11864-2, DIN 11864-3, and Tuchenhagen Varivent Type F and N
LUI displays echo profiles for diagnostic support
25 GHz high frequency and 2 inch (50 mm) process connection/antenna allow for easy mounting
Insensitive to mounting location and obstructions, and less sensitive to nozzle interference
Communication using HART, PROFIBUS PA, or FOUNDATION Fieldbus
Process Intelligence signal processing for improved measurement reliability and Auto False-Echo Suppression of fixed obstructions
Programming using infrared Intrinsically Safe handheld programmer or over a network using SIMATIC PDM, Emerson AMS, or Field Device Tools, such as PACTware or Fieldcare via SITRANS DTM.
Functional Safety (SIL 2). Device suitable for use in accordance with IEC 61508 and IEC 61511

Схема подключения

SITRANS LR250 connections

Технические данные

Mode of Operation
Measuring principle	Radar level measurement
Frequency	K-band (25.0 GHz)
Minimum measuring range	50 mm (2 inch) from end of antenna
Maximum measuring range	20 m (66 ft)
Output
HART	Version 5.1
Analog output	4 ... 20 mA
Accuracy	± 0.02 mA
Fail-safe	Programmable as high low or hold (loss of echo) NE 43 programmable
PROFIBUS PA	Profile 3.01
Function blocks	2 Analog Input (AI)
FOUNDATION Fieldbus	H1
Functionality	Basic or LAS
Version	ITK 5.2.0
Function blocks	2 Analog Input (AI)
Performance (according to reference conditions IEC60770-1)
Maximum measured error	> 500 mm from sensor reference point: 3 mm (0.118 inch) < 500 mm from sensor reference point: 25 mm (1 inch)
Influence of ambient temperature	< 0.003 %/K
Rated operating conditions
Installation conditions
Location	Indoor/outdoor
Ambient conditions (enclosure)
Ambient temperature	-40 ... +80 °C (-40 ... +176 °F)
Installation category	I
Pollution degree	4
Medium conditions
Dielectric constant ε_r	≥ 1.6 (antenna dependent)
Process temperature	-40 ... +170 °C (-40 ... +338 °F) at process connection
Process pressure	See Pressure/Temperature curves for more information
Design
Enclosure
Material	Aluminum, polyester powder coated
Cable inlet	2 x M20 x 1.5 or 2 x ½" NPT
Degree of protection	Type 4X/NEMA 4X, Type 6/NEMA 6, IP67, IP68
Weight (dependent on process connection)	Approx. 4.7 kg (10.4 lb) for 2" ISO 2852 (smallest size) Approx. 7.9 kg (17.4 lb) for DN 100 DIN 11864-2 (largest size)
Display (local)	Graphic local user interface including quick start wizard and echo profile display
Antenna
Material	Stainless steel 316L (1.4435 or 1.4404) and TFM 1600 PTFE Lens (lens is the only wetted part)
Lens surface finish (R_a)	0.8 μm
Process connections
Hygienic/Sanitary connections	2", 3" & 4" Sanitary Clamp according to ISO 2852 DN 50, DN 80 & DN 100 Aseptic/Hygienic threaded to DIN 11864-1 [Form A] DN 50, DN 80 & DN 100 Aseptic/Hygienic flanged to DIN 11864-2 [Form A] DN 50, DN 80 & DN 100 Aseptic/Hygienic Clamp according to DIN 11864-3 [Form A] DN 50, DN 80 & DN 100 Hygienic Union according to DIN 11851 Type F (50 mm) & Type N (68 mm) Tuchenhagen Varivent
Power supply
4 ... 20 mA/HART	Nominal 24 V DC (max. 30 V DC) with max. 550 Ω
PROFIBUS PA	15 mA Per IEC 61158-2
FOUNDATION Fieldbus	20.0 mA Per IEC 61158-2
Certificates and approvals
General	CSA_US/C, CE, FM, NE 21, RCM
Radio	FCC, Industry Canada and Europe ETSI EN 302-372, RCM
Hazardous
Explosion Proof (Brazil)	INMETRO Ex d ia mb IIC T4 Ga/Gb, Ex ia ta IIIC T100 °C Da
Increased Safety (Brazil)	INMETRO Ex e ia mb IIC T4 Ga/Gb, Ex ia ta IIIC T100 °C Da
Intrinsically Safe (Brazil)	INMETRO Ex ia IIC T4 Ga, Ex ia ta IIIC T100 °C Da
Explosion Proof (Canada/USA)	CSA/FM Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III T4
Intrinsically Safe (Canada/USA)	CSA/FM Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III T4
Non-incendive (Canada/USA)	CSA/FM Class I, Div. 2, Groups A, B, C, D T5
Flame Proof/Increased Safety (China)	NEPSI Ex d ia mb IIC T4 Ga/Gb, Ex e ia mb IIC T4 Ga/Gb, Ex iaD tD A20 IP67 T100 ºC
Intrinsically Safe (China)	NEPSI Ex ia IIC T4 Ga, Ex iaD tD A20 IP67 T100 ºC
Non-sparking (China)	NEPSI Ex nA IIC T4 Gc
Intrinsically Safe (Europe)	ATEX II 1G Ex ia IIC T4 Ga ATEX II 1D Ex ia ta IIIC T100 °C Da
Non-sparking (Europe)	ATEX II 3G Ex nA IIC T4 Gc
Flame Proof (International/Europe)	IECEx/ATEX II 1/2 GD, 1D, 2D Ex d mb ia IIC T4 Ga/Gb, Ex ia ta IIC T100 °C Da
Increased Safety (International/Europe)	IECEx/ATEX II 1/2 GD, 1D, 2D, Ex e mb ia IIC T4 Ga/Gb, Ex ia ta IIIC T100 °C Da
Intrinsically Safe (International)	IECEx/ATEX II 1 G Ex ia IIC T4 Ga, IECEX/ATEX II 1D Ex ia ta IIIC T100 °C Da
Explosion Proof (Russia/Kazakhstan)	EAC Ex d
Increased Safety (Russia/Kazakhstan)	EAC Ex e
Intrinsically Safe (Russia/Kazakhstan)	EAC Ex ia
Hygienic/Sanitary	EHEDG EL Class I EHEDG EL Aseptic Class I
Programming
Intrinsically Safe Siemens handheld programmer	Infrared receiver
Approvals for handheld programmer	IS model: ATEX II 1 GD Ex ia IIC T4 Ga Ex ia D 20 T135 °C Ta = -20 ... +50 °C CSA/FM Class I, II, III, Div. 1, Groups A, B, C, D, E, F, G, T6 T_a = 50 °C IECEx SIR 09.0073
Handheld communicator	HART communicator 375/475
PC	SIMATIC PDM Emerson AMS SITRANS DTM (for connection into FDT, such as PACTware or Fieldcare)
Display (local)	Graphic local user interface including quick start wizard and echo profile displays
