  SIPLUS HCS724I heater controller

  The SIPLUS HCS724I heater control system controls and switches heat emitter arrays and other resistive loads of medium to high output in the industrial environment.

  The connection is made using PROFIBUS DP and provides, together with the SIMATIC S7, for example, a highly-modern and powerful automation system. As an option, a line-voltage sensing submodule can be integrated in order to compensate automatically and internally for variations in the line voltage.

  Область применения

  The SIPLUS HCS724I heater control system is used, for example, to control heat emitter arrays in:

  • thermoforming machines
  • blow molding machines
  • plastics welding machines
  • drying ovens

  Дизайн

  The main components of the SIPLUS HCS724I heater control system are:

  • Central interface module
  • LA724I/LA724I HP/LA724I SSR power output modules: Up to 16 power output modules can be connected via the central interface module.
  • Line-voltage sensing submodule (option)
  • Fan module (option)
  • Current measuring module (option)
  • Communication over PROFIBUS DP, e.g. with SIMOTION, SIMATIC S7, or industrial PC

  The central interface module and the LA724I/LA724I HP/LA724I SSR power output modules are installed in a metal enclosure and mounted on a plate in the control cabinet.

  Customized, distributed solutions are also possible.

  Интеграция

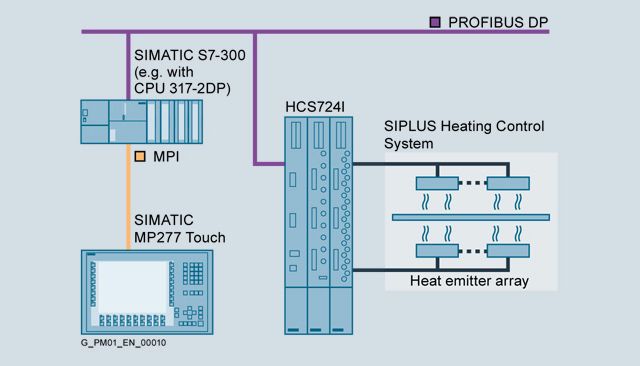

  Application example with SIMOTION, SINAMICS, and SIPLUS HCS724I

  Особенности

  • Time is saved due to easy adaptation to the production process
  • Excellent product quality thanks to integrated line voltage compensation

  Дальнейшая информация

  For further product details, refer to the "SIPLUS HCS724I Heater Control System" Operating Instructions, https://support.industry.siemens.com/cs/ww/en/view/55336534

  For further information, go to http://www.siemens.com/siplus-hcs.
