  SIPLUS HCS4300 heating control systems

  The SIPLUS HCS4300 heating control system controls and switches heat emitter arrays and other resistive loads in 400 V/480 V voltage supply systems in industrial environments.

  Communication takes place via PROFINET and provides, together with the SIMATIC S7, for example, a highly-modern and powerful automation system.

  Область применения

  The SIPLUS HCS4300 heating control system can be used to control heat emitter arrays in various applications, including:

  • Thermoforming machines
  • PET blow molding machines
  • Plastics welding machines
  • (Paint) drying ovens

  Дизайн

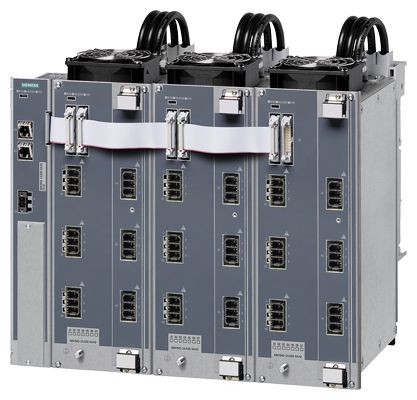

  The main components of the SIPLUS HCS4300 heating control system are:

  • Central Interface Module (CIM) installed in metal enclosure
    • Mounting is carried out using 4 screws (2 top and 2 bottom) on the left side of the power output module.
  • Power output module (POM) installed in metal enclosure
    • Up to 6 power output modules can be operated on one CIM.
  • Communication via PROFIBUS IO, for example, with SIMOTION, SIMATIC S7, or Industrial PC

  Customized distributed configurations are also possible.

  Интеграция

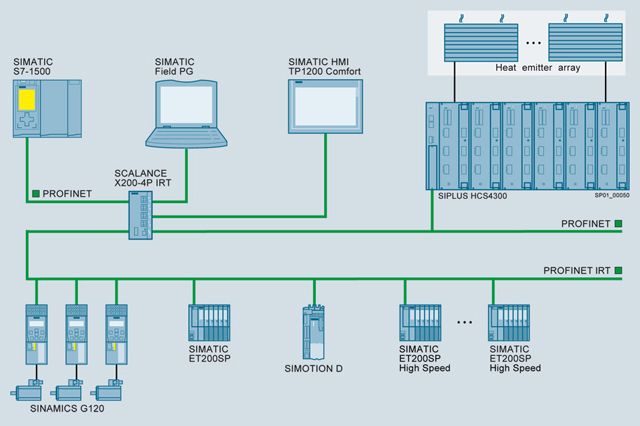

  Application example with SIMATIC, SINAMICS and SIPLUS HCS4300

  Особенности

  • Parameter assignment, commissioning, visualization and diagnostics of resistive loads via Siemens TIA Portal.
  • Display of diagnostic data in the SIMATIC Web server
  • Fast and precise diagnostics functions
  • Excellent product quality thanks to integrated line voltage compensation
  • Modular (centralized) and compact (distributed) configurations possible
  • Only one 24 V DC infeed is required for up to 6 power output modules
  • Integrated 2-phase protection of heating elements (supply and return circuit)
  • Problem-free service and maintenance thanks to simple replacement of fuses
  • Different types of heating element (e.g. quartz, halogen, infrared emitters, heating cartridges) can be operated. The same applies to heating elements that have a very low resistance when cold and therefore very high inrush currents.

  Дальнейшая информация

  For more product details, see

  • "SIPLUS HCS4300 Heating Control System" Operating Instructions, http://support.automation.siemens.com/WW/view/en/107197097
  • "SIPLUS HCS CIM4210 / CIM4310 PROFINET", https://support.industry.siemens.com/cs/ww/de/view/107177862/en
  • "SIPLUS HCS4300 POM4320 UL" Operating Instructions https://support.industry.siemens.com/cs/ww/de/view/109737009 and "SIPLUS HCS4300 POM4320 UL" Operating Instructions https://support.industry.siemens.com/cs/ww/de/view/109737011/en

  For more information, see http://www.siemens.com/siplus-hcs
