SIPLUS HCS716I heating control systems

• Информационные материалы

  Информационные материалы

  The SIPLUS HCS716I heater control system was developed as a cost-optimized controller of heat emitter arrays in thermoforming machines. It is suitable for all generally available radiation devices such as quartz, quartz material, ceramic, halogen and infrared radiation devices.

  SIPLUS HCS716I can be used wherever low-cost, resistive loads of small to medium output require switching in an industrial environment.

  The SIPLUS HCS716I family comprises four racks and three power output modules.

  HCS716I heater controller

  Область применения

  The SIPLUS HCS716I heater control system is used, for example, to switch the small and medium output heat emitter arrays in thermoforming machines, drying ovens and packaging machines.

  The SIPLUS HCS716I is a distributed I/O unit (slave) that communicates over the PROFIBUS DP fieldbus with a higher-level control system (master) such as SIMATIC S7/SIMOTION.

  Дизайн

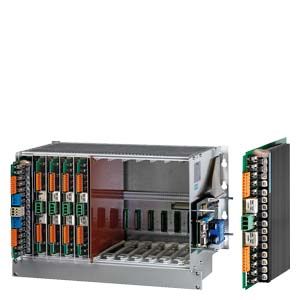

  The main components of the SIPLUS HCS716I heater control system are:

  • 19" rack with bus board for inserting up to 4 or up to 12 power output modules, as well as a control module and CPU module
  • Power output modules in double-height Eurocard format with 8/16 output channels
  • Fan units with one or three fans (option)
  • Communication over PROFIBUS DP, e.g. with SIMOTION, SIMATIC S7, or industrial PC
  • Plug-in card system on the front

  Интеграция

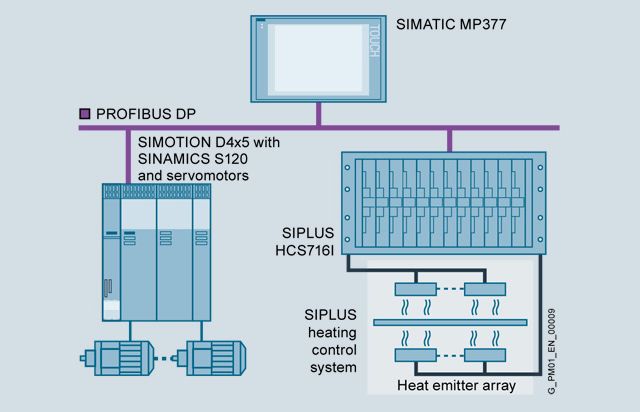

  Example of application with SIMOTION, SINAMICS and HCS716I

  Особенности

  • High degree of modularity in terms of number of channels and channel performance

  Дальнейшая информация

  For further product details, refer to the "SIPLUS HCS716l Heater Control System" Operating Instructions,

  https://support.industry.siemens.com/cs/ww/en/view/50695867

  For further information, go tohttp://www.siemens.com/siplus-hcs.
