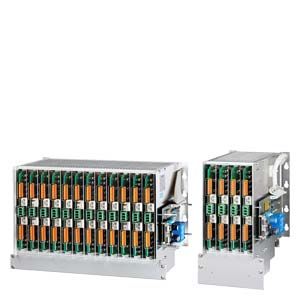

The rack is the mechanical framework of the SIPLUS HCS716I and contains all the modules required to control the power outputs.

It is available in four different versions:

Rack hinged frame
Rack mounting frame
Rack mounting frame without flange
Rack mounting frame, slim-line version and expansion frame, slim-line version

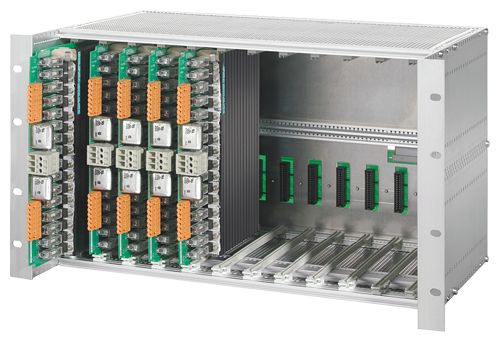

Rack hinged frame

The CPU and the control module are located at the rear of the rack. The rack is suitable for installation in a hinged frame.

Rack hinged frame 6BK1700‑2AA00‑0AA1

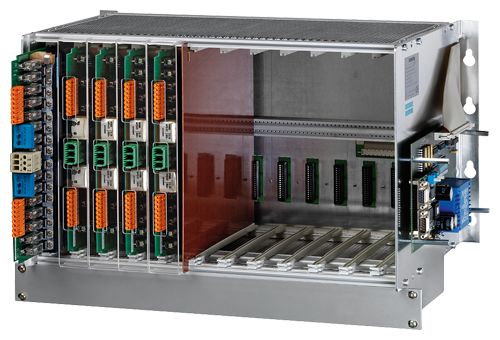

Rack mounting frame without flange

The CPU and the control module are also located on the right side of the rack. This rack is suitable for installation in a control cabinet. In contrast to the rack mounting frame, this version has no mounting bracket (flange) on the front.

Rack mounting frame without flange 6BK1700‑2AA70‑0AA0

Rack mounting frame, slim-line version and expansion frame, slim-line version

The CPU and the control module are also located on the right side of the rack. This rack is suitable for direct installation in a control cabinet and accommodates up to four power output modules and can be extended with the expansion rack to take another four power output modules. It is mounted to the left of the rack mounting frame slim-line version and connected to it by means of a cable.

An additional fan unit is available as an accessory which is attached from below to the rack mounting frame, slim-line version and expansion rack, slim-line version.

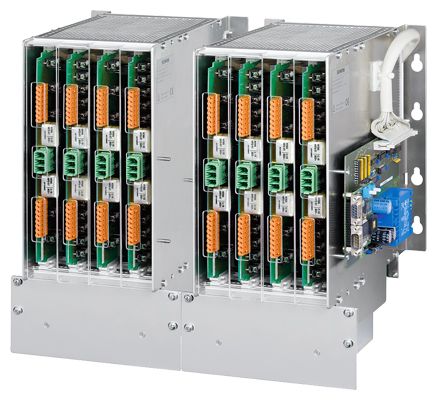

Rack mounting frame, slim-line version 6BK1700‑2AA80‑0AA0 (right) and expansion frame, slim-line version 6BK1700‑3AA00‑0AA0 (left) with fan units 6BK1700‑2GA10‑0AA0 attached below

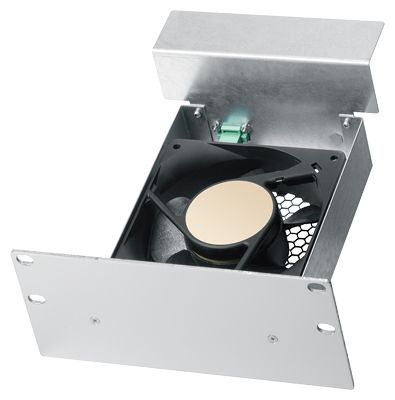

Fan unit 6BK1700‑2GA10‑0AA0

Дизайн

19" rack:
- Backplane panel for CPU, control module and bus module
- Holders for 4 or 12 power output modules
- Partition as cover when slots are not all populated
CPU with PROFIBUS interface module
Control module
- Power supply for the modules of the heater controller
- Decoding for control of the power output modules
Bus module
- contains 4 or 12 direct plug-in connectors for connecting the control module to the power output modules
Heat dissipation possible with optional fan units

Функции

Communications

PROFIBUS DP
- Import of the parameter settings from the higher-level controller
- Transfer of the diagnostic information to the higher-level controller
Internal system bus via bus PCB
Control and monitoring of up to 192 power output channels

Performance features

Calculation of the emitter manipulated variables of the power output channels
Setpoints can be adjusted from 0% to 100% in increments of 1%

Diagnostics

Evaluation of diagnostics information from connected power output modules
Automatic detection of the line frequency

Forced ventilation

Depending on the switching capacity and ambient temperature, the rack may have to be forced ventilated. Fan units are available as optional accessories for this purpose (see "Accessories"). For detailed information, refer to the "SIPLUS HCS716I Heater Control System" Operating Instructions, http://support.automation.siemens.com/WW/view/en/50695867.

Технические данные

Order number	6BK1700-2AA00-0AA1	6BK1700-2AA70-0AA0	6BK1700-2AA80-0AA0
	HCS716I Subrack hinged frame	HCS716I Subrack mounting fr. w/o flange	HCS716I Subrack mounting frame small
General information
Product designation	HCS716I BGT swivel frame	HCS716I BGT subframe without flange	HCS716I BGT subframe narrow version
Installation type/mounting
Mounting type	in a hinged frame	Control cabinet backplane
Type of ventilation	Self ventilation or forced ventilation
Supply voltage
Rated value (AC)	230 V
Relative negative tolerance	18 %
Relative positive tolerance	15 %
Line frequency
● Rated value 1	50 Hz
● Rated value 2	60 Hz
● Relative symmetrical tolerance	5 %
Mains buffering
● Mains/voltage failure stored energy time	20 ms
● Recovery time after power failure, typ.	1 s
Resistance thermometer (RTD)
● Design of electrical connection for supply voltage	Connector, 2-pole
— Connectable conductor cross-sections, solid	1x (0.2 ... 2.5 mm²)
— Connectable conductor cross-sections, finely stranded with wire end processing	1x (0.25 ... 2.5 mm²)
— Connectable conductor cross-sections for AWG cables	24 ... 12
Power
Active power input	15 W
Hardware configuration
Type of power output connectable	LA716 / LA716I / LA716I HP
Power capacity per rack with fan, max.	176 kW		59 kW
Power capacity per rack without fan, max.	67 kW		22 kW
Slots
● Number of slots	12		4
Interfaces
Interfaces/bus type	PROFIBUS DP
PROFIBUS DP
● Transmission rate, max.	12 Mbit/s
● Design of electrical connection of PROFIBUS interface	9-pin sub D socket
Protocols
PROFIBUS DP	Yes
Interrupts/diagnostics/status information
Number of status displays	2
LED status display	LED green = status indicator, LED red = fault indicator
Isolation
Overvoltage category	III
EMC
EMC interference emission	in accordance with EN 61000-6-4:2007 + A1:2011
Electrostatic discharge acc. to IEC 61000-4-2	4 kV contact discharge / 8 kV air discharge
Field-related interference acc. to IEC 61000-4-3	10 V/m (80 ... 1 000 MHz), 3 V/m (1.4 ... 2.0 GHz), 1 V/m (2.0 ... 2.7 GHz)
Conducted interference due to burst acc. to IEC 61000-4-4	2 kV voltage supply cables / 2 kV signal cables
Conducted interference due to surge acc. to IEC 61000-4-5	On supply lines: 1 kV symmetrical, 2 kV asymmetrical, PROFIBUS cable asymmetrical 1 kV
Conducted interference due to high-frequency radiation acc. to IEC 61000-4-6	10 V in the frequency range 0.15 ... 80 MHz, Mmdulation 80 % AM at 1 kHz, evaluation criterion A
Degree and class of protection
IP degree of protection	IP00
Standards, approvals, certificates
Certificate of suitability	CE, KCC
Degree of pollution	2
Device tag according to DIN EN 81346-2	K
Ambient conditions
Ambient temperature during operation
● min.	0 °C
● max.	55 °C
Ambient temperature during storage/transportation
● Storage, min.	-40 °C
● Storage, max.	70 °C
● Transportation, min.	-40 °C
● Transportation, max.	70 °C
Air pressure acc. to IEC 60068-2-13
● Operation, min.	860 hPa
● Operation, max.	1 080 hPa
● Storage, min.	660 hPa
● Storage, max.	1 080 hPa
● Installation altitude above sea level, max.	2 000 m
Relative humidity
● at 25 °C, max.	95 %
Vibrations
● Vibration resistance during operation acc. to IEC 60068-2-6	10 ... 58 Hz / 0.15 mm, 58 ... 150 Hz / 1 g
● Vibration resistance during storage acc. to IEC 60068-2-6	5 ... 9 Hz / 3.5 mm, 9 ... 500 Hz / 1 g
Shock testing
● Shock resistance acc. to IEC 60068-2-27	15 g / 11 ms / 3 shocks/axis
● Shock resistance acc. to IEC 60068-2-29	25 g / 6 ms / 1 000 shocks/axis
Dimensions
Width	483 mm	510 mm	202.7 mm
Height	265.5 mm	310 mm	309.5 mm
Depth	350 mm	330 mm	287 mm

Дополнительно

Design	Type
Fan units for hinged frame, mounting frame, and mounting frame without flange They are attached to the racks from below.
230 V AC with three fans	On request¹⁾
115 … 230 V AC/24 V DC with three fans and speed monitoring	On request¹⁾

Design

Type

Fan units

for hinged frame, mounting frame, and mounting frame without flange

They are attached to the racks from below.

230 V AC
with three fans

On request¹⁾

115 … 230 V AC/24 V DC
with three fans and speed monitoring
