  SIPLUS HCS4200 heating control system

  The SIPLUS HCS4200 heating control system controls and switches heat emitter arrays and other resistive loads in 230 V AC voltage supply systems in industrial environments.

  Communication takes place via PROFINET, and together with the SIMATIC S7, SIMOTION or industrial PC, forms a modern and powerful automation system. The modular, compact and space-saving distributed I/O system can be adapted individually to suit the application.

  Область применения

  The SIPLUS HCS4200 heating control system can be used to control heat emitter arrays in various applications, including

  • Thermoforming machines
  • Plastics welding machines
  • (Paint) drying ovens

  Дизайн

  The main components of the SIPLUS HCS4200 heating control system are:

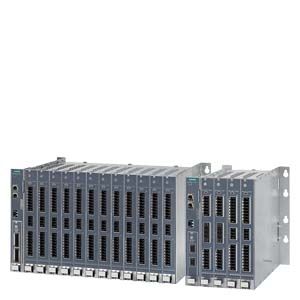

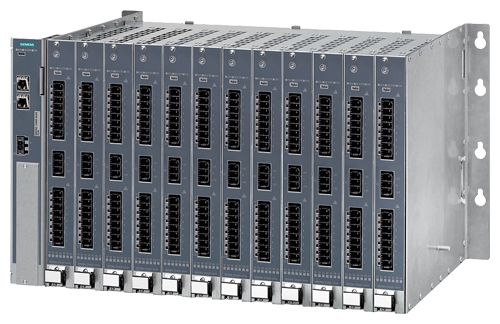

  • Rack for holding up to 12 power output modules
  • Central interface module for communication with the higher-level PLC and for internal communication in the HCS network.
  • Power output modules for controlling the heat emitters
  • Communication via PROFIBUS IO, for example, with SIMATIC S7, SIMOTION, or Industrial PC

  Интеграция

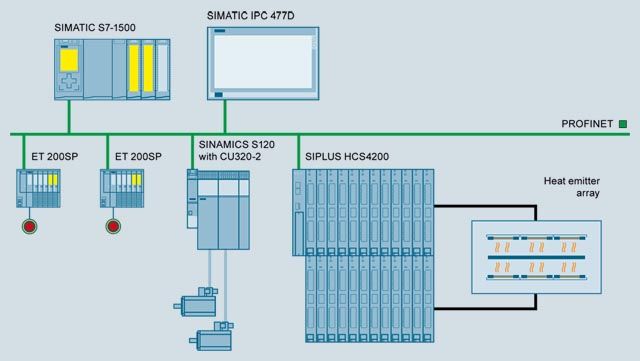

  Application example with SIMATIC, SINAMICS und SIPLUS HCS4200

  Особенности

  • Significant space and wiring savings thanks to integration of all the individual components required for controlling electrical heating elements.
  • Control of the loads with percentage accuracy.
  • Simple integration into the automation network via the TIA Portal (Totally Integrated Automation) engineering framework.
  • Early location of faults thanks to detailed diagnostics functions.
  • Display of diagnostics data in the SIMATIC Web server.
  • Intelligent control routines reduce current spikes in the system.
  • Integrated protection of the heating elements (supply circuit) in open fuse holders.
  • Flexible application thanks to use of different types of heating element (e.g. quartz, halogen, infrared emitters, heating cartridges).

  Дальнейшая информация

  For further product details, go to

  • "Heating Control Systems SIPLUS HCS Heating control system HCS4200" Operating Instructions, http://support.automation.siemens.com/WW/view/en/107685679
  • "SIPLUS HCS CIM4210 / CIM4310 PROFINET" Operating Instructions, http://support.automation.siemens.com/WW/view/en/107667691
  • "SIPLUS HCS RACK for 12 and 4 POMs", https://support.industry.siemens.com/cs/ww/de/view/109737007/en

  For more information, go to http://www.siemens.com/siplus-hcs
