  SIPLUS HCS4200 heating control system

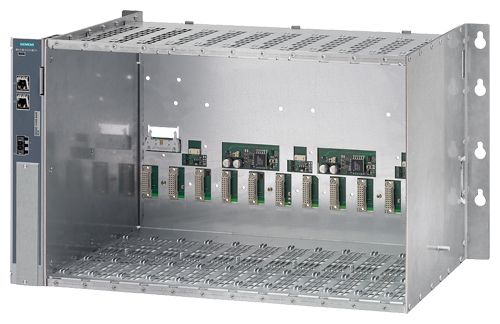

  The rack constitutes the basic mechanical structure of SIPLUS HCS4200

  Дизайн

  • Rack for mounting on the cabinet rear panel
  • Rear bus board for holding 12 power output modules
  • Heat dissipation with optional fan units, that is, 1 fan module is required for every 4 power output modules.

  Функции

  • Rack for holding up to 12 power output modules.
  • Internal communication takes place via a bus board on the rear.
  • Depending on the switching capacity and ambient temperature, the rack may have to be force-ventilated.
  • The fan units are available as optional accessories (Article No. 6BK1942-4AA00-0AA0).
  • For detailed information, go to the "SIPLUS HCS4200 Heating Control System" Operating Instructions, http://support.automation.siemens.com/WW/view/en/xxxxxxxx.

  Технические данные

  Order number		6BK1942-0AA00-0AA0	6BK1942-0BA00-0AA0
  		HCS Rack4200 for 12 POM	HCS Rack4200 for 4 POM
  General information
  Product brand name		SIPLUS
  Product designation		Rack4200 for 12 POMs	RACK4200 for 4 POMs
  Installation type/mounting
  Mounting type		Control cabinet backplane
  Type of ventilation		Self ventilation or forced ventilation
  Hardware configuration
  Type of power output connectable		POM4220
  Power capacity per rack with fan, max.		193 kW	64 kW
  Power capacity per rack without fan, max.		88 kW	29 kW
  Slots
  ● Number of slots		12	4
  Interfaces
  Interfaces/bus type		system interface
  EMC
  EMC interference emission		Limit value in accordance with IEC 61000-6-4:2007 + A1:2011
  Electrostatic discharge acc. to IEC 61000-4-2		4 kV contact discharge / 8 kV air discharge
  Field-related interference acc. to IEC 61000-4-3		10 V/m (80 ... 1 000 MHz), 3 V/m (1.4 ... 2.0 GHz), 1 V/m (2.0 ... 2.7 GHz)
  Degree and class of protection
  IP degree of protection		IP20
  Standards, approvals, certificates
  Degree of pollution		2
  Device tag according to DIN EN 81346-2		K
  Ambient conditions
  Ambient temperature during operation
  ● min.		0 °C
  ● max.		55 °C
  Ambient temperature during storage/transportation
  ● Storage, min.		-25 °C
  ● Storage, max.		70 °C
  ● Transportation, min.		-25 °C
  ● Transportation, max.		70 °C
  Air pressure acc. to IEC 60068-2-13
  ● Operation, min.		860 Pa
  ● Operation, max.		1 080 Pa
  ● Storage, min.		660 Pa
  ● Storage, max.		1 080 Pa
  ● Installation altitude above sea level, max.		2 000 m
  Relative humidity
  ● Operation at 25 ℃, max.		95 %
  ● Operation at 50 ℃, max.		50 %; 95 % at 25 °C, decreasing linearly to 50 % at 50 °C
  Vibrations
  ● Vibration resistance during operation acc. to IEC 60068-2-6		10 ... 58 Hz / 0.075 mm, 58 ... 150 Hz / 1 g
  ● Vibration resistance during storage acc. to IEC 60068-2-6		5 ... 8.5 Hz / 3.5 mm, 8.5 ... 500 Hz / 1 g
  Shock testing
  ● Shock resistance during operation acc. to IEC 60068-2-27		15 g / 11 ms / 3 shocks/axis
  ● Shock resistance during storage acc. to IEC 60068-2-29		25 g / 6 ms / 1 000 shocks/axis
  Dimensions
  Width		488 mm	204 mm
  Height		285 mm
  Depth		293 mm




  Дополнительно

  The following accessories are available for the rack:

  • Fan module:
    • One fan module supplies up to 4 power output modules plugged into the rack. It is attached to the top.
    • The 24 V DC power supply is via a 2-core cable with a single connector (included in the scope of delivery) and is plugged in at the rear bus board.
  • Blanking plate:
    • If not all slots in the rack are occupied by power output modules, the free slots must be covered with a blanking plate.
    • The plate is secured with 1 screw at the top und 1 screw at the bottom.

  Дальнейшая информация

  For more product details go to the "SIPLUS HCS Rack 4200 for 12 POM" Compact Operating Instructions, https://support.industry.siemens.com/cs/ww/en/view/109737007
