Контроль обрыва линейного провода и порядка чередования фаз

• Заказные данные
  (28)
• Информационные материалы

  Информационные материалы



  Электронное реле контроля напряжения обеспечивает максимальную защиту для  машин и установок с нестабильными сетями электроснабжения. При использовании этих реле аварии в сети или выход параметров напряжения за установленные пределы могут быть быстро обнаружены  и устранены прежде чем смогут возникнуть значительно большие повреждения или нанесен значительный ущерб.

  В зависимости от исполнения эти реле контролируют порядок чередования фаз, обрыв линейного провода с контролем нейтрального (N) проводника или без, несимметрию напряжения, падение напряжения  или перенапряжение. С реле 3UG46 17 или 3UG46 18 неправильное направление вращения может быть устранено автоматически.

  Область применения

  Реле контроля напряжения используются, прежде всего, для мобильного оборудования, например, компрессоров установок кондиционирования воздуха, холодильных камер, компрессоров на строительных площадках, подъемных кранах.



  Функции	Применение
  Порядок чередования фаз	Направление вращения привода
  Обрыв линейного провода	Срабатывание плавкого предохранителя Авария источника питания цепей управления Повреждение кабеля
  Несимметрия питающего напряжения	Перегрев двигателя из-за несимметрии питающего напряжения Определение асимметрично загруженных сетей
  Понижение напряжения	Увеличение тока двигателя приводящее к перегреву Неумышленный сброс (переустановка) устройства Пропадание напряжения сети, особенно при питании от батарей
  Повышение напряжения	Защита установок от выхода из строя из-за высокого напряжения или перенапряжения







  Особенности

  • Могут использоваться без дополнительного источника питания в любых сетях с напряжением от 160 до 690 В AC во всем мире благодаря широкому диапазону контролируемого напряжения
  • Регулируемые пределы контроля понижения напряжения, повышения напряжения или контроля напряжения в режиме окна (повышение и понижение напряжения одновременно)
  • Свободно конфигурируемые выдержки времени и реакция на сброс (перезагрузку)
  • Установочная ширина  22.5 мм
  • Постоянное отображение ФАКТИЧЕСКОЙ величины и типа аварии в сети  в цифровых исполнениях
  • Автоматическая коррекция направления вращения с различием между авариями в сети  и неправильным порядком чередования фаз
  • Все исполнения со съемными блоками зажимов
  • Все исполнения с винтовыми зажимами или альтернативно с инновационными пружинными зажимами

  Технические данные

  3UG4511 monitoring relays

  The 3UG4511 phase sequenced relay monitors the phase sequence in a three-phase network. No adjustments are required for operation. The device has an internal power supply and works using the closed-circuit principle. If the phase sequence at the terminals L1-L2-L3 is correct, the output relay picks up after the delay time has elapsed and the LED is lit. If the phase sequence is wrong, the output relay remains in its rest position.

  Note:

  When one phase fails, connected loads (motor windings, lamps, transformers, coils, etc.) create a feedback voltage at the terminal of the failed phase due to the network coupling. Because the 3UG4511 relays are not resistant to voltage feedback, such a phase failure is not detected. Should this be required, then the 3UG4512 monitoring relay must be used.

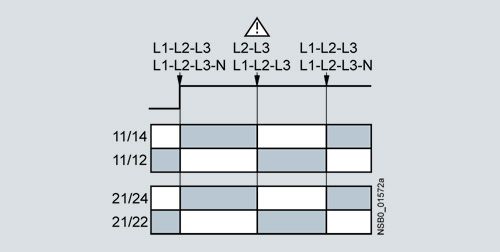

  Correct phase sequence



  Wrong phase sequence



  3UG4512 monitoring relays

  The 3UG4512 line monitoring relay monitors three-phase networks with regard to phase sequence, phase failure and phase unbalance of 10 %. Thanks to a special measuring method, a phase failure is reliably detected in spite of the wide voltage range from 160 to 690 V AC and feedback through the load of up to 90 %. The device has an internal power supply and works using the closed-circuit principle. No adjustments are required. If the line voltage is switched on, the green LED will light up. If the phase sequence at the terminals L1-L2-L3 is correct, the output relay picks up. If the phase sequence is wrong, the red LED flashes and the output relay remains in its rest position. If a phase fails, the red LED is permanently lit and the output relay drops.

  Note:

  The red LED is a fault diagnostic indicator and does not show the current relay status. The 3UG4512 monitoring relay is suitable for line frequencies of 50/60 Hz.

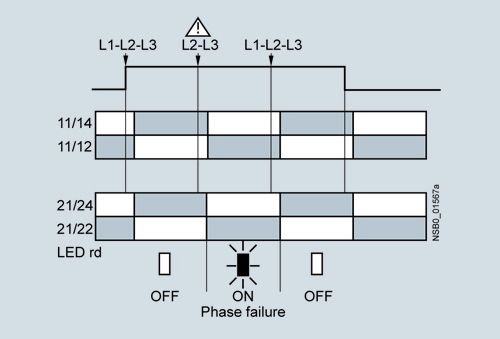

  Phase failure

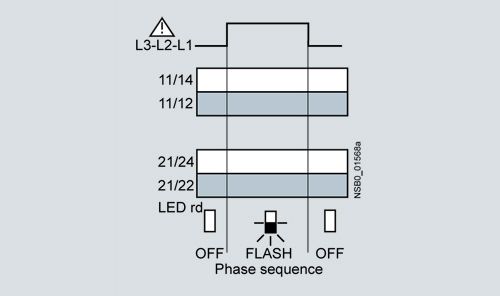

  Wrong phase sequence



  3UG4513 monitoring relays

  The 3UG4513 line monitoring relay monitors three-phase networks with regard to phase sequence, phase failure, phase asymmetry and undervoltage of 20 %. The device has an internal power supply and works using the closed-circuit principle. The hysteresis is 5 %. The integrated response delay time T is adjustable from 0 to 20 s and responds to undervoltage. If the direction is incorrect, the device switches off immediately. Thanks to a special measuring method, a phase failure is reliably detected in spite of the wide voltage range from 160 to 690 V and feedback through the load of up to 80 %. If the line voltage is switched on, the green LED will light up. If the phase sequence at the terminals L1-L2-L3 is correct, the output relay picks up. If the phase sequence is wrong, the red LED flashes and the output relay remains in its rest position. If a phase fails, the red LED is permanently lit and the output relay drops.

  Note:

  The red LED is a fault diagnostic indicator and does not show the current relay status. The 3UG4513 monitoring relay is suitable for line frequencies of 50/60 Hz.

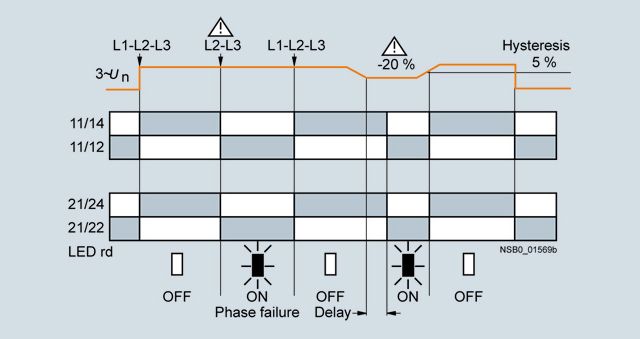

  Phase failure and undervoltage



  Wrong phase sequence



  3UG4614 monitoring relays

  The 3UG4614 line monitoring relay has a wide voltage range input and an internal power supply. The device is equipped with a display and is parameterized using three buttons. The unit monitors three-phase networks with regard to phase asymmetry from 5 to 20 %, phase failure, undervoltage and phase sequence. The hysteresis is adjustable from 1 to 20 V. In addition the device has a response delay and ON-delay from 0 to 20 s in each case. The integrated response delay time responds to phase asymmetry and undervoltage. If the direction is incorrect, the device switches off immediately. Thanks to a special measuring method, a phase failure is reliably detected in spite of the wide voltage range from 160 to 690 V and feedback through the load of up to 80 %.
  The 3UG4614 monitoring relay can be operated on the basis of either the open-circuit or closed-circuit principle and with manual or Auto RESET.

  With the closed-circuit principle selected

  Wrong phase sequence



  Phase failure



  Undervoltage



  Unbalance



  3UG4615/3UG4616 monitoring relays

  The 3UG4615/3UG4616 line monitoring relay has a wide voltage range input and an internal power supply. The device is equipped with a display and is parameterized using three buttons. The 3UG4615 device monitors three-phase networks with regard to phase failure, undervoltage, overvoltage and phase sequence. The 3UG4616 monitoring relay monitors the neutral conductor as well. The hysteresis is adjustable from 1 to 20 V. In addition the device has two separately adjustable delay times for overvoltage and undervoltage from 0 to 20 s in each case. If the direction of rotation is incorrect, the device switches off immediately. Thanks to a special measuring method, a phase failure is reliably detected in spite of the wide voltage range from 160 to 690 V and feedback through the load of up to 80 %.
  The 3UG4615/3UG4616 monitoring relay can be operated on the basis of either the open-circuit or closed-circuit principle and with manual or Auto RESET.

  With the closed-circuit principle selected

  Wrong phase sequence



  Phase failure



  Undervoltage

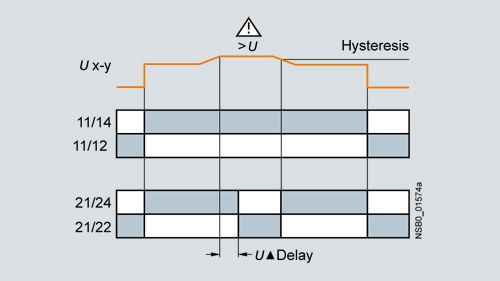

  Overvoltage



  3UG4617/3UG4618 monitoring relays

  The 3UG4617/3UG4618 line monitoring relay has an internal power supply and can automatically correct a wrong direction of rotation. Thanks to a special measuring method, a phase failure is reliably detected in spite of the wide voltage range from 160 to 690 V and feedback through the load of up to 80 %. The device is equipped with a display and is parameterized using three buttons. The 3UG4617 line monitoring relay unit monitors three-phase networks with regard to phase sequence, phase failure, phase unbalance, undervoltage and overvoltage. The 3UG4618 monitoring relay monitors the neutral conductor as well. The hysteresis is adjustable from 1 to 20 V. In addition the device has delay times from 0 to 20 s in each case for overvoltage, undervoltage, phase failure and phase unbalance. The 3UG4617/3UG4618 monitoring relay can be operated on the basis of either the open-circuit or closed-circuit principle and with manual or Auto RESET. The one changeover contact is used for warning or disconnection in the event of power system faults (voltage, unbalance), the other responds only to a wrong phase sequence. In conjunction with a contactor reversing assembly it is thus possible to change the direction automatically.

  With the closed-circuit principle selected

  Phase failure



  Undervoltage



  Overvoltage



  Unbalance
