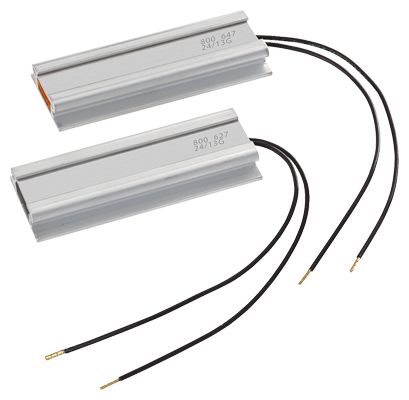

  SINAMICS G110M braking resistors FSA and FSB

  Excess energy in the DC link is dissipated in the braking resistors in regenerative operation.

  The braking resistors are intended for use with SINAMICS G110M, which have an integrated braking chopper, but cannot regenerate energy to the line supply. For regenerative operation, e.g. the braking of a rotating mass with high moment of inertia, a braking resistor must be connected to convert the resulting energy into heat.

  The braking resistors can be mounted on the side of the Control Unit housing at the bottom. The heat from the braking resistor is dissipated over the Control Unit housing. Every braking resistor is equipped with thermal protection. The thermal protection prevents the braking resistor from being thermally overloaded.

  All braking resistors are provided as standard with a cable for connecting to the internal terminals.

  Характеристика



  Load diagram for the braking resistors

  t_a = 12 s

  t = 120 s

  Технические данные

  Line voltage 380 ... 480 V 3 AC		Braking resistor
  		6SL3501-0BE18-8AA0	6SL3501-0BE22-0AA0
  Resistance	Ω	350	175
  Rated power PDB (continuous braking power)	kW	0.0075	0.02
  Peak power Pmax (load period ta = 12 s with period t = 120 s)	kW	0.075	0.2
  Degree of protection		IP20	IP20
  Dimensions
  Width	mm (in)	11 (0.43)	11 (0.43)
  Height	mm (in)	34 (1.34)	34 (1.34)
  Length	mm (in)	84 (3.31)	84 (3.31)
  Weight, approx.	kg (lb)	0.1 (0.22)	0.1 (0.22)
  Suitable for SINAMICS G110M (frame size)		6SL3517-1BE11-3AM0 (FSA) 6SL3517-1BE12-3AM0 (FSA) 6SL3517-1BE13-3AM0 (FSA) 6SL3517-1BE14-3AM0 (FSA)	6SL3517-1BE16-3AM0 (FSB) 6SL3517-1BE17-7AM0 (FSB) 6SL3517-1BE21-0AM0 (FSB)
