PM240M Power Modules

Заказные данные
(7)

SINAMICS G110M PM240M Power Module FSA 1.5 kW (2 hp)

SINAMICS G110M PM240M Power Module FSB 4 kW (5 hp)

The PM240M Power Modules are suitable for safety-related applications. In conjunction with the CU240M Control Unit, the drive can be transformed into a Safety Integrated drive (see Control Units).

The PM240M Power Modules with integrated line filter class A are suitable for connection to TN and TT supply systems.

Характеристика

Derating data

Rated power at 400 V 3 AC		Rated output current in A for a pulse frequency of (derating as a function of the pulse frequency¹⁾)
kW	hp	4 kHz	6 kHz	8 kHz	10 kHz	12 kHz	14 kHz	16 kHz
0.37	0.5	1.3	1.3	1.11	0.91	0.78	0.65	0.59
0.75	1	2.2	1.9	1.5	1.3	1.1	1	0.9
1.1	1.5	3.1	2.6	2.2	1.9	1.6	1.4	1.2
1.5	2	4.1	3.5	2.9	2.5	2.1	1.8	1.6
2.2	3	5.6	4.8	3.9	3.4	2.8	2.5	2.2
3	4	7.3	6.2	5.1	4.4	3.7	3.3	2.9
4	5	8.8	7.5	6.2	5.3	4.4	4	3.5

¹⁾ The permissible motor cable length also depends on the cable type and the selected pulse frequency.

Ambient temperature

Permissible output current as a function of ambient temperature for PM240M Power Modules, frame sizes FSA and FSB

Note:

The operating temperature ranges of the Control Units must be taken into account. The temperature ranges are specified in the technical specifications under Control Units.

Installation altitude

Permissible output current as a function of installation altitude for PM240M Power Modules, frame sizes FSA and FSB

Permissible input voltage as a function of installation altitude for PM240M Power Modules, frame sizes FSA and FSB

Motor frequency

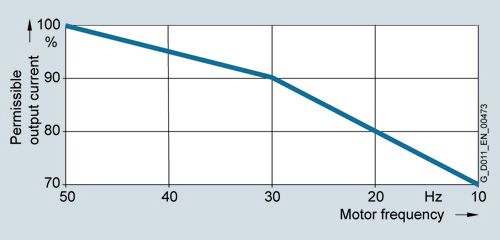

Permissible output current as a function of motor frequency for PM240M Power Modules, frame sizes FSA and FSB

Интеграция

PM240M Power Modules feature the following interfaces as standard:

PM‑IF interface for connection of the PM240M Power Module and Control Unit
Motor connection including control of the motor brake and temperature sensor
Line connection via cable gland or HAN Q4/2 (connector)
Line supply loop-through via cable gland/terminal or HAN Q4/2 (socket)
USB connection for connection of a PC
Analog potentiometer for setting a speed
SD card slot for the use of memory cards

Connection diagram for PM240M Power Module with integrated line filter class A

Чертеж

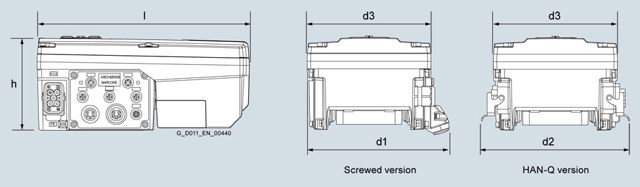

Dimensions of PM240M Power Modules (including CU240M Control Unit)

Frame size	Dimensions in mm (inches)
	h	l	d1	d2	d3
FSA	135 (5.31)	270 (10.63)	208 (8.19)	216 (8.5)	161 (6.34)
FSB	135 (5.31)	309 (12.17)	208 (8.19)	216 (8.5)	181 (7.13)

Технические данные

General technical specifications

	PM240M Power Modules
System operating voltage	380 V (-10 %) ... 480 V (+10 %) 3 AC
Grid requirements Short-circuit power ratio R_SC	>100
Input frequency	47 ... 63 Hz
Output frequency
Control mode V/f	0 ... 550 Hz
Control type Vector	0 ... 200 Hz
Pulse frequency	4 kHz (standard); 4 ... 16 Hz (in steps of 2 kHz) see derating data
Power factor	0.95
Inverter efficiency	95 ... 97 %
Output voltage, max. in % of the input voltage	87%
Overload capability
High overload (HO)	0.37 ... 3 kW (0.5 ... 4 hp): 2 × rated output current for 3 s, followed by 1.5 × rated output current for 57 s, over a cycle time of 300 s (110 % on average) 4 kW (5 hp): 1.6 × rated output current for 3 s, followed by 1.5 × rated output current for 57 s, over a cycle time of 300 s (110 % on average)
Electromagnetic compatibility	Integrated line filter class A according to EN 55011
Possible braking methods	Dynamic brake with internal braking resistors (accessories) Dynamic brake with external braking resistors R_min = 200 Ω (for FSA), R_min = 60 Ω (for FSB) DC brake Integrated brake control supplies DC power supply for the brake
	Line input voltage	380 V AC	400 V AC	440 V AC	480 V AC	500 V AC
	Resulting brake voltage	171 V DC	180 V DC	198 V DC	216 V DC	225 V DC
	Disconnection on the DC side permits "fast" braking (max. output current 1 A)
Degree of protection ¹⁾	IP66 (for Control Units, screw-type version) IP65 (for Control Units, plug-in version)
Operating temperature	-10 ... +55 °C (14 ... +131 °F)
Storage temperature	-40 ... +70 °C (-40 ... +158 °F)
Permissible mounting positions	All
Relative humidity	<95 % RH, condensation not permissible
Cooling	External cooling with motor fan
Installation altitude	Up to 1000 m (3281 ft) above sea level without derating Over 1000 m (3281 ft) see derating data
Short Circuit Current Rating (SCCR) ²⁾	40 kA
Protection functions	Undervoltage Phase failure detection Overvoltage Overload Ground fault Short-circuit Stall protection Motor blocking protection Motor overtemperature Inverter overtemperature Parameter locking
Compliance with standards	UL, cUL, CE, C-Tick (RCM)
CE marking, according to	EC Low Voltage Directive 73/23/EEC; filtered variants also: EC Low Voltage Directive 89/336/EEC

¹⁾ Applies to Power Modules and Control Units in the mounted state.

²⁾ Applies to industrial control panel installations to NEC article 409 or UL 508A.

Line voltage 380 … 480 V 3 AC		PM240M Power Modules
		6SL3517-1BE11-3AM0	6SL3517-1BE12-3AM0	6SL3517-1BE13-3AM0	6SL3517-1BE14-3AM0
Rated output current I_rated¹⁾	A	1.3	2.2	3.1	4.1
Maximum output current I_max	A	2.6	4.4	6.2	8.2
Rated power	kW (hp)	0.37 (0.5)	0.75 (1)	1.1 (1.5)	1.5 (2)
Rated pulse frequency	kHz	4	4	4	4
Efficiency η	%	96.8	98.1	98.2	97.3
Power loss ²⁾ At rated output current	kW	0.025	0.032	0.041	0.052
Cooling air requirement	m³/s (ft³/s)	0.0048 (0.17)	0.0048 (0.17)	0.0048 (0.17)	0.0048 (0.17)
Sound pressure level L_pA (1 m)	dB	–	–	–	–
Rated input current ³⁾	A	1.3	2	2.8	3.6
Line supply connection U1/L1, V1/L2, W1/L3, PE
Conductor cross-section (recommended)	mm²	1 ... 2.5 18 ... 14 AWG	1 ... 2.5 18 ... 14 AWG	1 ... 2.5 18 ... 14 AWG	1 ... 2.5 18 ... 14 AWG
PE connection (external connection)
Conductor cross-section (recommended)	mm²	10	10	10	10
Motor connection U2, V2, W2, PE, motor brake, temperature sensor
Conductor cross-section	mm²	1 ... 2.5 18 ... 14 AWG	1 ... 2.5 18 ... 14 AWG	1 ... 2.5 18 ... 14 AWG	1 ... 2.5 18 ... 14 AWG
Motor cable length, max. Shielded	m (ft)	5 (16.41)	5 (16.41)	5 (16.41)	5 (16.41)
Degree of protection		IP66	IP66	IP66	IP66
Dimensions
Width	mm (in)	161 (6.34)	161 (6.34)	161 (6.34)	161 (6.34)
Height	mm (in)	135 (5.31)	135 (5.31)	135 (5.31)	135 (5.31)
Depth	mm (in)	270 (10.63)	270 (10.63)	270 (10.63)	270 (10.63)
Frame size		FSA	FSA	FSA	FSA
Weight, approx.	kg (lb)	2.1 (4.63)	2.1 (4.63)	2.1 (4.63)	2.1 (4.63)

¹⁾ The rated output current I_rated is based on the duty cycle for high overload (HO).

²⁾ Typical values. You can find additional information on the Internet at https://support.industry.siemens.com/cs/document/94059311.

³⁾ The input current depends on the motor load and line impedance. The input currents apply for loading at rated power with a line impedance corresponding to u_K = 1 %.

Line voltage 380 … 480 V 3 AC		PM240M Power Modules
		6SL3517-1BE16-3AM0	6SL3517-1BE17-7AM0	6SL3517-1BE21-0AM0
Rated output current I_rated¹⁾	A	5.6	7.3	8.8
Maximum output current I_max	A	11.2	14.6	14.1
Rated power	kW (hp)	2.2 (3)	3 (4)	4 (5)
Rated pulse frequency	kHz	4	4	4
Efficiency η	%	97.6	97.6	97.7
Power loss ²⁾ At rated output current	kW	0.078	0.103	0.126
Cooling air requirement	m³/s (ft³/s)	0.024 (0.85)	0.024 (0.85)	0.024 (0.85)
Sound pressure level L_pA (1 m)	dB	–	–	–
Rated input current ³⁾	A	5.3	6.9	8
Line supply connection U1/L1, V1/L2, W1/L3, PE
Conductor cross-section (recommended)	mm²	1 ... 2.5 18 ... 14 AWG	1 ... 2.5 18 ... 14 AWG	1 ... 2.5 18 ... 14 AWG
PE connection (external connection)
Conductor cross-section (recommended)	mm²	10	10	10
Motor connection U2, V2, W2, PE, motor brake, temperature sensor
Conductor cross-section	mm²	1 ... 2.5 18 ... 14 AWG	1 ... 2.5 18 ... 14 AWG	1 ... 2.5 18 ... 14 AWG
Motor cable length, max. Shielded	m (ft)	5 (16.41)	5 (16.41)	5 (16.41)
Degree of protection		IP66	IP66	IP66
Dimensions
Width	mm (in)	181 (7.13)	181 (7.13)	181 (7.13)
Height	mm (in)	135 (5.31)	135 (5.31)	135 (5.31)
Depth	mm (in)	309 (12.17)	309 (12.17)	309 (12.17)
Frame size		FSB	FSB	FSB
Weight, approx.	kg (lb)	3.4 (7.50)	3.4 (7.50)	3.4 (7.50)
