SIMATIC RF350R reader

SIMATIC RF350R (New Generation) is a universal reader for operation with external antennas. Due to the different pluggable antenna designs (flat antenna, round antennas), there are many possible applications in the area of industrial production, especially in assembly lines.

This reader has an RS422 interface with transmission procedure 3964R for connection to RFID communication modules (see "Communication modules").

Due to the high degree of protection and use of high-quality materials, the SIMATIC RF350R facilitates problem-free operation even under the harshest industrial conditions. The reader is connected via an 8-pole M12 plug-in connector.

Additional performance features compared with first generation RF350R:

Additional transponder protocol (air interface) for MOBY E transponders (MIFARE classic, ISO 14443 A)
Automatic detection of different transponder types (RF300, ISO 15693, MOBY E). Mixed operation also possible
Emulation of MOBY I read/write devices (SLG4x) to the interface module for easy migration of old systems (but no emulation of air interface to MOBY I transponders)
User-friendly parameter assignment and configuration using technology objects (as from TIA Portal V14 SP1)
Setup help integrated in reader for simple optimization of reader-transponder positioning during installation/commissioning without the need for additional tools or equipment
Improved 2-LED display for normal operation, transponder presence, integrated setup help and error status
Fast Command for 2 and 8 KB ISO data storage media (MDS D4xx, D5xx) for enhanced speed reading

Connectable antennas

One of each of the following antennas can be operated on an RF350R:

ANT 1, universal flat antenna, also designed for dynamic applications Dimensions L x W x H (mm): 75 x 75 x 20
ANT 3, due to its slimline, compact design, can still be precisely positioned even in cramped conditions Dimensions L x W x H (mm): 50 x 28 x 10
ANT 12, universal round antenna in M12 design, for assembly lines with extremely small workpiece holders Dimensions Ø x L (mm): M12 x 40
ANT 18, universal round antenna in M18 design for assembly lines with small workpiece holders. Dimensions Ø x L (mm): M18 x 55
ANT 30, universal round antenna, designed for assembly lines with small workpiece holders Dimensions Ø x L (mm): M30 x 58

Дизайн

Connectable antennas	ANT 1	ANT 3	ANT 3S	ANT 12	ANT 18	ANT 30
Inductive interface to the transponder	13.56 MHz
Range, max.	140 mm	50 mm	N/A	16 mm	35 mm	55 mm

Minimum distance between antennas

RF350R New Generation, with antenna	ANT 1	ANT 3	ANT 3S	ANT 12	ANT 18	ANT 30
Minimum distance (mm) from antenna to antenna (D)
ANT 1	300	-	-	-	-	-
ANT 3	-	150	-	-	-	-
ANT 3S	-	-	N/A	-	-	-
ANT 12	-	-	-	70	-	-
ANT 18	-	-	-	-	100	-
ANT 30	-	-	-	-	-	100

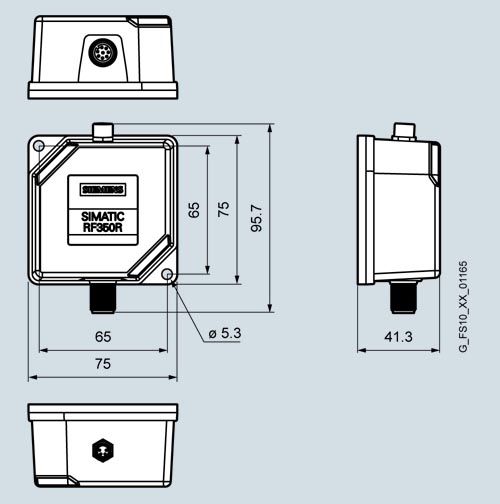

Чертеж

SIMATIC RF350R reader, New Generation

Технические данные

Order number		6GT2801-4BA10
Product type designation		RF350R reader
Wireless frequencies
Operating frequency Rated value		13.56 MHz
Electrical data
Range maximum		140 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964
Transfer rate with radio transmission maximum		106 kbit/s
Product feature multitag-capable		No
Transfer rate at the point-to-point connection serial maximum		115.2 kbit/s
Transmission time for user data
● for write access per byte typical		0.13 ms
● for read access per byte typical		0.13 ms
Interfaces
Number of external antennas		1
Standard for interfaces for communication		RS422
Type of electrical connection
● for external antenna(s)		M8, 4-pin
● for communications interface		M12, 8-pin
Mechanical data
Material		PA 12
Tightening torque of the screw for securing the equipment maximum		1.5 N·m
Mounting distance relating to metal surfaces recommended minimum		0 mm
Supply voltage, current consumption, power loss
Supply voltage
● at DC Rated value		24 V
● at DC		20.4 ... 28.8 V
Consumed current at DC at 24 V
● typical		0.06 A
Permitted ambient conditions
Ambient temperature
● during operation		-25 ... +70 °C
● during storage		-40 ... +85 °C
● during transport		-40 ... +85 °C
Protection class IP		IP65
Shock resistance		EN 60721-3-7, Class 7 M2
Shock acceleration		500 m/s²
Vibrational acceleration		200 m/s²
Design, dimensions and weight
Width		75 mm
Height		41 mm
Depth		75 mm
Net weight		0.25 kg
Mounting type		2 x M5 screws
Wire length
● of antenna cable fixed value		3 m
● for RS 422 interface maximum		1 000 m
Product properties, functions, components general
Product feature silicon-free		Yes
Standards, specifications, approvals
Certificate of suitability		Wireless according to R&TTE guidelines EN 300 330, EN 301489, CE, FCC, UL/CSA
MTBF		260 y
Accessories
accessories		Various antennas are available

Дальнейшая информация

All current wireless approvals can be found on the Internet at:

http://www.siemens.de/rfid-funkzulassungen
