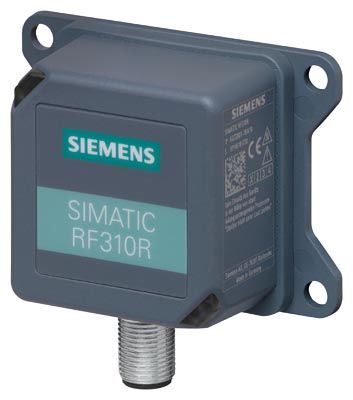

  SIMATIC RF310R reader



  SIMATIC RF310R reader with rotated base plate

  Due to its small, compact design, the SIMATIC RF310R (New Generation) reader can be used to considerable advantage in small assembly lines.

  This reader is available with an RS422 interface for the RFID communication modules (see "Communication modules").

  Due to the high degree of protection and the use of high-quality materials, the SIMATIC RF310R facilitates problem-free operation even under the harshest industrial conditions. The reader is connected via an 8-pole M12 plug-in connector.

  The reader is available in a version with the base plate turned through 90°. This facilitates special installation scenarios.

  Additional performance features compared with first generation RF310R:

  • Additional transponder protocol (air interface) for MOBY E transponders (MIFARE classic, ISO 14443 A)
  • Automatic detection of different transponder types (RF300, ISO 15693, MOBY E). Mixed operation also possible
  • Emulation of MOBY I read/write devices (SLG4x) to the interface module for easy migration of old systems (but no emulation of air interface to MOBY I transponders)
  • User-friendly parameter assignment and configuration using technology objects (as from TIA Portal V14 SP1)
  • Setup help integrated in reader for simple optimization of reader-transponder positioning during installation/commissioning without the need for additional tools or equipment
  • Improved 2-LED display for normal operation, transponder presence, integrated setup help and error status
  • Fast Command for 2 and 8 KB ISO data storage media (MDS D4xx, D5xx) for enhanced speed reading

  Дизайн

  Field data

  Minimum distance from reader to reader
  SIMATIC RF310R New Generation	≥ 150 mm





  Чертеж

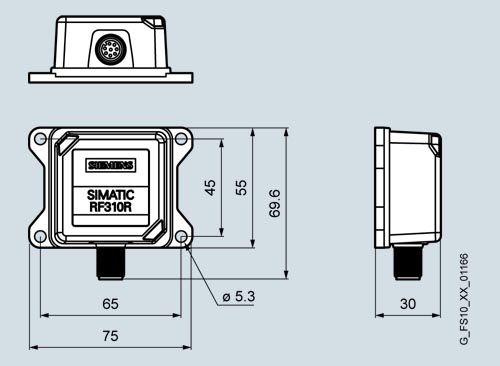

  SIMATIC RF310R reader, New Generation



  SIMATIC RF310R reader with base plate turned through 90°, New Generation

  Технические данные

  Order number		6GT2801-1BA10	6GT2801-1BA10-0AX1
  Product type designation		RF310R reader	RF310R reader
  Wireless frequencies
  Operating frequency Rated value		13.56 MHz	13.56 MHz
  Electrical data
  Range maximum		60 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964	60 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964
  Transfer rate with radio transmission maximum		106 kbit/s	106 kbit/s
  Product feature multitag-capable		No	No
  Transfer rate at the point-to-point connection serial maximum		115.2 kbit/s	115.2 kbit/s
  Transmission time for user data
  ● for write access per byte typical		0.13 ms	0.13 ms
  ● for read access per byte typical		0.13 ms	0.13 ms
  Interfaces
  Standard for interfaces for communication		RS422	RS422
  Type of electrical connection		M12, 8-pin	M12, 8-pin
  Mechanical data
  Material		PA 12	PA 12
  Tightening torque of the screw for securing the equipment maximum		1.5 N·m	1.5 N·m
  Mounting distance relating to metal surfaces recommended minimum		0 mm	0 mm
  Supply voltage, current consumption, power loss
  Supply voltage
  ● at DC Rated value		24 V	24 V
  ● at DC		20.4 ... 28.8 V	20.4 ... 28.8 V
  Consumed current at DC at 24 V
  ● typical		0.06 A	0.06 A
  Permitted ambient conditions
  Ambient temperature
  ● during operation		-25 ... +70 °C	-25 ... +70 °C
  ● during storage		-40 ... +85 °C	-40 ... +85 °C
  ● during transport		-40 ... +85 °C	-40 ... +85 °C
  Protection class IP		IP67	IP67
  Shock resistance		EN 60721-3-7, Class 7 M2	EN 60721-3-7, Class 7 M2
  Shock acceleration		500 m/s²	500 m/s²
  Vibrational acceleration		200 m/s²	200 m/s²
  Design, dimensions and weight
  Width		55 mm	75 mm
  Height		30 mm	30 mm
  Depth		75 mm	55 mm
  Net weight		0.2 kg	0.2 kg
  Mounting type		4 x M5 screws	4 x M5 screws
  Wire length
  ● for RS 422 interface maximum		1 000 m	1 000 m
  Product properties, functions, components general
  Product feature silicon-free		Yes	Yes
  Standards, specifications, approvals
  Certificate of suitability		Wireless according to R&TTE guidelines EN 300 330, EN 301489, CE, FCC, UL/CSA	Wireless according to R&TTE guidelines EN 300 330, EN 301489, CE, FCC, UL/CSA
  MTBF		273 y	273 y




  Дальнейшая информация

  All current wireless approvals can be found on the Internet at:

  http://www.siemens.de/rfid-funkzulassungen
