Platform screen door drive

Заказные данные
(1)

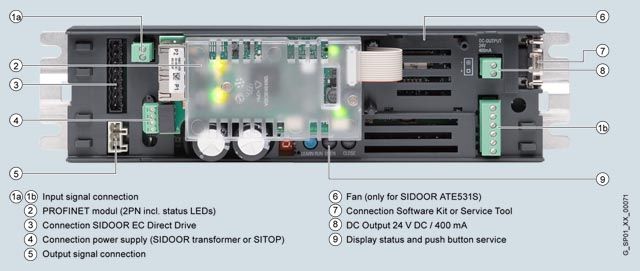

SIDOOR ATE530S/531S wiring diagram

The SIDOOR ATE53xS door controller is a “smart” door drive which can be used for safety-oriented operation of platform screen doors (PSD) according to individual requirements.
Siemens has once again shown just how easy integration can be with the innovative SIDOOR ATE53xS platform screen door drive in conjunction with SIDOOR MED280 or MEG251 motors.
The PROFINET module integrated in the SIDOOR ATE53xS enables standardized, certified connection to PROFINET IO systems.

Use of standard automation components
Full integration into TIA Portal and STEP 7 thanks to PROFINET connection
Parameter assignment and monitoring of door control parameters via the PROFINET interface (function blocks available as example applications in SIOS).
Application example:
Synchronization of two-panel and independent platform screen doors with SIDOOR ATE530S PROFINET EC door drive and S7-1500 CPU via TIA Portal https://support.industry.siemens.com/cs/de/en/view/109480495
Application example:
Safety-oriented automation of platform screen doors with SIDOOR ATE530S PROFINET EC door drive and S7-1500 CPU via TIA Portal https://support.industry.siemens.com/cs/de/en/view/109477186
Read-in of two safe signals (two-channel, antivalent)
High level of system safety thanks to safe torque off (e.g. self-release in the event of a fault)
Firmware update for all SIDOOR controllers on an entire platform possible centrally via TCP/IP
SIL 2 according to IEC 62061

Область применения

The SIDOOR ATE530S door controller is an “intelligent” door drive system for opening and closing platform screen doors at adjustable speeds and accelerations.

Platforms represent a potential hazard for passengers and train drivers and are also bottlenecks for rail logistics processes. Installing separating screens between the platform and the track bed solves these problems, as well as a range of others. Platform screen doors ensure the fast and safe boarding and alighting of passengers. Siemens has unveiled a new controller and drive-based solution that is capable of being deployed for this purpose without extensive engineering.

A central component of this solution is the ATE530S door controller with PROFINET communication.

It can be integrated into the overall automation system without any problem, and thus quickly linked up to an individual platform control system.

SIDOOR MED280 EC motors (see “Direct drives") from Siemens provide the movement, and are able to quickly and precisely open and close doors weighing up to 280 kg as standard.

The main highlight is that the controller and motor form a perfectly coordinated complete system able to be parameterized and configured via the “TIA Portal” engineering framework.

Дизайн

The platform screen door drive system consists of a number of components:

Version	Article No.
Controller
SIDOOR ATE530S Platform Screen Door Drive
SIDOOR ATE530S	6FB1231-3BM10-7AT0
SIDOOR ATE530S coated, version with protective coating	6FB1231-3BM12-7AT0
SIDOOR ATE531 Platform Screen Door Drive
SIDOOR ATE531S, version with protective coating and extended temperature range	6FB1231-3BM11-7AT0
Direct drive
SIDOOR MED280 (max. door weight 280 kg)	6FB1203-0AT12-7DA0
EC geared motor
SIDOOR MEG251 EC geared motor (max. door weight 250 kg)
SIDOOR MEG251 L	6FB1203-5AT00-7MP0
SIDOOR MEG251 R	6FB1203-5AT01-7MP0
Power supplies
Mains transformer	6FB1112-0AT20-2TR0
Additional units
Software Kit	6FB1105-0AT01-6SW0
Service Tool	6FB1105-0AT01-6ST0
Accessories EC direct drive (MED280)
Motor holder	6FB1104-0AT03-0AD0
Mounting brackets
For mounting the motor holder
With tensioning device for mounting the deflector unit and setting the toothed belt to the required tension (large)	6FB1104-0AT05-0AS4
With tensioning device for mounting the deflector unit and setting the toothed belt to the required tension (small)	6FB1104-0AT05-0AS5
Door clutch holder, width 20 mm	6FB1104-0AT05-0AS1
Toothed belt, width 20 mm
Length 4 m	6FB1104-0AT05-0AB0
Length 45 m	6FB1104-0AT06-0AB1
Deflector unit
For attaching the SIDOOR toothed belt and fixing to the door	6FB1104-0AT07-0AS0
Accessories EC direct drive

Конфигурация

The following interfaces are available for operating the SIDOOR ATE250S controller:

Field bus system
Local service terminal
Additional units (SIDOOR Service Tool, SIDOOR Software Kit)
Service button

The following options are available for parameterizing the SIDOOR ATE250S

controller:

Field bus system
Local service terminal
Additional units (SIDOOR Service Tool, SIDOOR Software Kit)
Minimal editor

Особенности

The number of inputs and outputs can be expanded using SIMATIC components, allowing for each individual platform screen door to be equipped as required.
Increased energy efficiency of the platform screen door drive thanks to the highly efficient EC direct drive.
Low noise during operation
Service life with gearless EC direct drive is longer since there are only a small number of components susceptible to wear installed.
Only one motor required for different drive directions left/right
Position switches no longer needed for monitoring door end positions
End-to-end communication via PROFINET e.g. with SIMATIC controllers
One communication system for the whole platform
Failsafe thanks to automatic overload protection

Технические данные

Order number	6FB1231-3BM10-7AT0	6FB1231-3BM12-7AT0	6FB1231-3BM11-7AT0
	SIDOOR ATE530S	SIDOOR ATE530S COATED	SIDOOR ATE531S
General information
Product brand name	SIDOOR
Product designation	Door controller
Product version	ATE530S	ATE530S with protective coating	ATE531 with protective coating and with temperature extension
Optional product expansion	Standard mounting rail holder 6FB1144-0AT00-3AS0
Manufacturer's article no. of the usable motor	6FB1203-0AT12-7DA0
Manufacturer's article no. of the usable power supply unit	6FB1112-0AT20-2TR0
Installation type/mounting
Installation and mounting instructions	No direct exposure to the sun
Supply voltage
Type of power supply	via SIDOOR network transformer or via DC
Rated value (DC)	36 V; With MED280: At 24 V DC max. door speed of 500 mm/s, at 28.8 V DC max. door speed of 800 mm/s. With MEG251: At 24 V DC max. door speed of 500 mm/s, at 28.8 V DC max. door speed of 750 mm/s
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	37.1 V
Power
Active power input	80 W
Active power input, max.	540 W
Active power input (standby mode)	7 W
Digital inputs
Control inputs isolated	Yes
Control inputs p-switching	Yes
Fuse protection at DC end (recommendation)	Use of a circuit breaker in the supply path according to 60898-1, 8A, C-characteristic type SIEMENS: 5SY4108-7 or 5SY4108-7KK11
Input voltage
● per DC input, min.	10 V; Observe polarity !
● per DC input, max.	28 V; Observe polarity !
Input current
● per DC input, min.	3 mA
● per DC input, max.	15 mA
Digital outputs
short-circuit proof	Yes
Overload-proof	Yes
Remark	Ensure correct polarity! CAUTION: Do not supply with external voltage!
Output voltage
● Output voltage (DC)	24 V
Output current
● For output (24 V DC), max.	400 mA
Relay outputs
Switching capacity of contacts
— at 30 V DC, min.	0.01 A
— at 30 V DC, max.	0.5 A
Mechanical data
Opening width of door, min.	0.35 m
Opening width of door, max.	5 m
Weight of door, max.	280 kg
Operating cycle frequency of door, max.	180 1/h
Kinetic energy, max.	75 J
Interfaces
Interfaces/bus type	PROFINET according to Conformance Class A, B, C; integrated switch for linear and ring structure
Isolation
Overvoltage category	2
Degree and class of protection
IP degree of protection	IP20
Standards, approvals, certificates
CE mark	Yes		No
UL approval	No
TÜV Inspectorate approval	Yes
Standard for EMC	EN 61000-6-2 / EN 61000-6-4 / EN 61326-3-1 / EN 50121-3-2 / EN50121-4 / EN50121-5
Standard for safety	EN 60950-1 / EN 60335-1 / EN 14752 / EN ISO 13849-1 Cat. 2 PL d / IEC 62061: SIL 2	EN 60950-1 / EN 60335-1 / EN 14752 / EN ISO 13849-1 Cat. 2 PL d / IEC 62061: SIL2	EN 60950-1 / EN 60335-1 / EN 14752 / EN ISO 13849-1 Cat. 2 PL d / IEC 62061: SIL 2
Ambient conditions
Ambient temperature during operation
● min.	-25 °C
● max.	50 °C		70 °C
● Remark	Screw control device thermally conductive onto a metallic mounting surface or standard rail mounting, otherwise the maximum operating temperature is only 40 °C		To ensure compliance with MTBF value, ensure that the ambient temperature is less than 50 °C for 90 % of operating time and screw the control unit onto a metallic mounting surface in a manner that ensures thermal conductivity or use standard rail mounting. At operating temperatures above 50 °C, the maximum output current of the 24 V DC output is a maximum of 0.1 A and the maximum number of cycles is 60/h.
Ambient temperature during storage/transportation
● Storage, min.	-40 °C
● Storage, max.	85 °C
Air pressure acc. to IEC 60068-2-13
● Installation altitude above sea level, max.	2 000 m
Relative humidity
● No condensation, min.	10 %
● No condensation, max.	93 %
Mechanics/material
Service life
● Mean time between failures (MTBF)	13 y
Dimensions
Width	320 mm
Height	60 mm
Depth	80 mm

Дальнейшая информация

For further product details, please refer to

"SIDOOR ATE530S/ATE531S" system manual, https://support.industry.siemens.com/cs/de/en/view/109480354

"Controller for platform doors" operating instructions, https://support.industry.siemens.com/cs/ww/en/view/109477187

"SIDOOR EC Motor" operating instructions, https://support.industry.siemens.com/cs/ww/en/view/109474333
