SIDOOR ATD400S platform screen door drive

SIDOOR ATD400S Platform Screen Door Drive

The SIDOOR ATD400S Platform Screen Door Drive enables the quick, easy and versatile installation, configuration and operation of a wide range of platform screen door drive systems.

Up to two SIDOOR ATD400S Platform Screen Door Drives can be operated via PROFIBUS through the upstream connection of an AT‑EB expansion unit.

Relay module design
For dynamic door weights up to 400 kg
Automatic door weight detection
Operating temperature -20 to +50 °C
Flexible motor management (three different motor types), automatic detection
Opening width 0.3 to 4 m
Emergency power input via special emergency power module 24 V DC ± 15 %
Output stage short-circuit-proof
Vandal-proof
IP54 degree of protection for 180 to 400 kg motor versions, gear unit IP40
PROFIBUS connection (on request)

Область применения

The SIDOOR ATD400S Platform Screen Door Drive is an intelligent door drive system which enables platform screen doors to be opened and closed at adjustable speeds and accelerations.

It is not suitable for stand-alone operation. External commands are only accepted via the serial interface. The SIDOOR ATD400S platform screen door drive is always operated in conjunction with the AT‑EB expansion unit, see "Expansion units".

The maintenance-free, variable speed drive unit comprises a DC motor with non-self-locking gearing.

Three different motors are available:

SIDOOR M2 geared motor (24 V DC/1.8 A; motor for max. total door leaf weight of 120 kg)
SIDOOR M3 geared motor (30 V DC/4.0 A; motor for max. total door leaf weight of 180 kg)
SIDOOR M4 geared motor (30 V DC/4.0 A; motor for max. total door leaf weight of 400 kg)

They must be ordered separately, see "Geared motors".

Operation of the door drive does not require a limit switch. The door width and the "OPEN"/"CLOSE" positions are determined automatically.

The current operating states are indicated by a 7‑segment display directly in the SIDOOR ATD400S Platform Screen Door Drive. They can also be displayed externally with the aid of the Software Kit or Service Tool, see "Additional Units".

Power transmission is via a toothed belt, which passes over a deflector unit and can be fitted with two door clutch holders. The accessory parts are not included in the scope of supply, see "Accessories".

This enables handling of both one-sided and centrally opening doors.

Дизайн

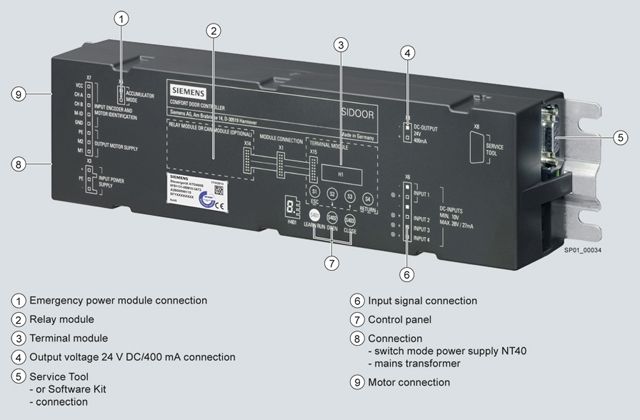

The SIDOOR ATD400S Platform Screen Door Drive system consists of a number of components:

Version	Type	See
Controller
SIDOOR ATD400S platform screen door drive (incl. terminal module)	6FB1131-0BM10-3AT3
The following individual components must be ordered separately:
AT-EB expansion unit	6FB1135-2BM10-0CP0	"Expansion units"
Power supplies		"Power supplies"
Mains transformer	6FB1112-0AT20-2TR0
Switch mode power supply NT40	6FB1112-0AT20-3PS0
Additional units that enable universal implementation and maintenance of the door drive system		"Additional units"
Software Kit	6FB1105-0AT01-6SW0
Service Tool	6FB1105-0AT01-6ST0
Emergency power module	6FB1115-0AT10-4CP0
DC geared motors		"Geared motors"
SIDOOR M2 geared motors (max. door weight 120 kg)
SIDOOR M2 L (pinion left)	6FB1103-0AT10-5MA0
SIDOOR M2 R (pinion right)	6FB1103-0AT11-5MA0
SIDOOR M3 geared motors (max. door weight 180 kg)
SIDOOR M3 L (pinion left)	6FB1103-0AT11-4MB0
SIDOOR M3 R (pinion right)	6FB1103-0AT10-4MB0
SIDOOR M4 geared motors (max. door weight 400 kg)
SIDOOR M4 L (pinion left)	6FB1103-0AT10-3MC0
SIDOOR M4 R (pinion right)	6FB1103-0AT11-3MC0
Accessories for the complete system see also overview diagram → "For elevators"		"Accessories"
Rubber-metal anti-vibration mounts for low-noise operation of the door drive system
for SIDOOR M2 and SIDOOR M3 geared motors	6FB1104-0AT02-0AD0
for the SIDOOR M4 geared motor	6FB1104-0AT01-0AD0
Mounting bracket
for the SIDOOR M2 to SIDOOR M4 geared motors for flexible accommodation of the rubber-bonded metal	6FB1104-0AT01-0AS0
for the deflector unit for setting the toothed belt to the required tension	6FB1104-0AT02-0AS0
Door clutch holder for connecting a door leaf to the toothed belt	6FB1104-0AT01-0CP0
Deflector unit for the toothed belt STS, for attaching to the door system	6FB1104-0AT03-0AS0
Toothed belt STS as a connection between the door system and the end positions of the door
Length 4 m	6FB1104-0AT01-0AB0
Length 45 m	6FB1104-0AT02-0AB0

Конфигурация

During initial commissioning, please note the following:

For mechanical installation and configuration, see the "SIDOOR Door Control Systems AT40, ATD400K, ATD400S, ATD400V, ATD400W" manual.http://support.automation.siemens.com/WW/view/de/58531074
Electrical configuration and commissioning:
- Push the door into the "CLOSED" position.
- Open the device cover
- Plug in the motor connector
- Connect NT40 switch mode power supply to 230 V AC mains supply
- Press and hold the learn run button
- Connect the NT40 switch mode power supply output to the input of the SIDOOR ATD400S Platform Screen Door Drive
- The learn run starts automatically and the learn run button can be released.
- On completion of the learn run, the door is in the "CLOSED" position and the 7-segment display indicates "u".
- The door can now be moved via the "OPEN" and "CLOSE" buttons with the default profile.

Особенности

1-button operation for the entire commissioning process
Optimum and stable drive characteristics
Reduced service requirements and costs
SIDOOR User Software (part of the Software Kit, not included in the scope of delivery → see "Additional units") enables user-friendly operation and detailed diagnostics.
Integrated terminal module enables simple setup and diagnostics via an event and statistics memory.
Small footprint thanks to compact design
Automated functions for enhanced safety

Програмирование

The Software Kit is available as an additional unit (see "Additional units") and allows quick and easy updating of the firmware using the Siemens HCS12 Firmware Loader.

User-friendly parameter setting and oscilloscope function is carried out via the SIDOOR User Software (part of the Software Kit).

Технические данные

Order number		6FB1131-0BM10-3AT3
General technical data:
product brandname		SIDOOR
Product designation		Door controller
Design of the product		ATD400S
Manufacturer's article number usable
● of the motor		6FB1103-0AT10-5MA0, 6FB1103-0AT11-5MA0, 6FB1103-0AT10-4MB0, 6FB1103-0AT11-4MB0, 6FB1103-0AT10-3MC0, 6FB1103-0AT11-3MC0
● of power supply unit		6FB1112-0AT20-2TR0
Supply voltage:
Type of voltage supply		via SIDOOR mains transformer
Consumed current maximum	A	10
Consumed active power
● rated value	W	80
— maximum	W	540
● in standby mode rated value	W	5
Inputs/ Outputs:
Input voltage per DC input	V	10 ... 28
Input current per DC input	mA	9 ... 27
Product feature
● Isolated control inputs		Yes
● Control inputs switching to P potential		Yes
Output voltage at DC	V	24
Output current
● at 24 V DC output maximum	mA	400
Property of the 24 V DC output
● Short-circuit proof		Yes
● Note		Ensure correct polarity! CAUTION: Do not supply with external voltage!
Door-relevant data:
Door opening width	m	0.3 ... 4
Weight of door maximum	kg	400
Operating cycle frequency of door maximum	1/h	180
Communication:
Design of the interface		without
Ambient conditions:
Ambient temperature
● during operation	°C	-20 ... +50
● during operation Note		with reduced power: -25 ... 70 °C
● during storage	°C	-40 ... +50
Ambient temperature class acc. to EN 50155		T3
Relative humidity without condensation	%	10 ... 93
Protection class IP		IP20
Installation/ mounting/ dimensions:
Width	mm	320
Height	mm	60
Depth	mm	80
Standards:
Standard
● for EMC		EN 61000-6-2 / EN 61000-6-4
● for safety		EN ISO 13849-1 Cat. 2 PL d

Дальнейшая информация

For further product details, refer to the

"SIDOOR Door Control Systems AT40, ATD400K, ATD400S, ATD400V, ATD400W" Manual,http://support.automation.siemens.com/WW/view/en/58531074
"SIDOOR Software Kit" Installation Instructions,http://support.automation.siemens.com/WW/view/en/58572351
