Geared motors

Заказные данные
(8)

SIDOOR motors are speed controlled, taking set force and speed limits into account. The gear outlet direction is defined as left or right when viewing the gear unit from the front. Force transmission is via a toothed belt. The toothed belt passes over a deflector pulley and can be fitted with two door clutch holders. This enables it to drive both single-side and central opening doors.

SIDOOR geared motors are available in two technological versions.

1. DC-technology in the DC geared motors version (area of application:
- Interior railway doors
  SIDOOR geared motors are a combination of gear unit, motor, and encoder. They are easy to connect to the controller via the interface provided and are automatically detected during commissioning. The variable speed drive unit comprises a speed-controlled DC motor with non-self-locking gearing.
2. EC-technology in the EC direct drive version (area of application:
- Interior railway doors
  SIDOOR direct drives are a combination of motor and sensor. They are easy to connect to the controller via the interface provided and are automatically detected during commissioning. The maintenance-free drive unit consists of a gearless, speed-controlled, electronically commutated motor. The EC direct drive can be fitted in various mounting orientations, facilitating reduced inventory management and minimizing assets.
- EC geared motors
  EC geared motors are electronically commutated DC motors with non-self-locking gearing and are speed-controlled. They are easy to connect to the controller via the interface provided and are automatically detected during commissioning. Due to the brushless drive technology, EC geared motors are subject to less abrasion compared with DC geared motors and thus have a longer service life. There is also less commutation noise thanks to the brushless technology which means there is lower noise generation than with DC geared motors.

Motors for interior railway door drives

The following DC geared motors are available for interior railway door drives. They should be selected according to the dynamic door weight.

SIDOOR MDG180 geared motors, compliance with fire protection standard EN 45545-2 (max. door weight 180 kg)
- SIDOOR MDG180 L EN 45545-2 (pinion left) 6FB1103‑0AT16‑4MB0
- SIDOOR MDG180 R EN 45545-2 (pinion right) 6FB1103‑0AT15‑4MB0
SIDOOR M3 geared motors (max. door weight 180 kg)
- SIDOOR M3 L (pinion left) 6FB1103‑0AT10‑4MB0
- SIDOOR M3 R (pinion right) 6FB1103‑0AT11‑4MB0
SIDOOR M4 geared motors (max. door weight 400 kg)
- SIDOOR M4 L (pinion left) 6FB1103‑0AT10‑3MC0
- SIDOOR M4 R (pinion right) 6FB1103‑0AT11‑3MC0

Motors for platform screen door drives

EC technology:

SIDOOR MEG251 geared motors (max. door weight 250 kg)
- SIDOOR MEG251 L (pinion left), 6FB1203-5AT00-7MP0
- SIDOOR MEG251 R (pinion right), 6FB1203-5AT01-7MP0

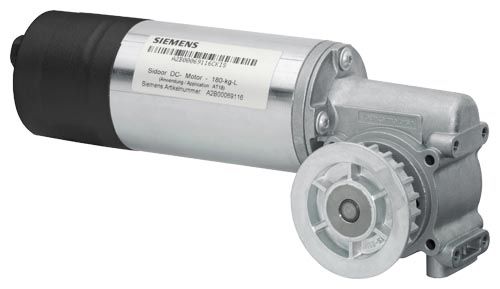

Photo: DC geared motor SIDOOR M3 L, 6FB1103‑0AT10‑4MB0 or SIDOOR MDG180 L, 6FB1103‑0AT16‑4MB0. (version with pinion left)

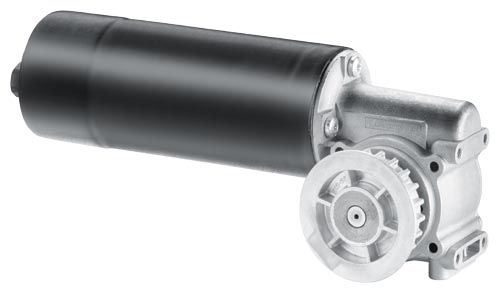

Photo: EC geared motor SIDOOR MEG251 L, 6FB1203-5AT00-7MP0. (version with pinion left)

Технические данные

Order number	6FB1103-0AT16-4MB0	6FB1103-0AT15-4MB0	6FB1103-0AT10-4MB0	6FB1103-0AT11-4MB0	6FB1103-0AT10-3MC0	6FB1103-0AT11-3MC0	6FB1203-5AT00-7MP0	6FB1203-5AT01-7MP0
	SIDOOR MDG180 L DIN EN 45545-2	SIDOOR MDG180 R DIN EN 45545-2	SIDOOR M3 L	SIDOOR M3 R	SIDOOR M4 L	SIDOOR M4 R	SIDOOR MEG251 L	SIDOOR MEG251 R
General information
Product brand name	SIDOOR
Product designation	Motor for door control
Product version	MDG180 L DIN EN 45545-2	MDG180 R DIN EN 45545-2	M3 L	M3 R	M4 L	M4 R	MEG251 L	MEG251 R
Supply voltage
Supply voltage (DC)	30 V						24 V
Input current
Operational current (rated value)	4 A						6.8 A
Power
Active power input	120 W						163 W
Mechanical data
Torque of the rotary operating mechanism (rated value)	3 N·m						4.1 N·m
Speed, max.	0.65 m/s				0.75 m/s
Gear ratio	15
Number of pulses per revolution, max.	100
Weight of door, max.	180 kg				400 kg		250 kg
Degree and class of protection
IP degree of protection
● of the motor	IP54						IP40
● of the gear unit	IP40
Ambient conditions
Ambient temperature during operation
● min.	-20 °C
● max.	50 °C						70 °C
Ambient temperature during storage/transportation
● Storage, min.	-40 °C
● Storage, max.	85 °C
Fire resistance
● Behavior in fire	complies with EN 45545-2 Hazard Level HL3
Dimensions
Height of motor	98 mm				115 mm		100 mm
Length of motor	236 mm				275 mm		249 mm
Diameter of motor	63 mm						62 mm
Width of gear unit, including drive pinion	85 mm				105 mm		86 mm

Дополнительно

The following accessories are available for the SIDOOR MDG180 EN 45545-2 and SIDOOR MEG251 EC geared motors:

Rubber-metal anti-vibration mount for low-noise door operation, 6FB1104‑0AT02‑0AD0
Mounting bracket for the geared motor mount for flexible accommodation of the rubber-bonded metal 6FB1104‑0AT01‑0AS0

See "Accessories".

Дальнейшая информация

For further product details, please refer to

"SIDOOR DC geared motors" operating instructions, http://support.automation.siemens.com/WW/view/en/64331791
"SIDOOR ATE530S" system manual, https://support.industry.siemens.com/cs/de/en/view/109480354
"Controller for platform doors" operating instructions,https://support.industry.siemens.com/cs/ww/en/view/109477187
"SIDOOR EC Motor" operating instructions, http://support.industry.siemens.com/cs/ww/en/view/109474333
