  SIDOOR expansion units are electronic devices that are always used together with at least one SIDOOR controller. They expand the range of functions, and are connected to the controller via an interface.

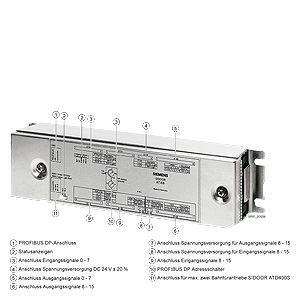

  SIDOOR AT‑EB expansion unit



  SIDOOR AT‑EB expansion unit for SIDOOR automatic door controllers

  The SIDOOR AT‑EB expansion unit enables SIDOOR controllers to be connected via a PROFIBUS DP interface, and makes additional input and output signals available.

  A door system with up to two door leaves, controlled by separate movement commands, can be moved optimally and according to requirements. The travel curve and door position are evaluated during movements.

  • PROFIBUS DP V0 slave
  • 2 x 8 digital input signals
  • 2 x 8 digital output signals (15 x 1 A/1 x 3 A)
  • LED at each input and output
  • Operating temperature -20 to +50 °C
  • Degree of protection IP20

  Область применения

  The SIDOOR AT‑EB expansion unit enables up to two SIDOOR controllers to be controlled separately, and the door leaves to be opened and closed according to the system requirements.

  The connected SIDOOR ATD400S or ATE250 platform screen door drive can drive both single-sided and centrally opening doors.

  All SIDOOR platform screen doors can be opened simultaneously via the PROFIBUS DP as soon as the train reaches its end position in the station.

  Application-specific input and output signals are controlled and evaluated via the SIDOOR AT‑EB expansion unit, the input and output signal states are displayed by LEDs.

  Дизайн

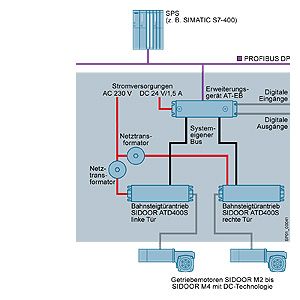

  Door control system with the use of DC technology



  Door control system with the use of DC technology

  Depending on the technology used, in addition to the SIDOOR AT‑EB expansion unit, the following components have to be ordered for the overall system:

  Version	Type	See
  SIDOOR AT‑EB expansion unit (version 1.10)	6FB1135‑2BM10‑0CP0
  For DC technology, the following individual components must be ordered separately:
  Controller		"Controllers"
  SIDOOR ATD400S Platform Screen Door Drive with DC technology	6FB1131‑0BM10‑3AT3
  Power supply units		"Power supply units"
  Mains transformer	6FB1112‑0AT20‑2TR0
  Additional units for enabling the universal use and maintenance of the door drive system		"Additional units"
  Software Kit	6FB1105‑0AT01‑6SW0
  Service Tool	6FB1105‑0AT01‑6ST0
  Emergency power module	6FB1115‑0AT10‑4CP0
  DC geared motors		"Geared motors"
  SIDOOR M2 geared motors (max. door weight of 120 kg)
  SIDOOR M2 L (pinion left)	6FB1103‑0AT10‑5MA0
  SIDOOR M2 R (pinion right)	6FB1103‑0AT11‑5MA0
  SIDOOR M3 geared motors (max. door weight of 180 kg)
  SIDOOR M3 L (pinion left)	6FB1103‑0AT10‑4MB0
  SIDOOR M3 R (pinion right)	6FB1103‑0AT11‑4MB0
  SIDOOR M4 geared motors (max. door weight of 400 kg)
  SIDOOR M4 L (pinion left)	6FB1103‑0AT10‑3MC0
  SIDOOR M4 R (pinion right)	6FB1103‑0AT11‑3MC0
  Accessories for the overall system see also the overview diagram → "for elevators"		"Accessories"
  Rubber-metal anti-vibration mounts for low-noise operation of the door drive system
  for SIDOOR M2 and SIDOOR M3 geared motors	6FB1104‑0AT02‑0AD0
  for the SIDOOR M4 geared motor	6FB1104‑0AT01‑0AD0
  Mounting bracket
  for SIDOOR M2 to SIDOOR M4 geared motors for flexible accommodation of the rubber-bonded metal	6FB1104‑0AT01‑0AS0
  for the deflector unit for setting the toothed belt to the required tension	6FB1104‑0AT02‑0AS0
  Door clutch holder for connecting the respective door leaf with the toothed belt.	6FB1104‑0AT01‑0CP0
  Deflector unit for the toothed belt STS, for attaching to the door system	6FB1104‑0AT03‑0AS0
  Toothed belt STS as a connection between the door system and the end positions of the door
  Length 4 m	6FB1104‑0AT01‑0AB0
  Length 45 m	6FB1104‑0AT02‑0AB0
  For EC technology, the following individual components must be ordered separately:
  Controller		"Controllers"
  SIDOOR ATD250S Platform Screen Door Drive with EC technology	6FB1131‑0BM10‑3AT3
  Power supply units		"Power supply units"
  Mains transformer	6FB1112‑0AT20‑2TR0
  Additional units for enabling the universal use and maintenance of the door drive system		"Additional units"
  Software Kit	6FB1105‑0AT01‑6SW0
  Service Tool	6FB1105‑0AT01‑6ST0
  EC geared motors		"Geared motors"
  SIDOOR MEG250 geared motors (max. door weight of 250 kg)
  SIDOOR MEG250 L (pinion left)	6FB1233‑0BM00‑0MP0
  SIDOOR MEG250 R (pinion right)	6FB1233‑0BM01‑0MP0
  Accessories for the overall system see also the overview diagram → "for elevators"		"Accessories"
  Rubber-metal anti-vibration mounts for low-noise operation of the door drive system
  for SIDOOR MEG250 geared motors	6FB1104‑0AT02‑0AD0
  Mounting bracket
  for SIDOOR MEG250 geared motors, for flexible accommodation of the rubber-bonded metal	6FB1104‑0AT01‑0AS0
  for the deflector unit for setting the toothed belt to the required tension	6FB1104‑0AT02‑0AS0
  Door clutch holder for connecting the respective door leaf with the toothed belt.	6FB1104‑0AT01‑0CP0
  Deflector unit for the toothed belt STS, for attaching to the door system	6FB1104‑0AT03‑0AS0
  Toothed belt STS as a connection between the door system and the end positions of the door
  Length 4 m	6FB1104‑0AT01‑0AB0
  Length 45 m	6FB1104‑0AT02‑0AB0





  Конфигурация

  During initial commissioning, please note the following:

  • Mechanical installation and configuration:
    The PROFIBUS DP address of the SIDOOR AT‑EB expansion unit is set with rotary switches. The platform screen door drive systems must be installed, see the "SIDOOR Automatic Door Controllers AT40, ATD400K, ATD400S, ATD400V, ATD400W" manual, http://support.automation.siemens.com/WW/view/en/58531074 and connected to the SIDOOR AT‑EB expansion unit by a D‑SUB9 cable.
  • Electrical configuration and commissioning:
    Seethe manual "SIDOOR Automatic Door Controllers AT40, ATD400K, ATD400S, ATD400V, ATD400W", http://support.automation.siemens.com/WW/view/en/58531074
    and "SIDOOR ATE250S - Application Platform Screen Doors" operating instructions, http://support.automation.siemens.com/WW/view/en/68668484/133300.
    The door controllers must be commissioned individually in accordance with the commissioning guide. The platform screen door drive systems are controlled and monitored by the SIDOOR AT‑EB expansion unit via PROFIBUS DP.

  Особенности

  • Expansion of the range of functions of SIDOOR ATD400S and SIDOOR ATE250S platform screen door drives
  • PROFIBUS DP connection to the SIDOOR controllers
  • Reduced service requirements and costs
  • Small footprint thanks to compact design
  • Automated functions for enhanced safety

  Програмирование

  The SIDOOR AT‑EB expansion unit is supplied already programmed.

  Технические данные

  Order number			6FB1135-2BM10-0CP0
  Product designation			SIDOOR expansion device AT-EB basic type
  General technical data:
  Supply voltage / at DC		V	24
  Relative symmetrical tolerance / of the supply voltage		%	20
  Number of DC outputs / with 24 V supply
  ● with 1 A output current			15
  ● with 3 A output current			1
  Input voltage / per DC input		V	10 ... 28
  Property of the 24 V DC output
  ● Note			CAUTION: Do not supply with external voltage !
  ● Short-circuit proof			Yes
  ● with overload withstand capability			Yes
  Consumed active power / maximum rated value / Note			Only AT-EB without the outputs
  Input current / per DC input		mA	9 ... 27
  Standard for interfaces / for communication			PROFIBUS DP-V0
  Design of the interface			RS 485 interface (2x 9-pin Sub-D) proprietary
  Product feature
  ● Isolated control inputs / Note			In two groups of 8 input signals each
  ● Isolated control inputs			Yes
  ● Control inputs switching to P potential			Yes
  ● SELV			Yes
  ● PELV			No
  Firmware version			V1.10
  Type of address setting / of the PROFIBUS interface			Adjustable from 1 to 126 with two rotary switches (default 125)
  Ambient temperature
  ● during operation		°C	-20 ... +50
  ● during storage		°C	-40 ... +85
  Protection class IP			IP20
  Relative humidity / without condensation		%	10 ... 95
  Width		mm	320
  Height		mm	60
  Depth		mm	80
  Standards:
  Certificate of suitability
  ● RoHS conformity			Yes
  ● CE marking			Yes
  Standard / for EMC			EN 61000-6-2 / EN 61000-6-4




  Дальнейшая информация

  For•further product details, refer to the

  • "SIDOOR Automatic Door Controllers AT40, ATD400K, ATD400S, ATD400V, ATD400W" Manual, http://support.automation.siemens.com/WW/view/en/58531074
  • "SIDOOR ATE250S - Application Platform Screen Doors" Operating Instructions, http://support.automation.siemens.com/WW/view/en/68668484/133300
