MDS D117

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы

  The MDS D117 is a passive, maintenance-free transponder based on ISO 15693. It is small and compact and can be mounted on metal using adhesive.

  The mobile data memory can be operated with the SIMATIC RF300 (ISO mode) and SIMATIC RF200 RFID systems. When operated with the RF350M mobile handheld terminal, an external antenna must be used.


  Область применения

  For direct identification of small metallic workpieces and workpiece holders.



  Size comparison of match to MDS D117

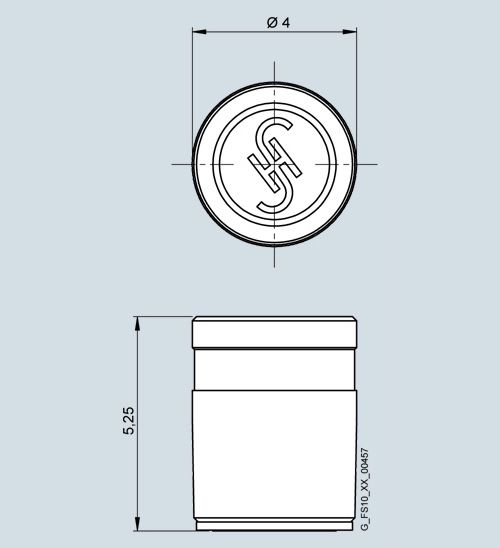

  Чертеж



  MDS D117 transponder

  Технические данные

  Order number		6GT2600-0AG00
  Product type designation		MDS D117 transponder
  Suitability for operation		RF200, RF300
  Wireless frequencies
  Operating frequency Rated value		13.56 MHz
  Electrical data
  Range maximum		4 mm; range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964
  Protocol with radio transmission		ISO 15693
  Transfer rate with radio transmission maximum		26.5 kbit/s
  Product feature multitag-capable		Yes
  Product component Backup battery		No
  Memory
  Type of memory		EEPROM
  Storage capacity of the user memory		112 byte
  Type of memory organization		UID (fixed code) 8 bytes, user memory 112 bytes, configuration memory 8 bytes
  Number of read cycles at ambient temperature < 40 °C maximum		100 000 000 000 000
  Number of write cycles at ambient temperature < 40 °C maximum		1 000 000
  Data retention time at ambient temperature < 40 °C not less than		10 y
  Property of memory		Block-by-block write protection of the user memory
  Type of transponder chip used		NXP I-Code SLI
  Mechanical data
  Material		PPS
  Color		black
  Mounting distance relating to metal surfaces recommended minimum		0 mm
  Permitted ambient conditions
  Ambient temperature
  ● during read/write access		-25 ... +85 °C
  ● outside the read/write area		-40 ... +125 °C
  ● during storage		-40 ... +125 °C
  Protection class IP		IP68 / IPx9K
  Shock resistance		According to DIN EN 60721-3-7 Class 7 M3
  Shock acceleration		1 000 m/s²
  Vibrational acceleration		200 m/s²
  Design, dimensions and weight
  Height		5.2 mm
  Diameter		4 mm
  Net weight		1 g
  Mounting type		gluing
  Product properties, functions, components general
  Product feature
  ● printable		No
  Standards, specifications, approvals
  MTBF		228 y
