MDS D460

• Заказные данные
  (1)
• Аксессуары
  (1)
• Информационные материалы

  Информационные материалы

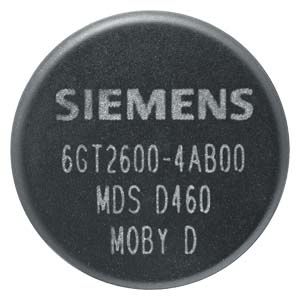

  MDS D460 является пассивный, не требующий обслуживания мобильный носитель информации основанный на стандарте ISO  15693 и технологии FRAM.

  Мобильный носитель информации может быть использован  RFID системой MOBY D , а также SIMATIC RF300 (ISO mode).


  Область применения

  Идентификация для малых сборочных линий

  Чертеж



  Технические данные

  Order number		6GT2600-4AB00
  Product type designation		MDS D460 transponder
  Suitability for operation		RF200, RF300, MOBY D
  Wireless frequencies
  Operating frequency Rated value		13.56 MHz
  Electrical data
  Range maximum		160 mm; range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964
  Protocol with radio transmission		ISO 15693
  Transfer rate with radio transmission maximum		26.5 kbit/s
  Product feature multitag-capable		Yes
  Product component Backup battery		No
  Memory
  Type of memory		FRAM
  Storage capacity of the user memory		2 000 byte
  Type of memory organization		UID (fixed code) 8 bytes, user memory 2000 bytes, configuration memory 40 bytes
  Number of read cycles at ambient temperature < 40 °C maximum		1 000 000 000 000
  Number of write cycles at ambient temperature < 40 °C maximum		1 000 000 000 000
  Data retention time at ambient temperature < 40 °C not less than		10 y
  Property of memory		Block-by-block write protection of the user memory
  Type of transponder chip used		Fujitsu MB89R118
  Mechanical data
  Material		Epoxy resin
  Color		black
  Mounting distance relating to metal surfaces recommended minimum		10 mm
  Permitted ambient conditions
  Ambient temperature
  ● during read/write access		-25 ... +85 °C
  ● outside the read/write area		-40 ... +100 °C
  ● during storage		-40 ... +100 °C
  Protection class IP		IP67 / IPx9K
  Shock resistance		According to DIN EN 60721-3-7 Class 7 M3
  Shock acceleration		500 m/s²
  Vibrational acceleration		200 m/s²
  Design, dimensions and weight
  Height		3 mm
  Diameter		16 mm
  Net weight		3 g
  Mounting type		patching, gluing
  Product properties, functions, components general
  Product feature
  ● printable		No
  Standards, specifications, approvals
  MTBF		228 y
  Accessories
  accessories		Mounting support and spacer
