MDS D423

• Заказные данные
  (1)
• Аксессуары
  (1)
• Информационные материалы

  Информационные материалы

  The MDS D423 is a passive (maintenance-free) transponder based on ISO 15693, with FRAM technology.

  The transponder can be operated with the SIMATIC RF200 and SIMATIC RF300 (ISO mode) RFID systems.

  Область применения

  The particularly compact transponder of small design can be flush-mounted in metal and is thus suitable for identifying metallic workpiece holders, workpieces or containers.

  As a result of its high IP68 / IPx9K degree of protection, it is suitable for use in particularly harsh environments such as the passage through washers.

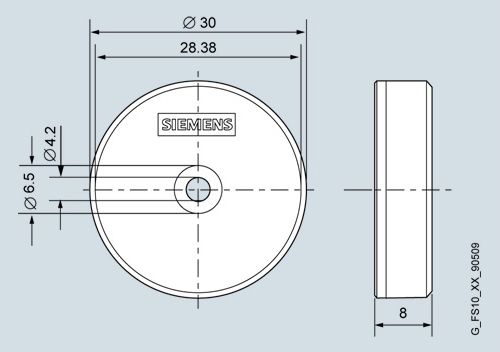

  Чертеж



  MDS D423 transponder

  Технические данные

  Order number		6GT2600-4AA00
  Product type designation		MDS D423 transponder
  Suitability for operation		RF200, RF300
  Wireless frequencies
  Operating frequency Rated value		13.56 MHz
  Electrical data
  Range maximum		80 mm; range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964
  Protocol with radio transmission		ISO 15693
  Transfer rate with radio transmission maximum		26.5 kbit/s
  Product feature multitag-capable		Yes
  Product component Backup battery		No
  Memory
  Type of memory		FRAM
  Storage capacity of the user memory		2 000 byte
  Type of memory organization		UID (fixed code) 8 bytes, user memory 2000 bytes, configuration memory 40 bytes
  Number of read cycles at ambient temperature < 40 °C maximum		1 000 000 000 000
  Number of write cycles at ambient temperature < 40 °C maximum		1 000 000 000 000
  Data retention time at ambient temperature < 40 °C not less than		10 y
  Property of memory		Block-by-block write protection of the user memory
  Type of transponder chip used		Fujitsu MB89R118
  Mechanical data
  Material		PPS
  Color		black
  Tightening torque of the screw for securing the equipment maximum		1 N·m
  Mounting distance relating to metal surfaces recommended minimum		0 mm
  Permitted ambient conditions
  Ambient temperature
  ● during read/write access		-25 ... +85 °C
  ● outside the read/write area		-40 ... +100 °C
  ● during storage		-40 ... +100 °C
  Protection class IP		IP68 / IPx9K
  Shock resistance		According to DIN EN 60721-3-7 Class 7 M3
  Shock acceleration		500 m/s²
  Vibrational acceleration		200 m/s²
  Design, dimensions and weight
  Height		8 mm
  Diameter		30 mm
  Net weight		15 g
  Mounting type		M4 countersunk screw
  Product properties, functions, components general
  Product feature
  ● silicon-free		Yes
  ● printable		No
  Standards, specifications, approvals
  MTBF		228 y
  Accessories
  accessories		mounting hood
