SIMATIC RF370T

• Заказные данные
  (2)
• Информационные материалы

  Информационные материалы

  Универсальная память данных в формате кредитной карточки (ферроэлектрическое 32 или 64  + 24 байта ЭСППЗУ), размеры 75 mm x 75 mm x 40 mm.

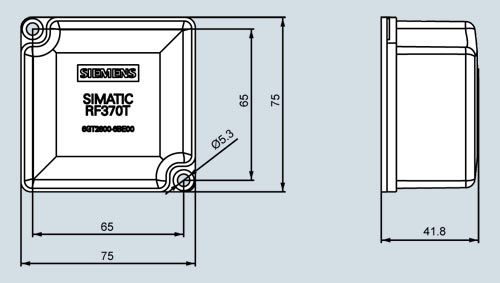

  Чертеж



  Технические данные

  Order number		6GT2800-5BE00	6GT2800-6BE00
  Product type designation		RF370T transponder	RF370T transponder
  Suitability for operation		RF300	RF300
  Wireless frequencies
  Operating frequency Rated value		13.56 MHz	13.56 MHz
  Electrical data
  Range maximum		135 mm; range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964	135 mm; range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964
  Protocol with radio transmission		RF300-specific	RF300-specific
  Transfer rate with radio transmission maximum		106 kbit/s	106 kbit/s
  Product feature multitag-capable		Yes	Yes
  Product component Backup battery		No	No
  Memory
  Type of memory		FRAM/EEPROM	FRAM/EEPROM
  Storage capacity of the user memory		32 765 byte	65 277 byte
  Type of memory organization		UID (fixed code) 4 bytes, user memory 32765 bytes, OTP memory 20 bytes	UID (fixed code) 4 bytes, user memory 65277 bytes, OTP memory 20 bytes
  Number of read cycles at ambient temperature < 40 °C maximum		10 000 000 000	10 000 000 000
  Number of write cycles at ambient temperature < 40 °C maximum		10 000 000 000	10 000 000 000
  Data retention time at ambient temperature < 40 °C not less than		10 y	10 y
  Property of memory		Block-by-block write protection of the OTP memory	Block-by-block write protection of the OTP memory
  Mechanical data
  Material		PA12	PA12
  Color		anthracite	anthracite
  Tightening torque of the screw for securing the equipment maximum		1.2 N·m	1.2 N·m
  Mounting distance relating to metal surfaces recommended minimum		0 mm	0 mm
  Permitted ambient conditions
  Ambient temperature
  ● during read/write access		-25 ... +85 °C	-25 ... +85 °C
  ● outside the read/write area		-40 ... +85 °C	-40 ... +85 °C
  ● during storage		-40 ... +85 °C	-40 ... +85 °C
  Protection class IP		IP68	IP68
  Shock resistance		According to DIN EN 60721-3-7 Class 7 M3	According to DIN EN 60721-3-7 Class 7 M3
  Shock acceleration		500 m/s²	500 m/s²
  Vibrational acceleration		200 m/s²	200 m/s²
  Design, dimensions and weight
  Width		75 mm	75 mm
  Height		41 mm	41 mm
  Depth		75 mm	75 mm
  Net weight		200 g	200 g
  Mounting type		2 x M5 screws	2 x M5 screws
  Product properties, functions, components general
  Product feature
  ● silicon-free		Yes	Yes
  ● printable		No	No
  Standards, specifications, approvals
  MTBF		1 200 y	1 200 y
