SIMATIC RF360T

• Заказные данные
  (2)
• Аксессуары
  (2)
• Информационные материалы

  Информационные материалы

  Универсальная память данных в формате кредитной карточки (ферроэлектрическое ОЗУ 8 Кбайт + 4 байта ЭСППЗУ).

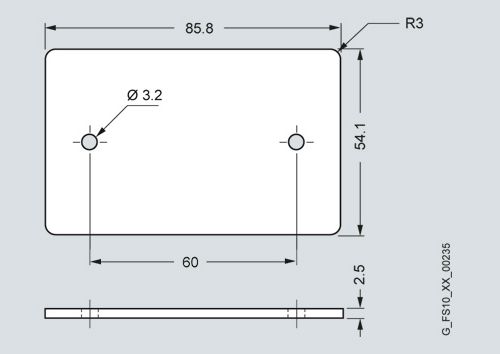

  Чертеж



  Технические данные

  Order number		6GT2800-4AC00	6GT2800-5AC00
  Product type designation		RF360T transponder	RF360T transponder
  Suitability for operation		RF300	RF300
  Wireless frequencies
  Operating frequency Rated value		13.56 MHz	13.56 MHz
  Electrical data
  Range maximum		150 mm; range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964	150 mm; range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964
  Protocol with radio transmission		RF300-specific	RF300-specific
  Transfer rate with radio transmission maximum		106 kbit/s	106 kbit/s
  Product feature multitag-capable		Yes	Yes
  Product component Backup battery		No	No
  Memory
  Type of memory		FRAM/EEPROM	FRAM/EEPROM
  Storage capacity of the user memory		8 189 byte	32 765 byte
  Type of memory organization		UID (fixed code) 4 bytes, user memory 8189 bytes, OTP memory 20 bytes	UID (fixed code) 4 bytes, user memory 32765 bytes, OTP memory 20 bytes
  Number of read cycles at ambient temperature < 40 °C maximum		10 000 000 000	10 000 000 000
  Number of write cycles at ambient temperature < 40 °C maximum		10 000 000 000	10 000 000 000
  Data retention time at ambient temperature < 40 °C not less than		10 y	10 y
  Property of memory		Block-by-block write protection of the OTP memory	Block-by-block write protection of the OTP memory
  Mechanical data
  Material		Epoxy resin	Epoxy resin
  Color		anthracite	anthracite
  Mounting distance relating to metal surfaces recommended minimum		20 mm	20 mm
  Permitted ambient conditions
  Ambient temperature
  ● during read/write access		-25 ... +75 °C	-25 ... +75 °C
  ● outside the read/write area		-40 ... +85 °C	-40 ... +85 °C
  ● during storage		-40 ... +85 °C	-40 ... +85 °C
  Protection class IP		IP67	IP67
  Shock resistance		According to DIN EN 60721-3-7 Class 7 M3	According to DIN EN 60721-3-7 Class 7 M3
  Shock acceleration		500 m/s²	500 m/s²
  Vibrational acceleration		200 m/s²	200 m/s²
  Resistance to mechanical stress		Continuous torsion and bending stress not permissible	Continuous torsion and bending stress not permissible
  Design, dimensions and weight
  Width		55 mm	55 mm
  Height		2.5 mm	2.5 mm
  Depth		86 mm	86 mm
  Net weight		25 g	25 g
  Mounting type		2 x M3 screws, mounting bag (see accessories)	2 x M3 screws, mounting bag (see accessories)
  Product properties, functions, components general
  Product feature
  ● silicon-free		Yes	Yes
  ● printable		No	No
  Standards, specifications, approvals
  MTBF		1 200 y	1 200 y
  Accessories
  accessories		Fixing strap, spacer	Fixing strap, spacer
