Mobile network antennas

Заказные данные
(6)
Аксессуары
(10)

Remote antennas increase the reliability of wireless links by optimizing signal reception and emission.

Used for routers, modems and communication processors for the mobile network standards GSM/GPRS (2G), UMTS (3G), LTE (4G)
Coordinated range of antennas for the most diverse applications both indoors and outdoors

Область применения

Remote antennas optimize the transmit and receive conditions and support the use of remote network products in a large number of industrial applications.
In addition to antennas with directional radiation characteristics, omnidirectional antennas concentrate the radio field around the antenna in the shape of a disc. Both designs therefore result in improved radio communication quality.

Application examples:

Telecontrol applications, e.g. in the water and wastewater plant environment as well as oil and gas applications, and applications in the railway or public transport environments
Teleservice applications, e.g. in machine and manufacturing
Other applications, for example, automation of power distribution networks (Smart Grid), video surveillance

Дизайн

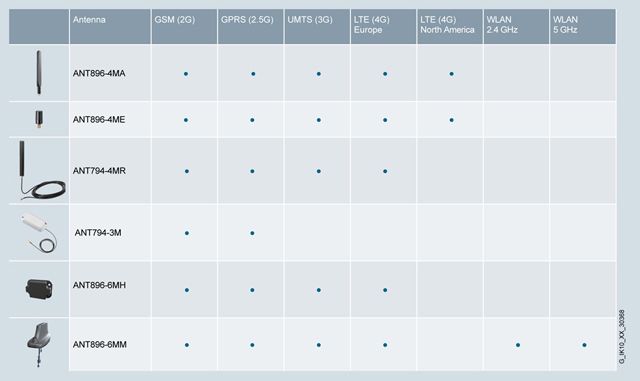

Overview of mobile network antennas

Функции

Remote antennas are used to optimize the radio field for the application. In industrial applications, this permits a reliable radio link.

Omnidirectional antennas

Omnidirectional antenna

With omnidirectional antennas, the radio field is emitted evenly in every direction surrounding the antenna (horizontal opening angle: 360°), but it weakens as the distance increases. There is a concentration in the vertical direction which creates passive amplification of the radio field. Many omnidirectional antennas have extremely weak radiation directly below the antenna due to the construction type. This property can be seen in the associated antenna diagram.

ANT896-4MA, ANT896-4ME, ANT896-6MH and ANT896-6MM

With these antennas, the radio field is concentrated in the vertical plane of the antenna for frequencies of the mobile network standards GSM(2G), UMTS(3G) and LTE(4G).

The ANT896-4MA antenna has an antenna gain of 2 dBi, features an additional joint, an SMA connector, and IP54 degree of protection. This means it is perfectly suited for direct installation on SCALANCE M routers, the CP1242-7 communication processor and the MD720 MODEM.

The ANT896-4ME antenna has an antenna gain of 3 dBi, an N-Connect socket, and IP66 degree of protection. This antenna can be connected to the mobile network devices with an antenna connection cable from the SIMATIC NET range. This means the antenna can be positioned at the location that is best for radio transmission.

The ANT896-6MH antenna features an antenna gain of 5-6 dBi (depending on the frequency band used), an N-Connect socket, and IP69K degree of protection. It is especially designed for use in railway applications and complies with the standards required for such applications (including EN50155, EN45545-2). This antenna can be connected to mobile network devices with an antenna connection cable suitable for railway applications from the SIMATIC NET range. This means the antenna can be positioned at the location that is best for radio transmission.

The ANT896-6MM antenna features an antenna gain of 4-7 dBi, (depending on the frequency band used), three cable connections with QMA sockets and IP69K/IP68 degree of protection. Due to its design and certification, this antenna is especially suitable for use in heavy-duty traffic and buses. Parallel to wireless network applications, his antenna can also be for WLAN radio communication. This antenna can be connected to mobile network devices with an antenna connection cable from the SIMATIC NET range. This means the antenna can be positioned at the location that is best for radio transmission.

ANT794-4MR

The tried-and-tested omnidirectional antenna ANT794-4MR supports the frequencies of the mobile network standards GSM (2G), UMTS (3G) and LTE (4G)¹⁾ and can be directly connected to all SIMATIC NET mobile network devices with the permanently installed 5 meter connection cable and the attached SMA connector. The cable is fastened with the installation materials supplied.

1) Please note LTE frequency bands.

ANT794-3M

The ANT794-3M flat panel antenna for the GSM (2G) mobile network has a directional radiation characteristics by design; it can be mounted on metallic and non-metallic surfaces to which it is either fastened with screws or attached with the supplied adhesive pad. The permanently installed 1.2 meter connection cable can be connected directly to all SIMATIC NET mobile network devices using the attached SMA connector.

Интеграция

SCALANCE M874-3 with mobile network antenna (front)

SCALANCE M874-2 with mobile network antenna (front)

LOGO! CMR with directly connected antennas

Особенности

Cost-effective connection to devices in remote, difficult-to-access, or hostile environments
Establishment of a reliable mobile network infrastructure through the use of remote antennas, even if the mobile network devices are installed in the control cabinet, for example

Технические данные

Order number	6GK5896-4MA00-0AA3	6GK5896-4ME00-0AA0	6NH9860-1AA00	6NH9870-1AA00
Product type designation	Antenna ANT896-4MA	Antenna ANT896-4ME	Antenna ANT794-4MR	Antenna ANT794-3M
Suitability for operation			for indoor and outdoor applications	for indoor and outdoor applications
Wireless frequencies
Type of mobile network is supported	GSM, UMTS, LTE	GSM, UMTS, LTE	GSM, UMTS, LTE	GSM
Operating frequency	700 MHz, 800 MHz, 850 MHz, 900 MHz, 1575.42 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2200 MHz, 2600 MHz	700 MHz, 800 MHz, 850 MHz, 900 MHz, 1575.42 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2200 MHz, 2600 MHz	800 MHz, 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2600 MHz	900 MHz, 1800 MHz, 1900 MHz
Electrical data
Impedance	50 Ω	50 Ω	50 Ω
Polarization	linear vertical	linear vertical	linear vertical
Radiation characteristic	omnidirectional	omnidirectional	omnidirectional	directional
Antenna gain			0 dB	0 dB
Antenna gain compared to spherical radiator
● with linear radiation	2 dB	3 dB
Standing wave ratio (VSWR) maximum	2.5	2	1.9	1.5
Radiating angle of the antenna
● horizontal	360°	360°
Number of electrical connections of the antenna	1	1
Type of electrical connection of the antenna	SMA Connector	N-Connector	SMA Connector	SMA Connector
Design of plug-in connection	male, variable 0-90°	female	male	male
Transmit power maximum	5 W	150 W	20 W	10 W
Mechanical data
Material
● of outer shell			Hard PVC, UV-resistant	ABS Polylac PA-765, light gray (RAL 7035)
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +85 °C	-40 ... +70 °C	-40 ... +70 °C	-40 ... +75 °C
Protection class IP	IP54	IP66	IP65	IP64
Design, dimensions and weight
Width	24 mm		25 mm	70.5 mm
Height	210 mm	61 mm	193 mm	20.5 mm
Depth			25 mm	146.5 mm
Diameter		38.1 mm	25 mm
Net weight	44 g	220 g	0.31 kg	130 g
Mounting type			angle bracket and mounting parts	screw fixing
Mounting type
● flat-roof mounting	No	Yes
● directly on the device	Yes	No
Wire length of antenna cable			5 m	1.2 m
Product properties, functions, components general
Product feature silicon-free	Yes	Yes
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes	Yes	Yes
Wireless approval	Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen	Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen

Order number	6GK5896-6MH00-0AA0	6GK5896-6MM00-0AA0
Product type designation	Antenna ANT896-6MH	Antenna ANT896-6MM
Suitability for operation		Vehicle antenna for mobile radio, GPS and IWLAN
Wireless frequencies
Type of mobile network is supported	GSM, UMTS, LTE	GSM, UMTS, LTE, WLAN
Operating frequency
● for WLAN in 2.4 GHz frequency band	2.4 ... 2.7 GHz	2.4 ... 2.69 GHz
● for WLAN in 5 GHz frequency band 1		4.9 ... 5.935 GHz
Operating frequency	700 MHz, 800 MHz, 850 MHz, 900 MHz, 1575.42 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2600 MHz	800 MHz, 850 MHz, 900 MHz, 1575.42 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2200 MHz, 2600 MHz
type of satellite navigation system is supported GPS, GLONASS and Galileo		Yes
Electrical data
Supply voltage from antenna cable		3 ... 5 V
Type of voltage of the supply voltage		DC
Consumed current maximum		30 A; at 5V
Impedance	50 Ω	50 Ω
Polarization	linear vertical	Connection 1+2: linear vertical, connection 3 (GPS): circular clockwise
Radiation characteristic	omnidirectional
Antenna gain compared to spherical radiator
● with linear radiation	5 dB	5 dB
● with circular radiation		30 dB; total gain at 90°
● of the WLAN antenna in the 2.4 GHz frequency band		6 dB
● of the WLAN antenna in the 5 GHz frequency band		7 dB
Standing wave ratio (VSWR) maximum	2.2	1.8
Radiating angle of the antenna
● horizontal	360°
Number of electrical connections of the antenna	1
Type of electrical connection of the antenna	N-Connector
Design of plug-in connection	female	female
Transmit power maximum	100 W; at 50° ambient temperature
Mechanical data
Material
● of outer shell		ASA
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +85 °C	-40 ... +85 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C
● during transport		-40 ... +85 °C
Protection class IP	IP69K	IP68 / IP69K
Wind load maximum	survival at 500 km/h
Design, dimensions and weight
Width	100 mm	83 mm
Height	40 mm	82 mm
Depth	145 mm	208 mm
Net weight	0.488 kg	0.38 kg
Mounting type
● mast mounting		No
● flat-roof mounting	Yes	Yes
● wall mounting		No
● roof mounting		No
● directly on the device	No	No
Wire length of antenna cable		0.3 m
Product properties, functions, components general
Product feature silicon-free	Yes	Yes
Standards, specifications, approvals
Certificate of suitability	Railway application acc. to DIN5510-2, BS6853, NF-F-16-101, NF-F-16-102	E-mark
Certificate of suitability
● CE marking		Yes
● RoHS conformity	Yes	Yes
● Railway application in accordance with EN 50155	Yes
● Fire protection in accordance with EN 45545-2	Yes
product conformity		UL 94-HB
Wireless approval	Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen	Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen

Дальнейшая информация

Cabling range:

Pre-assembled connecting cables for IRC products can be found in the Industry Mall under antenna connection technology.

You can order supplementary components for the SIMATIC NET cabling range from your local contact. Technical advice on this subject is available from:
