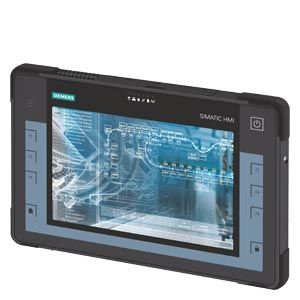

  SIMATIC Industrial Tablet PC

  The SIMATIC Industrial Tablet PC takes the performance of SIMATIC industry PCs to the tablet format.

  With a large number of functional expansions such as a 1D/2D bar code reader or user identification by RFID, it taps diverse possibilities of use.

  Der SIMATIC ITP1000: Industrial rugged

  • High-quality components and modules with a high MTBF (mean time between failure), which also ensure 24-hour operation in the extended temperature range up to +45°C
  • Rugged enclosure designs with high electromagnetic compatibility (EMC)
  • Hardware available in the long term

  Powerful and many functions on board

  • Powerful notebook CPU Intel Core i5-6442EQ
  • Many interfaces on board:
    LAN, SD card reader, USB interfaces, RS232, audio
  • WLAN and Bluetooth integrated
  • RFID, bar code reader (1D/2D) and camera for a highly diverse range of mobile applications
  • Windows 7 Ultimate 64-bit
  • Ready to run with pre-activated Windows operating system

  Область применения

  Typical application areas are to be found in service/maintenance, within the scope of Industry 4.0 ("paperless factory"), for production planners, power data management or, for example, measuring and testing tasks.

  Дизайн

  Design

  The SIMATIC ITP1000 is a table PC with high computing capacity.

  • Interfaces (under service flap)
    • 1 x LAN 10/100/1 000 Mbps Ethernet interface (RJ45)
    • 2 x USB V3.0·1 x RS232
    • 1 x mini-display port (resolution: up to 4 096 x 2 304@60Hz)
  • Other interfaces
    • 1 x SD card reader
    • 1 x Type C USB
    • 1 x Universal Audio Jack (UAJ)
    • 1 x DC-in
    • Docking interface

  Design versions

  • Processor/main memory configuration:
    • Intel Core i5 6442EQ, 1.9 GHz (2.7 GHz), QuadCore
  • Main memory capacity:
    • 4 GB, 8 GB or 16 GB DDR4-RAM
  • Drives:
    • Solid-state drive, 256 GB, M.2
    • Solid-state drive, 512 GB, M.2
  • Operating system preinstalled:
    • Without operating system
    • Windows 7 Ultimate 64-bit, Multi-Language
  • Further options (possible in every combination)
    • None
    • Camera (5 megapixels with torch function)
    • RFID reader
    • 1D/2D bar code reader

  Components of the operator control unit:

  • 10" multi-touch display
  • 1 280 x 800 resolution
  • 8 lateral function keys, 6 of which are user-assignable

  Особенности

  High degree of industrial capability

  The entire construction is designed for industrial use, be it high temperature in continuous running duty or industrial EMC requirements.

  Investment protection

  High component continuity and guaranteed availability of spare parts for up to 5 years after product phase-out are ensured, e.g. through the development and production of our own motherboards. This enables long-lasting machine concepts without renewed engineering effort.

  High performance

  Thanks to the CPU used, the SIMATIC ITP1000 is a fully fledged PC, which can be turned into an office workstation using a docking station. Mobile applications on tablet PCs give rise to new application possibilities.

  Lightweight and compact

  Despite high device performance and many integrated functions, the SIMATIC ITP1000 is highly compact and weighs in at only 1.6 kg

  Options

  Various options (RFID, bar code reader, camera) enable an individual solution for your industrial application.

  Other advantages

  • Low-cost SIMATIC runtime software packages are available when SIMATIC ITP1000 is ordered along with the software
  • Customized design and functional adaptations possible

  Дальнейшая информация

  You can find additional information on the Internet at:

  http://www.siemens.de/

  Note

  Do you need a specific modification or option for the products described here? Under "Customized products", you will find information about additional industry-specific products that can be ordered and about options for customer-specific modification and adaptation.
