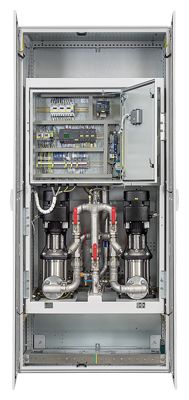

Heat Exchanger Modules

Заказные данные
(8)

Heat Exchanger Modules are used to dissipate the power loss from the converter. They comprise a deionized water circuit on the converter side and a raw water circuit on the plant side.

The hot deionized water in the circuit on the converter side passes through a maintenance-free circulating pump into the water/water plate-type heat exchanger. This is made of stainless steel and connected to the raw water circuit on the plant side. The deionized water is cooled there by the raw water of the outer circuit and flows back into the drive.

The closed converter-side deionized water circuit is filled with coolant in accordance with the requirements in section "Cooling circuit and coolant quality" and deaerated before commissioning. The pressure is maintained by means of an expansion chamber. Any residual air that arises in the circuit during operation is removed via automatic vents.

To avoid condensation at excessively low coolant temperatures, a three-way valve for controlling the coolant temperature is installed.

Heat Exchanger Modules are available for the following voltages and cooling power ratings:

Line voltage	Cooling power
380 ... 415 V 3 AC, 50 Hz	32 ... 110 kW
660 ... 690 V 3 AC, 50/60 Hz	32 ... 110 kW

Heat Exchanger Modules for other line voltages (up to 480 V or as of 500 V) and for 60 Hz are available on request.

Дизайн

The deionized water is monitored by the drive itself to ensure intrinsic protection. The operating status is signaled to the drive.

Heat Exchanger Modules contain the following components as standard:

1 pump
1 stainless steel plate-type heat exchanger
1 three-way valve
Filter, expansion chamber, vent, safety valve, pressure sensors, pressure display, temperature sensor, TM31 Terminal Module, LOGO control.

Note:

Heat Exchanger Modules can only be located at the beginning or end of a cabinet row for technical reasons.

Интеграция

Connection example of the Heat Exchanger Module, liquid-cooled

Технические данные

The Heat Exchanger Modules must be selected appropriately for the required cooling power and the required volume flow of coolant in the converter-side deionized water circuit. The values stated in the technical specifications of the Cabinet Modules for the heat loss dissipated into the coolant must be summated. The total value is then the required cooling power.

The volume flow of coolant stated in the technical data of the Cabinet Modules must also be added.

If either of the two total values exceeds the values defined in the technical specifications of the Heat Exchanger Module (cooling power and volume flow of coolant for converter-side deionized water), the next larger Heat Exchanger Module must be selected.

Line voltage 380 … 415 V 3 AC 50 Hz		Heat Exchanger Modules
		6SL3705-0RE23-2AA3	6SL3705-0RE24-8AA3	6SL3705-0RE27-2AA3	6SL3705-0RE31-1AA3
Cooling power	kW	32	48	72	110
Deionized water circuit (on the converter side)
Inlet temperature
Min.	°C	Depending on the ambient temperature and humidity of the air (see table for the dew point in section Liquid-cooled Cabinet Modules → Protection against condensation)
Max.
Degree of protection <IP55	°C	45	45	45	45
Degree of protection IP55	°C	40	40	40	40
Intake pressure
Min.	bar	1.7	1.7	1.7	1.7
Max.	bar	6	6	6	6
Coolant volume flow ¹⁾	l/min	88	132	197	267
Liquid volume	l	18	25	43	47
Raw water circuit (on the plant side)
Inlet temperature
Min.	°C	5 ²⁾	5 ²⁾	5 ²⁾	5 ²⁾
Max.
Degree of protection <IP55	°C	38	38	38	38
Degree of protection IP55	°C	33	33	33	33
Intake pressure, max.	bar	6	6	6	6
Coolant volume flow ¹⁾	l/min	132	198	263	445
General data
Heat exchanger material		Stainless steel	Stainless steel	Stainless steel	Stainless steel
Current consumption
Operating current, total at 50 Hz 400 V	A	5.5	6.2	10.9	10.9
Electronics current (24 V DC)	A	1.0	1.0	1.0	1.0
Power consumption	kW	1.3	1.7	4.2	4.2
Sound pressure level L_pA (1 m) at 50 Hz	dB	60	60	60	60
Line supply connection L1, L2, L3		Terminal	Terminal	Terminal	Terminal
Conductor cross section, max. (IEC)	mm²	4	4	4	4
PE/GND connection		Terminal	Terminal	Terminal	Terminal
Conductor cross section, max. (IEC)	mm²	4	4	4	4
Degree of protection (standard version)		IP21	IP21	IP21	IP21
Dimensions
Width	mm	800	1000	1200	1200
Height	mm	2200	2200	2200	2200
Depth	mm	600	600	600	600
Weight, approx. (standard version)	kg	540	565	608	628

¹⁾The value is valid for water as coolant. For other coolants, see section Cooling circuit and coolant properties.

²⁾ 0 °C with anti-freeze (see derating characteristics).

Line voltage 660 ... 690 V 3 AC 50/60 Hz		Heat Exchanger Modules
		6SL3705-0RG23-2AA3	6SL3705-0RG24-8AA3	6SL3705-0RG27-2AA3	6SL3705-0RG31-1AA3
Cooling power	kW	32	48	72	110
Deionized water circuit (on the converter side)
Inlet temperature
Min.	°C	Depending on the ambient temperature and humidity of the air (see table for the dew point in section Liquid-cooled Cabinet Modules → Protection against condensation)
Max.
Degree of protection <IP55	°C	45	45	45	45
Degree of protection IP55	°C	40	40	40	40
Intake pressure
Min.	bar	1.7	1.7	1.7	1.7
Max.	bar	6	6	6	6
Coolant volume flow ¹⁾	l/min	88	132	197	267
Liquid volume	l	18	25	43	47
Raw water circuit (on the plant side)
Inlet temperature
Min.	°C	5 ²⁾	5 ²⁾	5 ²⁾	5 ²⁾
Max.
Degree of protection <IP55	°C	38	38	38	38
Degree of protection IP55	°C	33	33	33	33
Intake pressure, max.	bar	6	6	6	6
Coolant volume flow ¹⁾	l/min	132	198	263	445
General data
Heat exchanger material		Stainless steel	Stainless steel	Stainless steel	Stainless steel
Current consumption
Operating current, total at 50/60 Hz 690 V	A	1.8/2.7	2.2/3.9	5.2/4.7	5.2/4.7
Electronics current (24 V DC)	A	1.0	1.0	1.0	1.0
Power consumption at 50/60 Hz 690 V	kW	1.3/1.7	1.7/2.4	4.2/4.2	4.2/4.2
Sound pressure level L_pA (1 m) at 50/60 Hz	dB	60	60	60	60
Line supply connection L1, L2, L3		Terminal	Terminal	Terminal	Terminal
Conductor cross section, max. (IEC)	mm²	4	4	4	4
PE/GND connection		Terminal	Terminal	Terminal	Terminal
Conductor cross section, max. (IEC)	mm²	4	4	4	4
Degree of protection (standard version)		IP21	IP21	IP21	IP21
Dimensions
Width	mm	800	1000	1200	1200
Height	mm	2200	2200	2200	2200
Depth	mm	600	600	600	600
Weight, approx. (standard version)	kg	540	565	608	628
