dv/dt filters plus VPL

Заказные данные
(5)

dv/dt filter plus VPL (Voltage Peak Limiter) limit the voltage rate-of-rise dv/dt to values < 500 V/μs and the typical voltage peaks to the following values according to the limit value curve to IEC/TS 60034‑17: 2006:

< 1000 V at U_line < 575 V
< 1250 V at 660 V < U_line < 690 V

Standard motors with standard insulation and without insulated bearings can be used for inverter operation if a dv/dt filter plus VPL is used.

The dv/dt filter plus VPL are designed for the following maximum motor cable lengths:

Shielded cables: 300 m (e.g. Protodur NYCWY)
Unshielded cables: 450 m (e.g. Protodur NYY)

For shorter cable lengths (100 m shielded, 150 m unshielded) also refer to dv/dt filter compact plus VPL.

Note:

The maximum permissible cable length between the dv/dt filter and Power Module is 5 m.

Дизайн

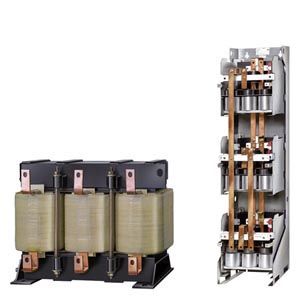

The dv/dt filter plus VPL consists of two components, which are also separately supplied as mechanical units:

dv/dt reactor
Voltage limiting network, which cuts off the voltage peaks and feeds the energy back into the DC link.

Технические данные

Line voltage 380 ... 480 V 3 AC		dv/dt filter plus VPL
		6SL3000-2DE35-0AA0	6SL3000-2DE38-4AA0	6SL3000-2DE41-4AA0 ¹⁾
I_{th max}	A	490	840	1450
Degree of protection		IP00	IP00	IP00
Cable length, max. between dv/dt filter and motor
Shielded	m (ft)	300 (984)	300 (984)	300 (984)
Unshielded	m (ft)	450 (1476)	450 (1476)	450 (1476)
Conformity		CE	CE	CE
Approvals, acc. to		cURus	cURus	cURus
dv/dt reactor
Power loss, max.
At 50 Hz	kW	0.874	1.106	1.111
At 60 Hz	kW	0.904	1.115	1.154
Connections
To Power Module		1 × hole for M12	1 × hole for M12	1 × hole for M12
To load		1 × hole for M12	1 × hole for M12	1 × hole for M12
PE		M6 screw	M6 screw	M6 screw
Dimensions
Width	mm (in)	460 (18.1)	460 (18.1)	445 (17.5)
Height	mm (in)	370 (14.6)	385 (15.2)	385 (15.2)
Depth	mm (in)	275 (10.8)	312 (12.3)	312 (12.3)
Weight, approx.	kg (lb)	122 (269)	149 (328)	158 (348)
Voltage Peak Limiter (VPL)
Power loss, max.
At 50 Hz	kW	0.042	0.077	0.134
At 60 Hz	kW	0.039	0.072	0.125
Connections
To dv/dt reactor		70 mm² terminals	1 x hole for M8	1 × hole for M10
To DC link (DC)		70 mm² terminals	1 x hole for M8	1 × hole for M10
PE		35 mm² terminals	M8 stud	M8 stud
Dimensions
Width	mm (in)	392 (15.4)	309 (12.2)	309 (12.2)
Height	mm (in)	285 (11.2)	1312.5 (51.7)	1312.5 (51.7)
Depth	mm (in)	210 (8.27)	400 (15.7)	400 (15.7)
Weight, approx.	kg (lb)	16 (35.3)	48 (106)	72 (159)
Suitable for PM330 Power Module		6SL3310-1PE33-0AA0 6SL3310-1PE33-7AA0 6SL3310-1PE34-6AA0	6SL3310-1PE35-8AA0 6SL3310-1PE36-6AA0 6SL3310-1PE37-4AA0	6SL3310-1PE38-4AA0 6SL3310-1PE38-8AA0 6SL3310-1PE41-0AA0
Frame size		GX	HX	JX

¹⁾ Two dv/dt reactors are required for these dv/dt filters. The listed technical data refers to one dv/dt reactor.

Line voltage 500 ... 690 V 3 AC		dv/dt filter plus VPL
		6SL3000-2DH38-1AA0 ¹⁾
I_{th max}	A	810
Degree of protection		IP00
Cable length, max. between dv/dt filter and motor
Shielded	m (ft)	300 (984)
Unshielded	m (ft)	450 (1476)
Conformity		CE
Approvals, acc. to		cURus
dv/dt reactor
Power loss, max.
At 50 Hz	kW	0.828
At 60 Hz	kW	0.867
Connections
To Power Module		2 × hole for M12
To load		2 × hole for M12
PE		M6 screw
Dimensions
Width	mm (in)	445 (17.5)
Height	mm (in)	385 (15.2)
Depth	mm (in)	312 (12.3)
Weight, approx.	kg (lb)	160 (353)
Voltage Peak Limiter (VPL)
Power loss, max.
At 50 Hz	kW	0.106
At 60 Hz	kW	0.1
Connections
To dv/dt reactor		1 x hole for M10
To DC link (DC)		1 x hole for M10
PE		M8 stud
Dimensions
Width	mm (in)	309 (12.2)
Height	mm (in)	1312.5 (51.7)
Depth	mm (in)	400 (15.7)
Weight, approx.	kg (lb)	72 (159)
Suitable for PM330 Power Module		6SL3310-1PG35-8AA0 6SL3310-1PG36-5AA0 6SL3310-1PG37-2AA0
Frame size		JX

¹⁾ Two dv/dt reactors are required for these dv/dt filters. The listed technical data refers to one dv/dt reactor.
