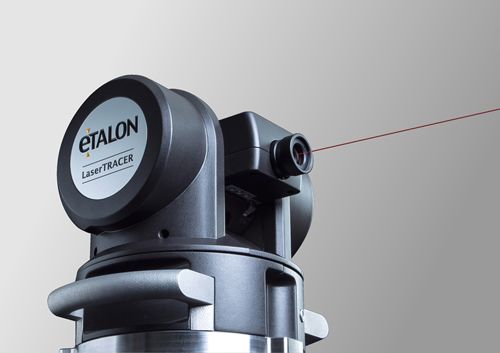

  The ETALON solution – volumetric machine calibration with sub-micron-accuracy

  Using the ETALON system, the geometric variations of a machine can be measured quickly and very accurately. The traversing paths of the machine are automatically traced in space by the LaserTRACER and evaluated using a patented process. Extremely high accuracy is achieved as a result of distance measurements in space using a high-resolution interferometer. The procedure is also used to calibrate highly accurate coordinate measuring devices.

  The interferometer has a resolution of 1 nm with a maximum measuring length of 15 m. The LaserTRACER-MT with a measuring radius of between 260 and 940 mm can be used as an alternative. The automatically generated compensation data can then be directly transferred to a SINUMERIK CNC. When the option SINUMERIK VCS (Volumetric Compensation System) is installed, the systematic variations detected are compensated over the entire working range of the machine. This usually multiplies the spatial accuracy of the machine.

  Функции

  • Calibration of linear and rotary axes
  • High-speed machine testing in accordance with ISO 230, implementation of the diagonal measurement according to ISO 230-6, and circularity test without manual alignment
  • Calculation of compensation data with TRAC-CAL
  • Verification of compensation data with TRAC-CHECK

  Интеграция

  The ETALON solution can be used for the following CNC:

  • SINUMERIK 840D sl:
    • with the SINUMERIK option CEC (Cross Error Compensation)
    • with the SINUMERIK option VCS (Volumetric Compensation System) linear and rotary axes

  Особенности

  • Extensive, highly accurate geometry analysis of the machine in a short time
  • Significant increase in the accuracy of the machine due to full error compensation in combination with the option: SINUMERIK Volumetric Compensation System VCS
  • Highest accuracy even after long periods of operation, collision or lowering of the foundation as a result of machine recalibration
  • Use on machine tools with any traversing range and coordinate measuring instruments
