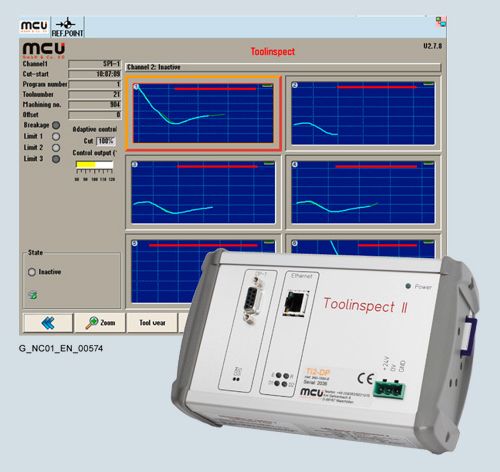

  Toolinspect II - Tool and process monitoring

  The Toolinspect II module communicates with the SINUMERIK CNC via PROFINET or PROFIBUS DP. Visualization on the operator panel of the CNC is implemented with the module via a TCP/IP interface.

  Функции

  • Control-integrated tool, process and machine analysis
  • 19 languages available online and selectable at any time
  • Adaptive control for roughing operations to reduce machining times (option)
  • Automatic system and data backup on 4 GB SD card
  • Read out of torque and path actual data
  • Monitoring of up to 6 channels (6 simultaneous machining operations)
  • Monitoring after tool change
  • Integrated process analysis and process reports in PDF/Excel files (option)
  • Process analysis with evaluation capability for technologists and export function of the actual values and display of the data in Excel
  • Evaluation of MDE production data and up to 250 faults (option)
  • Link to SINUMERIK Integrate

  Интеграция

  Toolinspect II can be used for the following CNCs:

  • SINUMERIK 828D
  • SINUMERIK 840D sl:
    • with SINUMERIK PCU 50.5 Windows 7
    • with SINUMERIK TCU

  Особенности

  • Easy operation using 3 function keys
  • Tool damage detected immediately (real time system)
  • Machine cycle time is not increased
  • Automatic adaptation to any type of machining without intervention by the machine operator
  • Rugged flash memory

  Дальнейшая информация

  MCU GmbH & Co. KG

  Max-Eyth-Straße 51
  71364 WINNENDEN
  GERMANY

  Tel.: +49 7195 137538
  E-mail: vertrieb@mcu-gmbh.de

  Internet: http://www.mcu-gmbh.de
