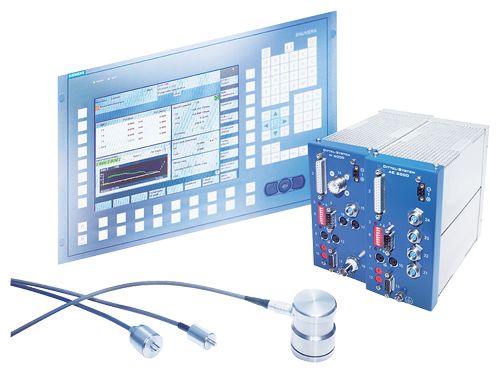

  Modular system for balancing and process monitoring

  The DS6000 has a modular and expandable design and can be combined to suit the requirements of any project. This innovative concept is highly flexible in terms of its ability to meet customer requirements, provides the user with an increased range of features and is very easy to operate.

  The DSCC software (DITTEL System Control Center) was develo­ped for Windows-based automation systems. Operators have a comprehensive range of functions at their disposal, including the display of balancing, AE and measurement control signals on the operator panel and the transfer of PC and device settings to other machines via RS232C, Ethernet or USB interfaces as XML files. This enables time-saving series commissioning as well as problem-free resetting to factory defaults.

  The systems are also able to be used independently of a controller with the DITTEL RC6000 or PC6000 remote controls. The intelligent visualization of information supplied by the monitoring systems supports operators in optimally utilizing the manufacturing potential of a plant, and, as a result, allow them to achieve significant overall reductions in process costs.

  Функции

  • Simple and easy-to-use systems with operator panel display
  • Flexible connection to the CNC possible via e.g. PROFIBUS and integration via ActiveX interface
  • Software options for extended function analysis, e.g. envelope curve, spectrum
  • Series commissioning and various storage options

  Интеграция

  The DS6000 can be used for the following CNC:

  • SINUMERIK 840D sl
    with SINUMERIK PCU 50.5 Windows 7

  Особенности

  • Wide range of modular balancing and process monitoring systems with visualization directly on the operator panel
  • All-in-one-solution with in-process measurement, balancing and AE-monitoring
  • Convenient systems with contactless signal and power transmission, wear and maintenance-free
  • Customized balancing heads are adapted to spindle installation space and required capacities - as well as high speeds
  • Large selection of AE sensors for use on grinding and tool spindles as well as dresser/dressing spindles
  • Collision detection, reduction of air grinding, process visualization and optimization

  Дальнейшая информация

  MARPOSS S.p.A.

  Via Saliceto 13
  40010 BENTIVOGLIO (BO)
  ITALY

  Tel.: +39 051 899244

  E-mail: marposs4partner@marposs.com

  Internet: http://www.marposs.com
