  CTM tool and process monitoring system with flexible interface concept

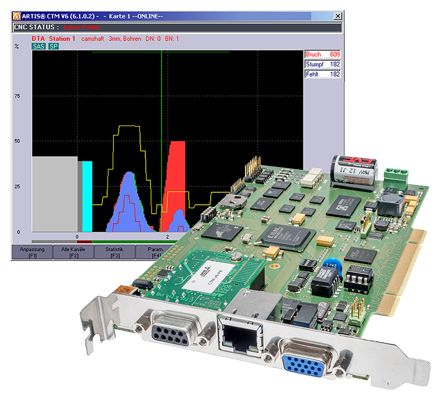

  The high-precision in-process monitoring provided by CTM protects machining processes. The CTM system detects tool breakage, tool wear and missing tools. The PCI card designed for integration in the CNC offers various methods of data capture and is equipped with suitable measuring transducers and visualization software.

  Функции

  • Data are captured either electronically or via external sensors (e.g. for force, torque, vibration)
  • Comparison of the current process against a learned setpoint curve, visual representation of deviations
  • Specification of values for breakage limits, display and documentation of alarms
  • Visualization on the CNC operator panel or on an external screen
  • Integrated in the machine tool control system
  • Adaptive feedrate control (option)
  • A variety of monitoring strategies, e.g. specifically for long machining operations or hobbing processes
  • Method of monitoring the coolant flowrate, particularly for processes involving small tools
  • Flexible interface concept with solutions for PROFIBUS, PROFINET, Ethernet and a starter variant without fieldbus connection
  • Flexible configuration – setup and teach-in of all limits so that they are precisely tailored to the relevant application

  Интеграция

  CTM can be used for the following CNC:

  • SINUMERIK 840D sl:
    • with SINUMERIK PCU 50.5 Windows 7
    • with SINUMERIK TCU

  Особенности

  • Comprehensive protection for machine and tool
  • Optimization of processes
  • Reduced costs per item by elimination of rejects
  • Perfect process adaptation even with complex processes
  • Seamless documentation of part quality

  Дальнейшая информация
