  SIDOOR ATE500E elevator door drive

  The SIDOOR ATE500E elevator door drive enables the quick, easy and versatile installation, configuration and operation of EC technology gearless elevator door systems.

  • Design:
    • Relay module
    • CAN module
  • For dynamic door weights up to 280 kg
  • High control performance und optimized drive characteristic transitions
  • Automatic door weight detection (single-button commissioning)
  • 6 kg maximum counterweight of the coupled floor door
  • Operating temperature -25 to +50 °C without restrictions
  • Automatic identification of the connected motor
  • Opening width 0.3 to 5 m
  • Auxiliary voltage output 24 V DC ± 15 %; 0.4 A (short-circuit-proof)
  • Output stage short-circuit-proof
  • Optimized energy consumption during cabin operation (DCPS)
  • Vandal-proof
  • IP20 degree of protection
  • The current operating states are indicated via a 7-segment display directly in the elevator door drive or externally using the Software Kit or Service Tool, seeAdditional units.

  Область применения

  The SIDOOR ATE500E comfort elevator door drive is an intelligent door control system which enables the opening and closing of cabin and shaft doors at adjustable speeds and accelerations.

  The maintenance-free drive unit is speed controlled and comprises an electronically commutated SIDOOR MED280 EC direct drive designed for a maximum of 280 kg total door panel weight.

  Must be ordered separately, see "Direct drives".

  Operation of the elevator door drive does not require limit switches. The door width and the "OPEN"/"CLOSE" positions are determined automatically.

  The current operating states are indicated by a 7-segment display directly in the SIDOOR ATE500E elevator door drive. They can also be displayed externally using the Software Kit or Service Tool, see "Additional units".

  Forces are transferred via a toothed belt which passes over a deflector unit and can be fitted with two door clutch holders. These accessories are not included in the scope of supply, see "Accessories".

  Both single-leaf and centrally opening doors can be driven.

  Дизайн

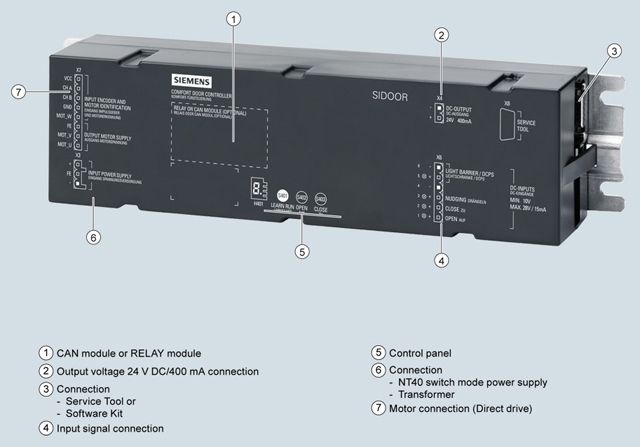

  The SIDOOR ATE500E Elevator Door Drive system comprises a number of components:

  Version	Type	See
  Controller
  SIDOOR ATE500E elevator door drive (incl. relay or CAN module)
  Relay module	6FB1211-5AT10-7AT2
  CAN module	6FB1211-1AT10-7AT3
  The following individual components must be ordered separately:
  Power supplies		"Power supplies"
  Mains transformer	6FB1112-0AT20-2TR0
  Switch-mode power supply NT40	6FB1112-0AT20-3PS0
  Additional units Enabling universal implementation and maintenance of the door drive system		"Additional units"
  Software Kit	6FB1105-0AT01-6SW0
  Service Tool	6FB1105-0AT01-6ST0
  Direct drives		"Direct drives"
  SIDOOR MED280 direct drive (max. door weight 280 kg)	6FB1203-0AT12-7DA0
  Accessories for the overall system see also overview diagram → "For elevators"		"Accessories"
  Motor holder for accommodation of the SIDOOR MED280 direct drive	6FB1104-0AT03-0AD0
  Mounting bracket
  For attaching the SIDOOR motor holder	6FB1104-0AT01-0AS0
  With tensioning device for mounting the deflector unit and setting the toothed belt to the required tension (large)	6FB1104-0AT05-0AS4
  With tensioning device for mounting the deflector unit and setting the toothed belt to the required tension (small)	6FB1104-0AT05-0AS5
  Door clutch holder For attaching both ends of the toothed belt, and for connecting the respective door panel to the toothed belt, width 20 mm	6FB1104-0AT05-0AS1
  Deflector unit For attaching the SIDOOR toothed belt und fixing to the door	6FB1104-0AT07-0AS0
  Toothed belt STS As a connection between the door system and the end positions of the door, toothed belt width 20 mm
  Length 4 m	6FB1104-0AT05-0AB0
  Length 45 m	6FB1104-0AT06-0AB1





  Конфигурация

  During initial commissioning, please note the following:

  • Mechanical mounting and setting, see the SIDOOR EC System Manual, and the ATE500E and MED280 Operating Instructions
  • Electrical configuration and commissioning:
    • Push the door into the "CLOSED" position.
    • Open the device cover
    • Plug in the motor connector
    • Connect NT40 switch mode power or SIDOOR Transformer to 230 V AC mains supply
    • Press and hold the learn run button
    • Connect NT40 switch-mode power supply or SIDOOR Transformer to the input of the SIDOOR ATE500E elevator door drive
    • The learn run starts automatically and the learn run button can be released as soon as the door starts to move
    • On completion of the learn run, the door is in the "CLOSED" position and the 7-segment display indicates "u".
    • The door can now be moved using the "OPEN" and "CLOSE" buttons with the default profile.

  Особенности

  • 1-button operation for the entire commissioning process.
  • Excellent performance (velocity up to 800 mm/s and acceleration up to 3000 mm/s²) permit fast door opening.
  • SIDOOR FOC stands for excellent control quality and a weight-independent, travel curve optimized control response.
  • Low noise during operation
  • Service life with gearless EC direct drive is longer since there are only a small number of components susceptible to wear installed.
  • Reduced service requirements and fault minimization during parameter assignment.
  • Asset minimization through the use of standardized SIDOOR additional units and power supplies.
  • Only one motor required for different drive directions left/right
  • SIDOOR User Software (part of the SIDOOR Software Kit, not included in the scope of supply, see "Additional units") enables user-friendly operation and detailed diagnostics.
  • The SIDOOR Service Tool enables simple setup and diagnostics via an event and statistics memory.
  • Easy selection of different drive profiles using the "Minimal editor" function.
  • Small footprint thanks to compact design.
  • Automated functions for enhanced safety.

  Програмирование

  The Software Kit is available as a separate unit(see "Additional units"); it facilitates user-friendly parameter settings and oscilloscope functions via the SIDOOR User Software (part of the SIDOOR Software Kit).

  Технические данные

  Order number		6FB1211-5AT10-7AT2	6FB1211-1AT10-7AT3
  		SIDOOR ATE500E RELAY	SIDOOR ATE500E CAN
  General information
  Product brand name		SIDOOR
  Product designation		Door controller
  Product version		ATE500E Relais	ATE500E CAN
  Optional product expansion		Mains transformer (6FB1112-0AT20-2TR0), NT40 (6FB1112-0AT20-3PS0)
  Manufacturer's article no. of the usable motor		6FB1203-0AT12-7DA0
  Manufacturer's article no. of the usable power supply unit		6FB1112-0AT20-2TR0, 6FB1112-0AT20-3PS0
  Installation type/mounting
  Installation and mounting instructions		No direct sunlight, requirements specific to the end application must be observed. NFPA industry environment: Installation outside a control cabinet only horizontal. NFPA elevator environment: Must be installed in a fire protection enclosure
  Supply voltage
  Type of power supply		via SIDOOR mains transformer / NT40 or via DC
  Rated value (DC)		36 V; with MED280: At 24 V DC max. door speed of 500 mm/s; at 28.8 V DC max. door speed of 800 mm/s
  permissible range, lower limit (DC)		19.2 V
  permissible range, upper limit (DC)		38 V
  Input current
  I²t, min.		30 A²·s
  Power
  Active power input		85 W
  Active power input, max.		540 W
  Active power input (standby mode)		5 W	6 W
  Digital inputs
  Control inputs isolated		Yes
  Control inputs p-switching		Yes
  Fuse protection at DC end (recommendation)		Use of a circuit breaker in the supply path according to 60898-1, 8A, C-characteristic type SIEMENS: 5SY4108-7 or 5SY4108-7KK11
  Input voltage
  ● per DC input, min.		10 V; Observe polarity !
  ● per DC input, max.		28 V; Observe polarity !
  Input current
  ● per DC input, min.		3 mA
  ● per DC input, max.		15 mA
  Digital outputs
  short-circuit proof		Yes
  Overload-proof		Yes
  Remark		Ensure correct polarity! CAUTION: Do not supply with external voltage!
  Output voltage
  ● Output voltage (DC)		24 V
  Output current
  ● For output (24 V DC), max.		400 mA
  Relay outputs
  Switching capacity of contacts
  — at 30 V DC, min.		0.01 A
  — at 30 V DC, max.		1 A	0.5 A
  — at 50 V DC, min.		0.01 A; 50 V DC switching voltage not released for NFPA-relevant countries
  — at 50 V DC, max.		1 A; 50 V DC switching voltage not released for NFPA-relevant countries
  — at 230 V AC, min.		0.01 A
  — at 230 V AC, max.		1 A
  Mechanical data
  Opening width of door, min.		0.3 m
  Opening width of door, max.		5 m
  Weight of door, max.		280 kg
  Operating cycle frequency of door, max.		180 1/h
  Kinetic energy, max.		75 J
  Counterweight
  ● with SIDOOR MED280 direct drive, max.		6 kg
  Interfaces
  Interfaces/bus type		without	CANopen, CiA standard 301, profile 417
  Number of bus nodes			32
  Isolation
  Overvoltage category		2
  Degree and class of protection
  IP degree of protection		IP20
  Standards, approvals, certificates
  Certificate of suitability according to EN 81		Yes
  CE mark		Yes
  UL approval		Yes
  EAC (formerly Gost-R)		Yes
  TÜV Inspectorate approval		Yes
  TÜV prototype tested		Yes
  Standard for EMC		EN 12015 / EN 12016 / EN 61000-6-2 / EN 61000-6-4 / EN 61326-3-1
  Standard for safety		EN 60335-1 / EN 60950-1 / EN 81-20 / UL61010-1 / UL61010-2-201 / EN ISO 13849-1 Cat. 2 PL d / IEC 62061: SIL2
  Ambient conditions
  Ambient temperature during operation
  ● min.		-25 °C
  ● max.		50 °C
  ● Remark		Bolt the controller onto a metal mounting surface so that thermal conductivity is ensured
  Ambient temperature during storage/transportation
  ● Storage, min.		-40 °C
  ● Storage, max.		85 °C
  Air pressure acc. to IEC 60068-2-13
  ● Installation altitude above sea level, max.		2 000 m
  Relative humidity
  ● No condensation, min.		10 %
  ● No condensation, max.		93 %
  Mechanics/material
  Service life
  ● Mean time between failures (MTBF)		19 y
  Dimensions
  Width		320 mm
  Height		60 mm
  Depth		80 mm




  Дальнейшая информация

  For further product details, refer to

  • "SIDOOR ATE500E" System Manual, https://support.industry.siemens.com/cs/de/en/view/109480354
  • “SIDOOR Controllers for elevator doors” Operating Instructions,http://support.automation.siemens.com/WW/view/en/101978636
