ANT D5 for RF290R and SLG D11 / D11S

• Заказные данные
  (1)
• Аксессуары
  (5)
• Информационные материалы

  Информационные материалы

  The ANT D5 is a universal antenna designed for warehouse, logistics and distribution applications. The high degree of protection (IP65) enables the antenna to be used under harsh industrial conditions. The antenna is designed for transponders that are directed sideways past the antenna.

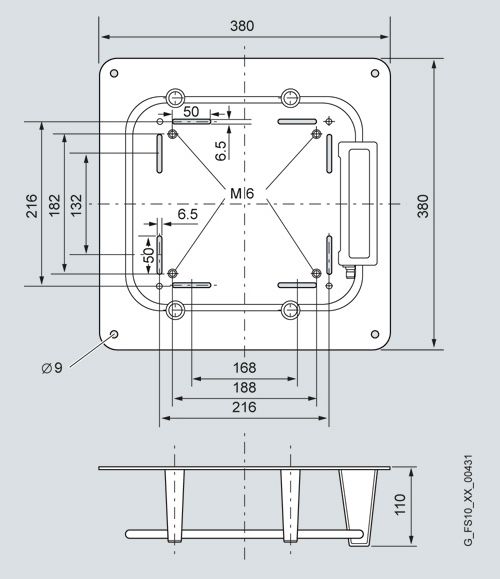

  Чертеж



  ANT D5 antenna

  Технические данные

  Order number		6GT2698-5AA10
  Product type designation		Antenna ANT D5
  Suitability for operation		RF290R, MOBY D with SLG D10, D11
  Wireless frequencies
  Transmission frequency Rated value		13.56 MHz
  Electrical data
  Type of electrical connection of the antenna		1-pol. TNC-Stecker
  Design of plug-in connection		female
  Mechanical data
  Material		Aluminum/plastic
  Color		black/gray
  Mounting distance
  ● relating to metal surfaces recommended minimum		0 m
  Permitted ambient conditions
  Ambient temperature
  ● during operation		-20 ... +55 °C
  ● during storage		-25 ... +70 °C
  ● during transport		-25 ... +70 °C
  Protection class IP		IP65
  Shock resistance		according to EN 60721-3-7 Class 7M2
  Shock acceleration		300 m/s²
  Vibrational acceleration		10 m/s²
  Design, dimensions and weight
  Width		380 mm
  Height		380 mm
  Depth		110 mm
  Net weight		2 kg
  Mounting type		4 screws M6
  Cable length of antenna cable		3.3 m
  Standards, specifications, approvals
  Certificate of suitability		CE, FCC
  Accessories
  accessories		Antenna cables 3.3 m, 10 m, extension 7.2 m
