ANT D2 for SLG D11 / SLG D11S

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы

  The ANT D2 antenna is designed for transponders that are directed sideways past the antenna. This antenna is specially designed for high speeds with a small antenna size, e.g. in overhead conveyors, assembly lines, production and order picking. It can be mounted directly onto metal surfaces.

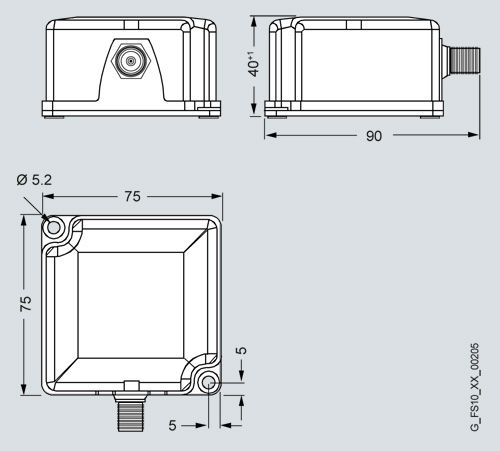

  Чертеж



  ANT D2 antenna

  Технические данные

  Order number		6GT2698-5BB00
  Product type designation		Antenna ANT D2
  Suitability for operation		MOBY D with SLG D11
  Wireless frequencies
  Transmission frequency Rated value		13.56 MHz
  Electrical data
  Type of electrical connection of the antenna		1-pol. TNC-Stecker
  Design of plug-in connection		female
  Mechanical data
  Material		PA 12
  Color		Anthracite
  Tightening torque of the screw for securing the equipment maximum		2 N·m
  Mounting distance
  ● relating to metal surfaces recommended minimum		0 m
  Permitted ambient conditions
  Ambient temperature
  ● during operation		-25 ... +70 °C
  ● during storage		-40 ... +85 °C
  ● during transport		-40 ... +85 °C
  Protection class IP		IP65
  Shock resistance		according to EN 60721-3-7 Class 7M2
  Shock acceleration		500 m/s²
  Vibrational acceleration		100 m/s²
  Design, dimensions and weight
  Width		75 mm
  Height		75 mm
  Depth		40 mm
  Net weight		260 g
  Mounting type		2 screws M5, mounting dependent on direction
  Cable length of antenna cable		3.3 m
  Standards, specifications, approvals
  Certificate of suitability		CE, FCC, IC, cULus
