MAG 8000 CT для коммерческого учета (7ME6820)

Заказные данные
(1)
Аксессуары
(94)

Особенности

MI-001, OIML R49/OIML R49MAA
Возможность измерения в обоих направлениях
Закапываемые приборы, IP 68
Долгосрочная стабильность и точность
Отсутствие подвижных частей - исключает необходимость в обслуживании
Незначительное падение давления
Возможность подключения к большинству распространенных систем AMR
Возможность измерения слабых токов

Технические данные

Meter
Accuracy	OIML R 49/OIML R 49 MAA for DN 50 … DN 300 (2" … 12"), Class I and II with turn down up to Q3/Q1 = 400 at Q2/Q1 = 1.6
	MI-001 verification for DN 50 … DN 600 (2" … 24"), Class II with turn down ratio Q3/Q1 = 250, Q3/Q1 = 200 or Q3/Q1 = 160 at Q2/Q1 = 1.6
	FM Fire Service for DN 50, DN 80, DN 100, DN 150, DN 200, DN 250, and DN 300 (2", 3", 4", 6", 8", 10", and 12") ± 1,5 % (Q_min to Q_max)
Low flow cut-off (default)	0.25 %
Media conductivity	Clean water > 20 μs/cm
Temperature
Ambient	-20 … +60 °C (-4 … +140 °F) MI-001: -25 .. +55 ºC (-13 ... +131 ºF)
Media	0.1 … 50 °C (32 … 122 °F)
Storage	-40 … +70 °C (-22 … +158 °F)
Enclosure rating
Remote sensor	IP68 to EN 60529/NEMA 6P, 10 mH₂O cont.
Compact version	IP68 to EN 60529/NEMA 6P, 3 mH₂O for six months
Certificates and approvals
Calibration (standard)	2 x 25 % and 2 x 90 %
Material certificate EN 10204-3.1	Available when ordering together with meter¹⁾
Drinking water approvals	NSF/ANSI Standard 61²⁾ (cold water) USA
	WRAS (BS 6920 cold water) UK
	ACS Listed France
	DVGW W270 Germany
	Belgaqua (B)
	MCERTS (GB)
Fire Service approval	FM Fire Service (1044)³⁾
Custody transfer approval	OIML R 49 and OIML R 49 MAA approval (DN 50 ... DN 300 (2" ... 12"))
	MI-001 approval (DN 50 ... DN 600 (2" ... 24")) (Number: DK-0200-MI-001-011)
	PTB K7.2
Conformity	CEN EN 14154, ISO 4064
	PED: 2014/68/EU⁴⁾
	For pressure/temperature curves see MAG 3100 on page 3/xx
	EMC: IEC/EN 61326
	CRN (DN 50 ... DN 1200 (2" ... 48"))
Sensor version	DN 50 … 600 (2" … 24")
Sensor material	Carbon steel ASTM A 105, with corrosion resistant two-component epoxy coating (150 μm/300 μm) Corrosivity category C4, according to ISO 12944-2
Measuring principle	Electromagnetic induction
Excitation frequency
Basic version
Battery-powered	DN 50 … 150 (2” … 6”): 1/15 Hz
Battery-powered	DN 200 … 600 (8” … 24”): 1/30 Hz
Mains-powered	DN 50 … 150 (2” … 6”): 6.25 Hz
Mains-powered	DN 200 … 600 (8” … 24”): 3.125 Hz
Advanced version
Battery-powered	DN 50 … 150 (2” … 6”): 1/15 Hz (adjustable up to 6.25 Hz; reduced battery lifetime)
Battery-powered	DN 200 … 600 (8” … 24”): 1/30 Hz (adjustable up to 3.125 Hz; reduced battery lifetime)
Mains-powered	DN 50 … 150 (2” … 6”): 6.25 Hz
Mains-powered	DN 200 … 600 (8” … 24”): 3.125 Hz
Flanges
EN 1092-1 (DIN 2501)	DN 50 … 150 (2" … 6"): PN 16 (232 psi)
EN 1092-1 (DIN 2501)	DN 200 … 300 (8" … 12"): PN 10 or PN 16 (145 psi or 232 psi) up to DN 600 (24”) in preparation
ANSI 16.5 Class 150	2" … 12": 20 bar (290 psi) up to DN 600 (24”) in preparation
AWWA C-207	28" … 48": PN 10 (145 psi)
AS 4087	DN 50 … 300 (2" … 12"): PN 16 (232 psi) up to DN 600 (24") in preparation
Liner	EPDM
Electrode and grounding electrodes	Hastelloy C276/2.4819
Grounding straps	Grounding straps are premounted from the factory on each side of the sensor.

¹⁾ Has to be ordered with the meter. It is not possible to order the certificate afterwards.

²⁾ Including Annex G

³⁾ Not for sensors with 300 m coating.

⁴⁾ For further information on the PED standard and requirements see page 9/6.

MAG 8000 CT (Revenue program) water meter type approval

MAG 8000 CT program is type approved and verified according to international water meter standard OIML R 49. The custody transfer program is approved as Class I and Class II, for the sensor program from DN 50 to DN 300, at different Q3 and Q3/Q1. Q2/Q1 = 1.6 and follows OIML R 49 specification.

OIML R 49/2006-DK2-10.01 Revision 1 approval specification for Class I (1 %)¹⁾

Size	DN 50 (2")	DN 65 (2½")	DN 80 (3")	DN 100 (4")	DN 125 (5")	DN 150 (6")	DN 200 (8")	DN 250 (10")	DN 300 (12")	DN 350 (14")	DN 400 (16")	DN 450 (18")	DN 500 (20")	DN 600 (24")
„R“ Q3/Q1	250	250	250	250	250	250	250	250	125	-	-	-	-	-
Q1 [m³/h]	0.25	0.40	0.63	1.00	1.60	2.50	4.00	6.40	12.8	-	-	-	-	-
Q2 [m³/h]	0.40	0.64	1.00	1.60	2.60	4.00	6.40	10.24	20.48	-	-	-	-	-
Q3 [m3/h]	63	100	160	250	400	630	1000	1600	1600	-	-	-	-	-
Q4 [m³/h]	78.75	125	200	312.5	500	787.5	1250	2000	2000	-	-	-	-	-

OIML R 49/2006-DK2-10.01 Revision 1 approval specification for Class II (2 %)¹⁾

Size	50 (2")	65 (2½")	80 (3")	100 (4")	125 (5")	150 (6")	200 (8")	250 (10")	300 (12")	DN 350 (14")	DN 400 (16")	DN 450 (18")	DN 500 (20")	DN 600 (24")
„R“ Q3/Q1	400	400	400	400	400	400	400	400	200	-	-	-	-	-
Q1 [m³/h]	0.16	0.25	0.40	0.63	1.00	1.60	2.50	4.00	10.40	-	-	-	-	-
Q2 [m³/h]	0.25	0.40	0.63	1.00	1.60	2.50	4.00	6.40	16.0	-	-	-	-	-
Q3 [m³/h]	63	100	160	250	400	630	1000	1600	1600	-	-	-	-	-
Q4 [m³/h]	78.75	125	200	312.5	500	787.5	1250	2000	2000	-	-	-	-	-

¹⁾ The product will be delivered according to requested specifications, which may deviate from the specifications of the approval frame described in tables below.

MAG 8000 CT (Revenue program) MI-001

MAG 8000 CT program is type approved according to international water meter standard OIML R 49. Since the first November 2006 the MI-001 water meter directive is in force, which means that all water meters can be sold across the EU borders if the water meters contain a MI-001 label.

The MAG 8000 CT MI-001 verified and labeled products are a Class II aproval according to Directive 2014/32/EU of the European Parliament and Council of 26 February, 2014 on measuring instruments, Annex III Water meters (MI-001) in the sizes from DN 50 to DN 400.

The MID certification is obtained as a B + D module approval according to the above mentioned directive.

Module B: Type approval according to OIML R 49

Module D: Quality insurance approval of production

MAG 8000 CT MI-001 verified and labeled products at a given Q3 and Q4/Q3 = 1.25 and Q2/Q1 = 1.6 measuring ranges see below table:

7ME6820-xxxx1	DN 50 (2“)	DN 65 (2½“)	DN 80 (3“)	DN 100 (4“)	DN 125 (5“)	DN 150 (6“)	DN 200 (8“)	DN 250 (10“)	DN 300 (12“)	DN 350 (14“)	DN 400 (16“)	DN 450 (18")	DN 500 (20")	DN 600 (24")
„R“ Q3/Q1	25	25	25	25	25	25	25	25	25	25	25	25	25	25
Q4 [m³/h]	20	31.25	50	78.75	125	200	312.5	500	787.5	1250	1250	1250	2000	3125
Q3 [m³/h]	16	25	40	63	100	160	250	400	630	1000	1000	1000	1600	2500
Q2 [m³/h]	0.96	1.60	2.60	4.03	6.40	10.24	16.00	25.60	40.3	64.0	64.0	64	102.4	160
Q1 [m³/h]	0.60	1.00	1.60	2.52	4.00	6.40	10.00	16.00	25.2	40.0	40.0	40	64	100

7ME6820-xxxx2	DN 50 (2“)	DN 65 (2½“)	DN 80 (3“)	DN 100 (4“)	DN 125 (5“)	DN 150 (6“)	DN 200 (8“)	DN 250 (10“)	DN 300 (12“)	DN 350 (14“)	DN 400 (16“)	DN 450 (18")	DN 500 (20")	DN 600 (24")
„R“ Q3/Q1	63	63	63	63	63	63	63	63	63	63	63	63	63	63
Q4 [m³/h]	20	31.25	50	78.75	125	200	312.5	500	750	1250	1250	3125	3125	5000
Q3 [m³/h]	16	25	40	63	100	160	250	400	630	1000	1000	2500	2500	4000
Q2 [m³/h]	0.41	0.63	1.02	1.60	2.54	4.06	6.35	10.16	16.00	25.4	25.4	63.49	63.49	101.6
Q1 [m³/h]	0.25	0.40	0.63	1.00	1.59	2.54	3.97	6.35	10.00	15.9	15.9	39.68	39.68	63.49

7ME6820-xxxx3	DN 50 (2“)	DN 65 (2½“)	DN 80 (3“)	DN 100 (4“)	DN 125 (5“)	DN 150 (6“)	DN 200 (8“)	DN 250 (10“)	DN 300 (12“)	DN 350 (14“)	DN 400 (16“)	DN 450 (18")	DN 500 (20")	DN 600 (24")
„R“ Q3/Q1	80	80	80	80	80	80	80	80	80	80	80	80	80	80
Q4 [m³/h]	20	31.25	50	78.75	125	200	312.5	500	1250	2000	2000	5000	5000	7875
Q3 [m³/h]	16	25	40	63	100	160	250	400	1000	1600	1600	4000	4000	4000
Q2 [m³/h]	0.32	0.50	0.80	1.20	2.00	3.20	5.00	8.00	20	32	32	80	80	126
Q1 [m³/h]	0.20	0.31	0.50	0.75	1.25	2.00	3.13	5.00	12.50	20	20	50	50	78.75

7ME6820-xxxx4	DN 50 (2“)	DN 65 (2½“)	DN 80 (3“)	DN 100 (4“)	DN 125 (5“)	DN 150 (6“)	DN 200 (8“)	DN 250 (10“)	DN 300 (12“)	DN 350 (14“)	DN 400 (16“)	DN 450 (18")	DN 500 (20")	DN 600 (24")
„R“ Q3/Q1	160	160	160	160	160	160	160	160	160	-	-	-	-	-
Q4 [m³/h]	50	78.75	125	200	312.5	500	787.5	1250	2000	-	-	-	-	-
Q3 [m³/h]	40	63	100	160	250	400	630	1000	1600	-	-	-	-	-
Q2 [m³/h]	0.40	0.63	1.00	1.60	2.50	4.00	6.30	10.00	16.00	-	-	-	-	-
Q1 [m³/h]	0.25	0.39	0.63	1.00	1.56	2.50	3.94	6.25	10.00	-	-	-	-	-

7ME6820-xxxx5	DN 50 (2“)	DN 65 (2½“)	DN 80 (3“)	DN 100 (4“)	DN 125 (5“)	DN 150 (6“)	DN 200 (8“)	DN 250 (10“)	DN 300 (12“)	DN 350 (14“)	DN 400 (16“)	DN 450 (18")	DN 500 (20")	DN 600 (24")
„R“ Q3/Q1	200	200	200	200	200	200	200	200	200	-	-	-	-	-
Q4 [m³/h]	50	78.75	125	200	312.5	500	787.5	1250	2000	-	-	-	-	-
Q3 [m³/h]	40	63	100	160	250	400	630	1000	1600	-	-	-	-	-
Q2 [m³/h]	0.32	0.50	0.80	1.28	2.00	3.20	5.04	8.00	12.8	-	-	-	-	-
Q1 [m³/h]	0.20	0.32	0.50	0.80	1.25	2.00	3.15	5.00	8.00	-	-	-	-	-

7ME6820-xxxx6	DN 50 (2“)	DN 65 (2½“)	DN 80 (3“)	DN 100 (4“)	DN 125 (5“)	DN 150 (6“)	DN 200 (8“)	DN 250 (10“)	DN 300 (12“)	DN 350 (14“)	DN 400 (16“)	DN 450 (18")	DN 500 (20")	DN 600 (24")
„R“ Q3/Q1	250	250	250	250	250	250	250	250	-	-	-	-	-	-
Q4 [m³/h]	50	78.75	125	200	312.5	500	787.5	1250	-	-	-	-	-	-
Q3 [m³/h]	40	63	100	160	250	400	630	1000	-	-	-	-	-	-
Q2 [m³/h]	0.26	0.40	0.64	1.02	1.60	2.56	4.00	6.40	-	-	-	-	-	-
Q1 [m³/h]	0.16	0.25	0.40	0.64	1.00	1.60	2.52	4.00	-	-	-	-	-	-

The Label is placed on the side of the encapsulation.

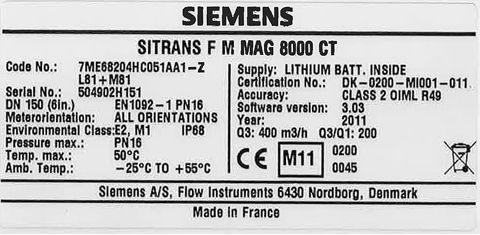

An example of the product label is shown below:

Installation conditions

Please refer to “System information SITRANS F M electromagnetic flowmeters”.

Battery operation time and calculation

The battery operation time depends on the connected battery pack as well as the operation condition of the meter.

MAG 8000 calculates the remaining capacity every 4 hours and includes all consuming elements. Calculation compensates for temperature influence on battery capacity (drawing).

MAG 8000 CT (7ME6820) for Fire Service applications

MAG 8000 CT (7ME6820) is FM Fire Service approved for automatic fire protection systems according to the Fire Service Meters Standard, Class Number 1044. The approval is applicable for the sizes 50, DN 80, DN 100, DN 150, DN 200, DN 250, and DN 300 (2", 3", 4", 6", 8", 10", and 12") with ANSI B16.5 Class 150 flanges. The FM Fire Service approved product can be ordered via the Z-options P20, P21 and P22.
