I/O modules for use in the control cabinet

• Информационные материалы

  Информационные материалы

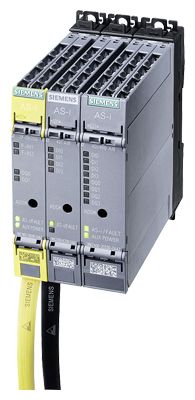

  SlimLine Compact modules SC17.5F, SC17.5 and SC22.5

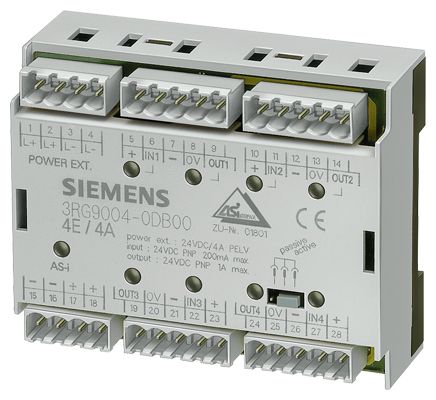

  F90 module

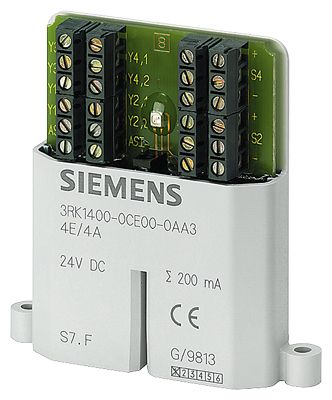

  Flat modules

  For AS‑Interface applications inside control cabinets, there are various module series for the most diverse requirements:

  • SlimLine Compact – particularly slim design ideal for space-saving use in the control cabinet
  • Module F90 – particularly flat design for flat control boxes
  • Flat module – special design for integration into customer-specific solutions

  The existing SlimLine series of modules S22.5 and S45 are being replaced by the innovative new devices in the SlimLine Compact SC17.5, SC17.5F and SC22.5 series. The previous SlimLine modules are still available as replacements for existing systems.

  Available versions

  The following table provides an overview of the key features of the different series of control cabinet modules.

  Feature	SlimLine Compact	F90 modules	Flat modules
  Digital I/O	✓	✓	✓
  Analog I/O	✓	--	--
  Safe inputs	✓	--	--
  Relay outputs	✓	--	--
  A/B slave	✓	--	--
  Mounting onto TH 35 standard mounting rail according to IEC 60715	✓	✓	--
  Wall mounting using push-in lugs	✓	--	--
  Integrated lugs for screw fixing	--	--	✓
  Module width in mm	17.5 or 22.5	90	80





  ✓ Available

  -- Not available
