DME20 DRIVE-CLiQ Hub Module

• Заказные данные
  (1)
• Аксессуары
  (1)
• Информационные материалы

  Информационные материалы



  DME20 DRIVE-CLiQ Hub Module

  The DME20 DRIVE-CLiQ Hub Module is used to implement a star-shaped topology of a DRIVE‑CLiQ line. Two DME20 DRIVE‑CLiQ Hub Modules can be connected in series (cascaded).

  Дизайн

  The following are located on the DME20 DRIVE-CLiQ Hub Module:

  • 6 DRIVE‑CLiQ sockets for connecting 5 DRIVE-CLiQ devices
  • 1 connection for the electronics power supply via the 24 V DC circular supply connector with conductor cross-section 4 × 0.75 mm² (pins 1+2 internally bridged; pins 3+4 internally bridged)

  The scope of supply of the DME20 DRIVE‑CLiQ Hub Modules includes:

  • 6 blanking plugs for sealing unused DRIVE‑CLiQ sockets

  Интеграция

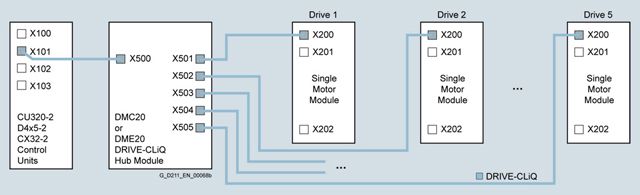

  Signals from more than one encoder can be collected with one DRIVE-CLiQ Hub Module and forwarded to the Control Unit through a single DRIVE-CLiQ cable.



  With a DRIVE‑CLiQ Hub Module, individual DRIVE‑CLiQ nodes can be removed without interrupting the data exchange with the remaining devices in the DRIVE‑CLiQ line.



  The DME20 DRIVE‑CLiQ Hub Module in degree of protection IP67 is suitable for installation outside control cabinets.

  Технические данные

  	DME20 DRIVE-CLiQ Hub Module 6SL3055-0AA00-6AB0
  Current requirement, max. at 24 V DC without DRIVE‑CLiQ supply	0.15 A
  Conductor cross-section, max.	4 × 0.75 mm2
  Degree of protection	IP67
  Dimensions
  Width	99 mm (3.90 in)
  Height	149 mm (5.87 in)
  Depth	55.7 mm (2.19 in) (without connector)
  Weight, approx.	0.8 kg (1.76 lb)
  Certificate of suitability	cULus
