SCALANCE X-200IRT PRO managed

Заказные данные
(3)
Аксессуары
(14)

SCALANCE X-200IRT PRO switches are especially designed for constructing isochronous real-time (IRT) Industrial Ethernet networks in line, star and ring topologies at transmission rates of 10/100 Mbit/s (Redundancy Manager integrated); construction of redundant ring connections possible.

Optimized performance due to combination of the switching mechanisms "Cut Through" and "Store and Forward"
Fast media redundancy due to the integrated redundancy manager for Fast Ethernet
Rugged, industry-standard station connections with PROFINET-compatible plug-in connectors that offer additional strain relief and bending strain relief thanks to latching on the enclosure
PROFINET diagnostics, SNMP access, integrated web server and automatic e-mail transmission function for remote diagnostics and signaling via the network
Different device versions with copper and fiber-optic interfaces (BFOC, SC RJ)
Implementation of cabinet-free plant concepts with PROFINET-compliant push pull connection systems with device variants with IP65/67 protection

Product versions

SCALANCE X204 IRT PRO

For the construction of electrical Industrial Ethernet linear, star or ring topologies with four electrical ports in degree of protection IP65 with PROFINET-compliant push-pull connection technology

SCALANCE X202-2P IRT PRO

For the construction of electrical/optical Industrial Ethernet linear bus, star or ring structures with two electrical and two optical POF/PCF fiber optic ports in degree of protection IP65 with PROFINET-compliant push-pull connection technology

SCALANCE X201-3P IRT PRO

For the construction of electrical/optical Industrial Ethernet linear bus, star or ring topologies with one electrical and three optical POF/PCF fiber-optic ports in degree of protection IP65 with PROFINET-compliant push-pull connection technology

Applicable to all versions:

Integral redundancy manager (RM)
Device diagnostics with LEDs (power, link status, data communication)
Remote diagnosis is possible through signaling contact (signal mask can be set locally using buttons), PROFINET, SNMP and Web browser
Automatic e-mail send function
Rugged, industry-standard station connections with PROFINET-compatible RJ45 connectors that offer additional strain relief and bending strain relief thanks to latching on the housing

The SCALANCE X-200IRT PRO switches, based on PROFINET, satisfy the real-time requirements of the field level up to high-performance motion control applications.

Область применения

The SCALANCE X-200IRT PRO Industrial Ethernet switches permit the construction of isochronous real-time (IRT) Industrial Ethernet line and star topologies. Ring structures can also be designed using the integral redundancy manager (RM). Redundant ring connections are also possible. Thanks to innovative switching technology, the special requirements of automation with regard to line topology, isochronous mode for motion control applications and unlimited IT openness have been satisfied for the first time within a single technology based on the PROFINET standard.

The switches with IP65 protection are designed for cabinet-free mounting (PROFINET-compliant push pull connection technology).

Real-time Ethernet

Interfacing of the PROFINET IO Devices to the PROFINET IO Controller through high-performance, optimized data transmission
Coexistence of isochronous mode for motion control applications and IT openness:
Reaction-free transmission of real-time and non-real-time communication on the same line

Also through isochronous real-time (IRT) Ethernet

Isochronous real-time communication based on the transmission procedure of the IEEE 802 standard by combining the switching mechanisms "Cut Through" and "Store and Forward"
For drive controls, PROFINET with isochronous real-time is the best performing system worldwide with regard to its isochronronous and deterministic response.
With a cycle time of 1 ms, for example, axes can be controlled in isochronous mode whereby 50% of the bandwidth is available solely for IT communication.

Дизайн

The SCALANCE X-200IRT PRO switches with a rugged metal housing to IP65 degree of protection are optimized for mounting on a standard rail and an S7-300 rail. Direct wall mounting in various positions is also possible. Thanks to the S7-300 housing dimensions, the devices are suitable for integration into an automation solution with S7-300 components.
The switches with IP65 protection have two 5-pin push-pull connectors via which the supply voltage is fed and forwarded. In addition, the load voltage circuit is also looped through for the ET200pro devices further along the line. The devices with IP65 protection thus have no redundant voltage feed, but permit optimal integration into cabinet-free plant concepts with ET200pro modules.
The status information (power, link status, data traffic, voltage supply, signaling contact) is indicated by means of a row of LEDs.

The SCALANCE X-200IRT PRO devices are available with the following port types:

10/100BaseTX, push-pull RJ45 connection
RJ45 port, automatic detection of the data rate (10 or 100 Mbit/s), with Autosensing and Autocrossover function for connecting IE FC cables via IE FC RJ45 Plug PRO over distances up to 100 m
100BaseFX, push-pull SC RJ connections
SC RJ ports for connection to Industrial Ethernet POF (50 m) and PCF FOC (100 m) using SC RJ plug PRO connectors

Функции

4-port switch for configuring electrical and optical Industrial Ethernet line, star and ring topologies
Integral redundancy manager for design of ring topologies
Integral standby function for redundant coupling of two rings
Extremely short cycle times with highly accurate clock-pulse rates thanks to integrated real-time functions
Bumpless ring redundancy by sending message frames twice in the ring, by means of PROFINET-compliant MRPD procedure (Media Redundancy for Planned Duplication according to IEC 61158)
System-wide clock accuracy (less than 1 ms)
Uncrossed connecting cables can be used due to Autocrossover function integrated in the ports
Load disconnection through integral switch functionality
Easy diagnostics using signaling contact, SNMP and Web browser
Automatic e-mail function
Integration into the diagnostics of a PROFINET IO-Controllers for a consistent diagnostics concept, including network infrastructure
Fast device replacement in the event of a fault by using the optional C-PLUG swap medium (not included in scope of supply)

Network topology and network configuration

The SCALANCE X-200IRT PRO Industrial Ethernet Switches are usually installed together with the stations to be connected (e.g. ET 200S) directly onto the machine. When configuring the network, it is necessary to observe the following boundary conditions:

Length of the TP cable between two SCALANCE X switches:
- Max. 100 m with IE FC cable and IE FC RJ45 Plug PRO
- Max. 10 m with TP Cord
Length of the optical cables
- Max. 4000 m with Industrial Ethernet glass fiber-optic cables (62.5/125 µm)
- Max. 5000 m with Industrial Ethernet glass fiber-optic cables (50/125 µm)
- Max. 100 m with Industrial Ethernet PCF fiber-optic cables.
- Max. 50 m with Industrial Ethernet POF fiber-optic cables.
IP Address:
The IP address is assigned by means of the DHCP (Dynamic Host Configuration Protocol). If there is no corresponding server in the network, the IP address can be assigned using the supplied software tool PST (Primary Setup Tool) or STEP 7. The SCALANCE X-200IRT PRO switches and their real-time functions are configured with STEP 7.

Commissioning and diagnostics

PROFINET diagnostic alarms from SCALANCE X-200IRT PRO switches can be displayed with the appropriate SIMATIC Engineering Tools and processed in the control unit. The engineering outlay for the PLC and HMI have been drastically reduced due to the complete integration in the SIMATIC concept for system error messages.

The SCALANCE X-200IRT PRO Industrial Ethernet switches can also be integrated into a network management system through the standardized protocol SNMP (Simple Network Management Protocol). In the event of a device fault, error messages (SNMP traps) can be sent to a network system or as e-mail to a specified network manager.

The integral Web server enables configuration and diagnosis settings to be made using a standard browser. Statistical information can also be read out over the Web server. Warning thresholds, and alarms generated by them, permit early recognition of critical fiber states (only with POF). Cable failures (fiber breakage) can thus be avoided, and plant downtimes reduced, since maintenance work can be carried out at an early point in time and outside production periods.

The following information is displayed on site by LEDs:

Power
Port status
Data traffic
RM activated
POF cable diagnostics (for POF versions only)

The Industrial Ethernet switches of the SCALANCE X-200IRT PRO line can also be monitored over the floating signaling contact.

Configuration example for SCALANCE X204IRT PRO

Configuration with high-speed redundancy in the optical ring

Redundant coupling of two subnets with SCALANCE X-200IRT PRO

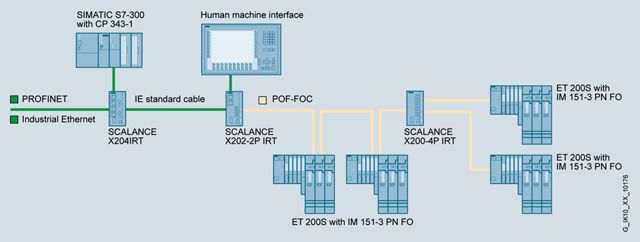

Mixed network topology with plastic fiber-optic cables and twisted-pair cables

Особенности

The ideal solution for constructing isochronous real-time (IRT) Industrial Ethernet segments especially in line, star and ring topologies with copper and fiber-optic cabling (glass FOC, PCF FOC, POF FOC)
Reliable data communication thanks to rugged, industry-standard device connection using PROFINET-compatible connectors (IE FC RJ45 Plug 2x2) that offer additional strain relief and bending strain relief thanks to latching on the enclosure
High network availability in ring topologies, without reconfiguration times, when using the PROFINET-compliant MRPD process (Media Redundancy for Planned Duplication according to IEC 61158)
Fast and easy diagnosis with LEDs on the device, through the integral Web server and through signaling contacts
Easy integration in the process diagnosis and system diagnosis with PROFINET
Configuration and diagnostics integrated into STEP 7 provide significant benefits during the engineering, start-up and operating phases of a plant
Module replacement without the need for a programming device, using the C-PLUG swap media for backing up the configuration data

Технические данные

Order number	6GK5204-0JA00-2BA6	6GK5202-2JR00-2BA6	6GK5201-3JR00-2BA6
Product type designation	SCALANCE X204IRT PRO	SCALANCE X202-2P IRT PRO	SCALANCE X201-3P IRT PRO
Transmission rate
Transfer rate	10 Mbit/s, 100 Mbit/s	10 Mbit/s, 100 Mbit/s	10 Mbit/s, 100 Mbit/s
Interfaces for communication integrated
Number of electrical connections
● for network components or terminal equipment	4	2	1
Number of 100 Mbit/s SC ports
● for multimode	0	2	3
Number of 1000 Mbit/s LC ports
● for multimode	0	0	0
● for single mode (LD)	0	0	0
Interfaces others
Number of electrical connections
● for signaling contact	1	1	1
● for power supply	1	1	1
Type of electrical connection
● for signaling contact	5‑pin M12 socket	5‑pin M12 socket	5‑pin M12 socket
● for power supply	5-pin push-pull plug PRO socket	5-pin push-pull plug PRO socket	5-pin push-pull plug PRO socket
design of the removable storage
● C-PLUG	Yes	Yes	Yes
Signal-Inputs/outputs
Operating voltage of the signaling contacts
● at DC Rated value	24 V	24 V	24 V
Operating current of the signaling contacts
● at DC maximum	0.1 A	0.1 A	0.1 A
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage	DC	DC	DC
Supply voltage
● external	24 V	24 V	24 V
● external	18 ... 32 V	18 ... 32 V	18 ... 32 V
Product component fusing at power supply input	Yes	Yes	Yes
Fuse protection type at input for supply voltage	0.6 A / 60 V	1.1 A / 33 V	1.1 A / 33 V
Consumed current maximum	0.2 A	0.3 A	0.33 A
Power loss [W]
● at DC at 24 V	4.8 W	7.2 W	7.92 W
Permitted ambient conditions
Ambient temperature
● during operation	-25 ... +70 °C	-25 ... +60 °C	-25 ... +60 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
Relative humidity
● at 25 °C without condensation during operation maximum	95 %	95 %	95 %
Protection class IP	IP65	IP65	IP65
Design, dimensions and weight
Design	compact	compact	compact
Width	90 mm	90 mm	90 mm
Height	125 mm	125 mm	125 mm
Depth	124 mm	124 mm	124 mm
Net weight	1 kg	1 kg	1 kg
Mounting type
● 35 mm DIN rail mounting	Yes	Yes	Yes
● wall mounting	Yes	Yes	Yes
● S7-300 rail mounting	Yes	Yes	Yes
● S7-1500 rail mounting	No	No	No
Product properties, functions, components general
Cascading in the case of a redundant ring at reconfiguration time of <\~0.3\~s	100	50	50
Cascading in cases of star topology	any (depending only on signal propagation time)	any (depending only on signal propagation time)	any (depending only on signal propagation time)
Product functions management, configuration
Product function
● CLI	Yes	Yes	Yes
● web-based management	Yes	Yes	Yes
● MIB support	Yes	Yes	Yes
● TRAPs via email	Yes	Yes	Yes
● Configuration with STEP 7	Yes	Yes	Yes
● Port mirroring	No	No	No
● multiport mirroring	No	No	No
● with IRT PROFINET IO switch	Yes	Yes	Yes
● PROFINET IO diagnosis	Yes	Yes	Yes
● switch-managed	Yes	Yes	Yes
Protocol is supported
● Telnet	Yes	Yes	Yes
● HTTP	Yes	Yes	Yes
● HTTPS	Yes	Yes	Yes
● TFTP	Yes	Yes	Yes
● FTP	Yes	Yes	Yes
● BOOTP	No	No	No
● DCP	Yes	Yes	Yes
● LLDP	Yes	Yes	Yes
Identification & maintenance function
● I&M0 - device-specific information	Yes	Yes	Yes
● I&M1 – higher-level designation/location designation	Yes	Yes	Yes
Protocol is supported
● SNMP v1	Yes	Yes	Yes
● SNMP v2	Yes	Yes	Yes
● SNMP v3	Yes	Yes	Yes
Product functions Diagnosis
Product function
● Port diagnostics	Yes	Yes	Yes
● Statistics Packet Size	Yes	Yes	Yes
● Statistics packet type	Yes	Yes	Yes
● Error statistics	Yes	Yes	Yes
Product functions DHCP
Product function
● DHCP client	Yes	Yes	Yes
Product functions Redundancy
Product function
● Ring redundancy	Yes	Yes	Yes
● High Speed Redundancy Protocol (HRP)	Yes	Yes	Yes
● high speed redundancy protocol (HRP) with redundancy manager	Yes	Yes	Yes
● high speed redundancy protocol (HRP) with standby redundancy	Yes	Yes	Yes
Protocol is supported Media Redundancy Protocol (MRP)	Yes	Yes	Yes
Product function
● media redundancy protocol (MRP) with redundancy manager	Yes	Yes	Yes
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network	Yes	Yes	Yes
● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)	No	No	No
● Passive listening	Yes	Yes	Yes
Product functions Security
Protocol is supported
● SSH	Yes	Yes	Yes
Product functions Time
Product function
● SICLOCK support	Yes	Yes	Yes
Protocol is supported
● NTP	No	No	No
● SNTP	Yes	Yes	Yes
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4
● for hazardous zone	EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X	EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X	EN 60079-0 : 2006, EN 60079-15: 2005, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1	UL 60950-1, CSA C22.2 No. 60950-1
● for hazardous zone from CSA and UL	ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T4	ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T4	ANSI / ISA 12.12.01, CSA C22.2 No. 213-M1987, CL. 1 / Div. 2 / GP. A, B, C, D T4, CL. 1 / Zone 2 / GP. IIC, T4
● for emitted interference	EN 61000-6-4:2001 (Class A)	EN 61000-6-4:2001 (Class A)	EN 61000-6-4:2001 (Class A)
● for interference immunity	EN 61000-6-4:2001	EN 61000-6-4:2001	EN 61000-6-4:2001
Certificate of suitability CE marking	Yes	Yes	Yes
Certificate of suitability	EN 61000-6-4:2001	EN 61000-6-4:2001	EN 61000-6-4:2001
● C-Tick	Yes	Yes	Yes
● Railway application in accordance with EN 50155	No	No	No
● Railway application in accordance with EN 50124-1	No	No	No
● KC approval	Yes	Yes	Yes
Marine classification association
● American Bureau of Shipping Europe Ltd. (ABS)	Yes
● Bureau Veritas (BV)	Yes
● Det Norske Veritas (DNV)	Yes
● Germanische Lloyd (GL)	No
● Lloyds Register of Shipping (LRS)	Yes
● Nippon Kaiji Kyokai (NK)	Yes
● Polski Rejestr Statkow (PRS)	No
● Royal Institution of Naval Architects (RINA)	No
MTBF at 40 °C	98.55 y	84.99 y	84.99 y
Accessories
Product extension optional C-PLUG	Yes	Yes	Yes

Дальнейшая информация

Selection tool:

To assist in selecting the right Industrial Ethernet switches as well as configuration of modular variants, the SIMATIC NET Selection Tool and the TIA Selection Tool are available at:

SIMATIC NET Selection Tool:

Online version:
http://www.siemens.com/snst
Offline version:
http://www.siemens.com/snst-download

TIA Selection Tool:

http://www.siemens.com/tia-selection-tool
