  The SIMATIC RF622T transponder has a capacity of 4 KB FRAM, and enables the storage of up to 3 424 bytes of user data on tagged objects, as well as facilitating rapid access to them. It is therefore ideally suited to use in distributed configurations in the fields of production control, asset management and intra-logistics.

  The SIMATIC RF622T offers a considerable reading range of up to 3 meters on non-metallic surfaces. It can also be fixed directly to metal surfaces using the optional spacer.

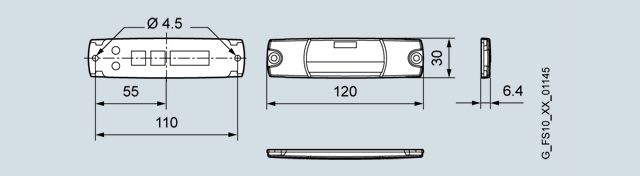

  Чертеж



  RF622T large-memory transponder

  Технические данные

  Order number		6GT2810-4HC80
  Product type designation		RF622T transponder
  Suitability for operation		RF600
  Wireless frequencies
  Operating frequency		860 ... 960 MHz
  Electrical data
  Range maximum		3 m; observe system manual RF600: overrange is possible, range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964
  Protocol with radio transmission		EPCglobal Class 1 Gen 2 / ISO 18000-6C
  Transfer rate with radio transmission maximum		320 kbit/s
  Product feature multitag-capable		Yes
  Polarization		Linear
  Product component Backup battery		No
  Memory
  Type of memory		FRAM
  Storage capacity of the user memory		3 424 byte
  Type of memory organization		EPC memory 496 bits, user memory 3424 bytes, TID memory 32 bytes
  Number of read cycles at ambient temperature < 40 °C maximum		10 000 000 000
  Number of write cycles at ambient temperature < 40 °C maximum		10 000 000 000
  Data retention time at ambient temperature < 40 °C not less than		10 y
  Property of memory		lock, unlock, write protection, password protection
  Type of transponder chip used		Fujitsu MB97R803
  Mechanical data
  Material		PA12
  Color		anthracite
  Tightening torque of the screw for securing the equipment maximum		1 N·m
  Mounting distance relating to metal surfaces recommended minimum		5 mm
  Permitted ambient conditions
  Ambient temperature
  ● during read/write access		-20 ... +85 °C
  ● outside the read/write area		-40 ... +85 °C
  ● during storage		-40 ... +80 °C
  Protection class IP		IP67
  Shock resistance		According to DIN EN 60721-3-7 Class 7 M3
  Shock acceleration		1 000 m/s²
  Vibrational acceleration		500 m/s²
  Resistance to mechanical stress		Torsion and bending stress not permissible
  Design, dimensions and weight
  Width		120 mm
  Height		6.5 mm
  Depth		30 mm
  Net weight		4 g
  Mounting type		2 screws M4, spacer (see accessories)
  Product properties, functions, components general
  Product feature
  ● silicon-free		Yes
  ● printable		Yes
  Printing process		Laser inscription
  Accessories
  accessories		Spacers
