RF625T

• Заказные данные
  (2)
• Информационные материалы

  Информационные материалы

  The SIMATIC RF625T disk transponder can be recessed in metal, as well as flush-mounted on metal and on non-metallic surfaces.

  Thanks to its rugged design and high IP68 degree of protection, it is ideal for use in industrial environments, even for demanding production processes.

  The SIMATIC RF625T can not only be used for applications in the field of installation, production and logistics, but also for the permanent equipping of tools, machines and plants for RFID-based asset management.

  This transponder is available in two frequency versions for 865 to 868 MHz (ETSI) and 902 to 928 MHz (FCC, CMIIT).

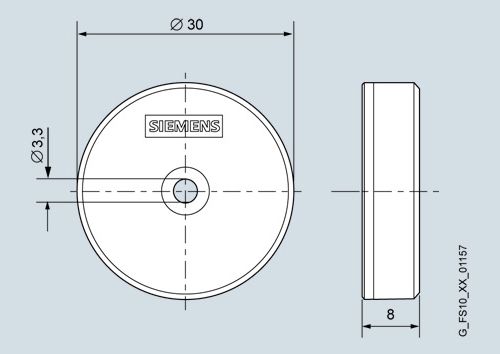

  Чертеж



  Transponder SIMATIC RF625T

  Технические данные

  Order number		6GT2810-2EE00	6GT2810-2EE01
  Product type designation		RF625T transponder	RF625T transponder
  Suitability for operation		RF600	RF600
  Wireless frequencies
  Operating frequency		865 ... 868 MHz	902 ... 928 MHz
  Electrical data
  Range maximum		1.5 m; observe system manual RF600: overrange is possible, range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964	1.5 m; observe system manual RF600: overrange is possible, range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964
  Protocol with radio transmission		EPCglobal Class 1 Gen 2 / ISO 18000-6C	EPCglobal Class 1 Gen 2 / ISO 18000-6C
  Transfer rate with radio transmission maximum		320 kbit/s	320 kbit/s
  Product feature multitag-capable		Yes	Yes
  Polarization		Linear	Linear
  Product component Backup battery		No	No
  Memory
  Type of memory		EEPROM	EEPROM
  Storage capacity of the user memory		64 byte	64 byte
  Type of memory organization		EPC memory 96/128 bits, user memory 64 bytes (512 bits), TID memory 4 bytes	EPC memory 96/128 bits, user memory 64 bytes (512 bits), TID memory 4 bytes
  Number of read cycles at ambient temperature < 40 °C maximum		100 000 000 000 000	100 000 000 000 000
  Number of write cycles at ambient temperature < 40 °C maximum		100 000	100 000
  Data retention time at ambient temperature < 40 °C not less than		10 y	10 y
  Property of memory		lock, unlock, write protection, password protection	lock, unlock, write protection, password protection
  Type of transponder chip used		IMPINJ MONZA 4QT	IMPINJ MONZA 4QT
  Mechanical data
  Material		PA6.6	PA6.6
  Color		black	black
  Tightening torque of the screw for securing the equipment maximum		1 N·m	1 N·m
  Mounting distance relating to metal surfaces recommended minimum		0 mm	0 mm
  Permitted ambient conditions
  Ambient temperature
  ● during read/write access		-25 ... +85 °C	-25 ... +85 °C
  ● outside the read/write area		-40 ... +125 °C	-40 ... +125 °C
  ● during storage		-40 ... +125 °C	-40 ... +125 °C
  Protection class IP		IP68 / IPx9K	IP68 / IPx9K
  Shock resistance		According to DIN EN 60721-3-7 Class 7 M3	According to DIN EN 60721-3-7 Class 7 M3
  Shock acceleration		1 000 m/s²	1 000 m/s²
  Vibrational acceleration		500 m/s²	500 m/s²
  Design, dimensions and weight
  Height		8 mm	8 mm
  Diameter		30 mm	30 mm
  Mounting type		gluing, M3 screw	gluing, M3 screw
  Product properties, functions, components general
  Product feature
  ● printable		No	No
  Standards, specifications, approvals
  MTBF		1 141 y	1 141 y
