1PH8 for SINAMICS S120 for machine tools

Заказные данные
(115)

SIMOTICS M-1PH8 motors are compact asynchronous squirrel-cage motors with IP55/IP65 degree of protection. SIMOTICS M-1PH8 motors are available in two different cooling types:

Forced ventilation
Water cooling

The motors have been designed specifically for use in conjunction with the SINAMICS S120 drive system. Depending on the control requirements, appropriate encoder systems are available for the motors for sensing the motor speed and indirect position.

For machine tools, the encoder system is capable of C-axis operation as standard – i.e. an additional encoder is not required for C-axis operation.

Область применения

Compact machine tools
Complex machining centers and turning machines
Fully encapsulated milling machines
High-load milling spindles
Counterspindles or power tools for turning machines
Direct power tools with internal cooling
Special-purpose machines

Характеристика

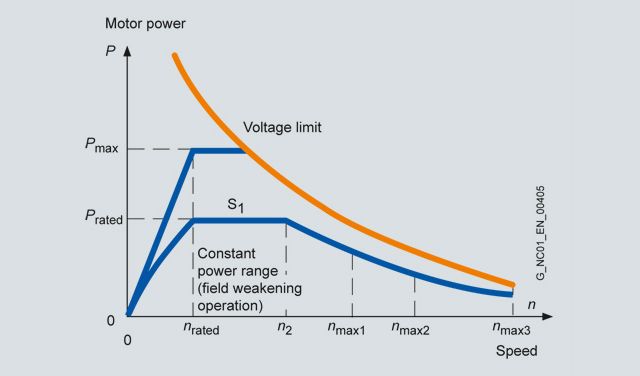

Typical speed/power graph for SIMOTICS M-1PH8 asynchronous motors

The graph shows the typical relationship between motor speed and drive power for SIMOTICS M-1PH8 motors for duty type S1 (continuous duty) in accordance with IEC 60034-1.

Data for short-time duty S2 and continuous duty S6 ist listed in the 1PH8 Motors Configuration Manual.

Конфигурация

Ordering example

Selection criteria	Design	Structure of the Article No.
1PH8 motor	Shaft height 80 Version status 1	1PH8083-. . . . . - . . .1
1PH8 motor	Asynchronous version without brake	1PH8083-1 . . . . - . . .1
Encoder system	Incremental encoder sin/cos 1 V_pp 2048 S/R with C and D tracks (encoder IC2048S/R)	1PH8083-1M . . .- . . .1
Rated speed	1750 rpm	1PH8083-1MF . . - . . .1
Rated power	3.3 kW	1PH8083-1MF . . - . . .1
Cooling	Water cooling	1PH8083-1MF2 . - . . .1
Type of construction	IM B3 (IM V5, IM V6)	1PH8083-1MF20- . . .1
Shaft extension DE	Plain shaft	1PH8083-1MF20-0 . .1
Bearing version	Standard Vibration severity R/A Shaft and flange accuracy R	1PH8083-1MF20-0B .1
Connection	Power connection at top of terminal box Cable entry on right Signal connection at DE	1PH8083-1MF20-0BA1
Options		1PH8083-1MF20-0BA1-Z
	Additional PTC thermistor chain for alarm and tripping	1PH8083-1MF20-0BA1-Z A12
	Special paint finish, worldwide: Sky blue RAL 5015	1PH8083-1MF20-0BA1-Z A12 K23 X05

Чертеж

ENG_137866.PDF

Особенности

Wide range of power ratings
The right design for any application
- Forced ventilation or water cooling
- Solid shaft or hollow shaft
- Various bearing concepts
- Different encoder types for closed-loop speed control and high-precision positioning

Excellent performance features
- Maximum speeds of up to 20000 rpm
- Excellent rotational accuracy of up to 10 μm
- Excellent vibration severity
- High dynamic response (short acceleration times)

Low noise emission
Simple, flexible connection system
Commissioning with electronic rating plate and DRIVE-CLiQ interface

Water cooling always brings benefits:

With applications in which extreme ambient conditions, such as high temperatures, dust, dirt, or a corrosive atmosphere, do not permit air cooling
In processes in which the environment must not be heated

Технические данные

Product name	SIMOTICS M-1PH8
Cooling	Forced ventilation	Water cooling
Cooling water pressure at inlet, max.	–	6 bar
		Cooling water flow rate	Connection thread at NDE¹⁾
1PH808	–	6 l/min (1.59 US gallons/min.)	G 1/8“
1PH810	–	8 l/min (2.11 US gallons/min.)	G 1/4“
1PH813	–	12 l/min (3.17 US gallons/min.)	G 3/8“
1PH816	–	15 l/min (3.96 US gallons/min.)	G 1/2“
1PH818	–	15 l/min (3.96 US gallons/min.)	G 3/8“
1PH822	–	20 l/min (5.28 US gallons/min.)	G 3/8“
1PH828	–	35 l/min (9.25 US gallons/min.)	G 1/2“
Ambient temperature, permissible	-15 ... +40 °C (5 ... 104 °F)
Coolant inlet temperature	–	< 30 °C (86 °F)
Temperature monitoring	Temperature sensor in stator winding
1PH818/1PH822/1PH828	Additional temperature sensor as reserve
Stator winding insulation in accordance with EN 60034-1 (IEC 60034-1)	For an ambient temperature of up to 40 °C (104 °F) Temperature class 180 (H)	For a coolant inlet temperature up to 30 °C (86 °F) Temperature class 180 (H)
Fan supply voltage
1PH808	230 V 1 AC 50/60 Hz, 265 V 1 AC 60 Hz	–
1PH810 to 1PH816	400 V 3 AC 50/60 Hz, 480 V 3 AC 60 Hz	–
1PH818/1PH822	200 V ... 277 V 1 AC, 50/60 Hz (EC fan) 400 V 3 AC 50/60 Hz, 480 V 3 AC 60 Hz optional (L75)	–
1PH828	400 V 3 AC 50/60 Hz, 480 V 3 AC 60 Hz	–
Encoder system, built-in	Without DRIVE-CLiQ interface or with DRIVE-CLiQ interface
Sound pressure level L_pA (1 m) in accordance with EN ISO 1680 max. tolerance +3 dB
1PH808 to 1PH813	70 dB at rated pulse frequency 4 kHz and speed range up to 5000 rpm	68 dB at rated pulse frequency 4 kHz and speed range up to 5000 rpm
1PH816	73 dB at rated pulse frequency 4 kHz and speed range up to 5000 rpm	69 dB at rated pulse frequency 4 kHz and speed range up to 5000 rpm
1PH818/1PH822	73 dB at a rated pulse frequency of 2 kHz and a speed range: Forced ventilation (IP55) 1PH818 up to 5000 rpm 1PH822 up to 3500 rpm	70 dB at rated pulse frequency 2 kHz and speed ranges: 1PH818 up to 5000 rpm 1PH822 up to 3500 rpm
1PH828	74 dB at rated pulse frequency 2 kHz and speed range up to 3300 rpm	72 dB at rated pulse frequency 2 kHz and speed range up to 3300 rpm
Connection
1PH808/1PH810/1PH813	Power connector or terminal box
1PH816/1PH818/1PH822/1PH828	Terminal box	Terminal box
Fan
1PH808	Power connector	–
1PH810/1PH813	Power connector or terminal box	–
1PH816/1PH818/1PH822/1PH828	Terminal box	–
Encoder system	Connector for signals (without mating connector) or DRIVE-CLiQ
Vibration severity	In accordance with Siemens/EN 60034-14 (IEC 60034-14)
Shaft and flange accuracy in accordance with DIN 42955 (IEC 60072-1)²⁾	Tolerance R
Degree of protection in accordance with EN 60034-5 (IEC 60034-5)
1PH808/1PH810/1PH813/1PH816	IP55	IP65
1PH818/1PH822/1PH828	IP55	IP55
Fans	IP55, option IP74: IP65 ³⁾	–
Rating plate	1 unit attached to motor 1 unit supplied loose in terminal box
Paint finish	Anthracite RAL 7016
Certificate of suitability	cURus

S/R = Signals/Revolution

¹⁾ DE is the drive end with shaft. NDE is the non-drive end.

²⁾ Shaft extension run-out, concentricity of centering ring and shaft, and perpendicularity of flange to shaft.

³⁾ Only for 1PH808/1PH810/1PH813/1PH816.

Дальнейшая информация

For further configuration information, see the 1PH8 Motors Configuration Manual.

If you are using a Smart Line Module, proceed in accordance with the 1PH8 Motors Configuration Manual.
