2SP1 motor spindles for SINAMICS S120

Заказные данные
(12)

The 2SP1 motor spindle product range comprises compact standard motor spindles for milling machines that can be used as an alternative to belt-driven spindles for rough cutting and precise fine machining applications.

The 2SP1 motor spindle contains all the classical elements of a motor spindle, such as a tool interface, tool clamping and release mechanism, spindle bearings suitable for absorbing the machining forces, water-cooled drive motor, spindle casing for fixing and sensors for indexing and monitoring tool changeover.

The motor spindles are available in 2 diameters of 200 mm (7.87 in) (2SP120) and 250 mm (9.84 in) (2SP125) and are offered with a range of different torques and speeds to match the respective milling machine family. The motor spindles are ideally matched to the performance levels of SINAMICS S120.

The complete product range of 2SP1 motor spindles was developed in cooperation with and is manufactured at Weiss Spindeltechnologie GmbH.

Область применения

The main application area for 2SP1 motor spindles are main spindles for milling machines and machining centers in the job shop area of the machine tools sector.

The 2SP120 motor spindles are particularly suitable for the area of light metal machining at low torque and high speeds.

The 2SP125 motor spindles are characterized by a high torque. The main area of application is in the machining of steel and castings.

Дизайн

A key feature of 2SP1 motor spindles is their rugged design.

Depending on the version, the following options are available for 2SP1 motor spindles:

Various tool interfaces
Internal tool cooling
External tool cooling

Характеристика

Speed/power graphs

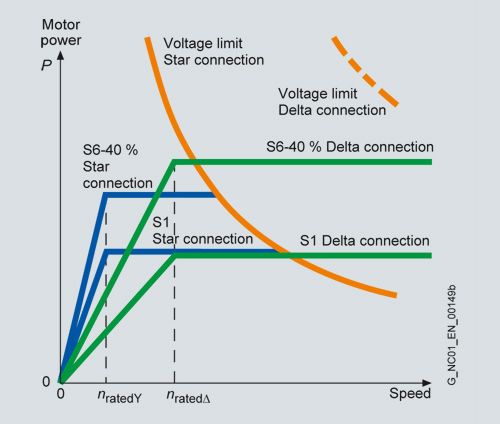

2SP1 motor spindles in asynchronous design with star-delta changeover

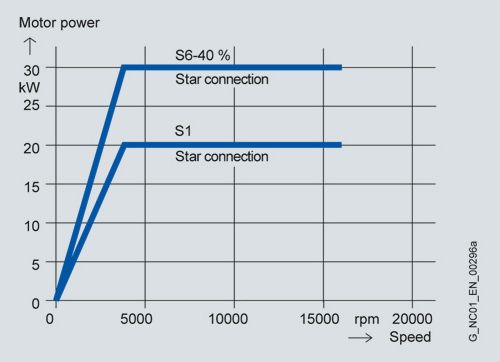

2SP1 motor spindles in synchronous design

Интеграция

The 2SP1 motor spindle are generally compatible with:

SINAMICS S120
SINUMERIK 840D sl

For the synchronous version of 2SP1 motor spindles, a VPM Voltage Protection Module or the Internal Voltage Protection IVP must be used as an integrated SINAMICS function, see Voltage Protection Module VPM.

Чертеж

ENG_124296.PDF

Особенности

The 2SP1 motor spindles offer the following important user benefits over conventional belt-driven solutions:

Compact spindle solution and everything integrated in the spindle box
Fewer components and easy installation
Economical standard solution as compared with today's belt-driven solutions
Drive train with high degree of rigidity
High torque and speed and therefore high productivity thanks to high cutting efficiency and reduction of non-productive time
Higher speed and shorter start-up times as compared with conventional belt-driven or gear solutions
Economical pneumatic tool release mechanism or optional fast hydraulic tool release mechanism
Worldwide system delivery including spindle mechanics from a single source – from Siemens
Extremely short tool change times with 2SP210 thanks to 2-channel technology and clamping set with optional latching capability

Технические данные

Product name	2SP120 motor spindles	2SP125 motor spindles
Standard functions
Speed, max.	15000 rpm	10000 rpm
Enclosure	Cartridge with flange mounting	Cartridge with flange mounting
Operating position	Horizontal/vertical	Horizontal/vertical
Tool holder	HSK A63	SK 40 for tools with asymmetrical slot nuts
Tool clamping device	Release using pneumatic cylinder, 6 bar Clamp using cup-spring assembly	Release using pneumatic cylinder, 6 bar Clamp using cup-spring assembly
Tool taper cleaning	Compressed air through draw-bar 5 ... 6 bar	Compressed air through draw-bar 5 ... 6 bar
Cooling with water	Max. 5 bar, 10 l/min (2.64 US gallons/min) Max. 25 % corrosion protection agent Clariant Antifrogen N or Tyfocor Filter grade 100 μm	Max. 5 bar, 10 l/min (2.64 US gallons/min) Max. 25 % corrosion protection agent Clariant Antifrogen N or Tyfocor Filter grade 100 μm
Recommended coolant inlet temperature, approx.	25 °C (77 °F) (depending on the ambient temperature)	25 °C (77 °F) (depending on the ambient temperature)
Standard protection - temperature monitoring	Motor thermal sensor KTY84-130 PTC for full thermal protection NTC PT3-51F NTC K227	Motor thermal sensor KTY84-130
Stator winding insulation in accordance with EN 60034-1 (IEC 600034-1)	Temperature class 155 (F) for a coolant inlet temperature of 25 °C (77 °F)	Temperature class 155 (F) for a coolant inlet temperature of 25 °C (77 °F)
Degree of protection in accordance with IEC 60034-5	IP64 (in working area) IP53 (behind the spindle flange)	IP64 (in working area) IP53 (behind the spindle flange)
Bearing lubrication	Grease, permanent lubrication	Grease, permanent lubrication
Front bearing seal	Sealing air 1 ... 1.5 m³/h, filter grade 8 µm	Sealing air 1 ... 1.5 m³/h, filter grade 8 µm
Encoder system	Hollow-shaft measuring system, incremental, sin/cos 1 V_pp 256 S/R with zero mark	Hollow-shaft measuring system, incremental, sin/cos 1 V_pp 256 S/R with zero mark
Clamping status monitoring
Sensors analog	Tool clamped Draw-bar in the release position Clamped without tool	–
Sensors digital	Position of release piston	Tool clamped Draw-bar in the release position Clamped without tool
Connections for the media
Cooling	2 × hose plug-in connector, Ø 12 mm/10 mm (0.47 in/0.39 in)	2 × G 1/2“ (Ø 9 mm) (0.35 in))
Sealing air	1 × G 1/8“ radial/Ø 5 mm (0.20 in) axial	1 × G 1/8“ (Ø 8 mm) (0.31 in))
Air purge	1 × G 1/4“	1 × G 1/4“
Release tool	1 × G 1/4“	1 × M16 × 1,5
Clamp tool	1 × G 1/8“	1 × G 1/8“
Electrical connections	Power via cable 1.5 m (4.92 ft) Sensors through signal plug	Power via cable 1.5 m (4.92 ft) Sensors through signal plug
Options
Increased max. speed	18000 rpm	15000 rpm (with HSK A63)
Internal tool cooling	50 bar, up to 54 l/min(11.89 US gallons/min) Filter grade 50 μm according to -/16/13 ISO 4406 1 × G1/4“ coolant 1 × G1/8“ leakage	50 bar, up to 54 l/min (11.89 US gallons/min) Filter grade 50 μm according to -/16/13 ISO 4406 1 × G1/4“ coolant 1 × G1/8“ leakage
External tool cooling	Ring with 6 adjustable nozzles 5 bar Filter grade 50 μm in according to -/16/13 ISO 4406	–
Tool clamping device	Release using hydraulic cylinder, 80 bar Clamping using cup-spring assembly 1 × G 1/4“, release tool 1 × G 1/4“, clamp tool	–
Tool interface	–	BT 40, CAT 40, HSK A63

S/R = signals/revolution

Дальнейшая информация

Please refer to SIMOTICS main motors – Liquid cooling for a list of cooler manufacturers.

In addition to the standard motor spindles in the 2SP1 product range, it is also possible to use individually customized motor spindle designs.

For information about other motor spindles for turning, grinding, milling and drilling, please contact:

WEISS Spindeltechnologie GmbH
A Siemens Company
Birkenfelder Weg 14
96126 MAROLDSWEISACH
GERMANY

Tel.: +49 9532 9229-0
E-Mail: info@weissgmbh.de

http://www.weissgmbh.com
