1PH2 built-in motors for SINAMICS S120

Заказные данные
(12)

Active parts (rotor and stator) of SIMOTICS M-1PH2 asynchronous built-in motors

SIMOTICS M-1PH2 built-in motors for turning machines are liquid-cooled squirrel-cage AC asynchronous motors. These built-in motors have been specially developed for variablespeed operation of main spindles on turning machines.

Область применения

SIMOTICS M-1PH2 built-in motors are used for machines requiring an extremely high standard of machining quality, accuracy and running smoothness

Turning machines
Grinding machines

Характеристика

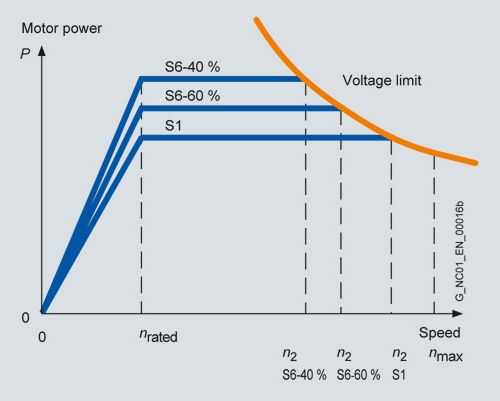

Typical speed/power graph for AC motors¹⁾

The graph shows the typical relationship between motor speed and drive power for SIMOTICS M-1PH2 motors for the following duty types in accordance with IEC 60034-1:

S1: Continuous duty

S6: Continuous duty with intermittent load and a relative duty factor of 60 % (S6-60 %) or 40 % (S6-40 %) with a maximum duty cycle time of 10 minutes.

SIMOTICS M-1PH2 built-in motor	Rated speed	Attainable speed at rated power in duty type
Type	n_rated	n₂²⁾
		S1	S6-60 %	S6-40 %
	rpm	rpm	rpm	rpm
1PH2093	1500	4700	4200	3900
1PH2095	1500	4000	3600	3300
1PH2113	1500	5400	4800	4400
1PH2115	1500	4500	4100	3700
1PH2117	1500	4700	4200	3800
1PH2118	1500	5300	4500	4100

¹⁾ For further configuration information, see the SIMOTICS M-1PH2 Motors Configuration Manual.

²⁾ Values indicated by the speed/power graph are valid in systems with an Active Line Module and a 400 V 3 AC supply system.
If you are using a Smart Line Module, proceed in accordance with the SIMOTICS M-1PH2 Motors Configuration Manual.

Чертеж

ENG_335359.PDF

Особенности

Compact design obtained by dispensing with mechanical components such as coupling, belt drive, gearbox and spindle encoder
High power density as a result of liquid cooling
The absence of drive transverse forces permits extremely high accuracy on the workpiece due to smooth, accurate spindle motion even at very low speeds
Extremely short ramp-up and braking times
Full rated torque is continuously available, even at standstill
Simple servicing by replacing complete motor spindles
Increased rigidity of the spindle drive, achieved by mounting the motor components between the main spindle bearings
C-axis compatibility with hollow-shaft measuring system mounted on the spindle
Low noise level due to absence of machine elements
Torque is transmitted to the spindle mechanically without play by means of a cylindrical stepped press fit. The rotor is mounted on the spindle by thermal shrinking. The bond can be released by pressure-oil injection without affecting the joint surfaces.
The rotor with sleeve is pre-balanced and can be removed and subsequently remounted
The rotor with sleeve is finished-machined - that is, the rotor outer diameter need not be finished after mounting.

Технические данные

Product name	SIMOTICS M-1PH2 built-in motor
Coolant inlet temperature	Because of the formation of condensation, we recommend a coolant inlet temperature of approx. 25 °C (77 °F), depending on the ambient conditions.
Cooling water pressure at inlet, max	7 bar
Coolant flow rate (water)	8 l/min (2.11 US gallons)
Connection thread	Dependent on cooling unit used
Temperature monitoring	2 KTY 84 temperature sensors in the stator winding, 1 × as reserve
Stator winding insulation in accordance with EN 60034‑1 (IEC 60034‑1)	Temperature class 155 (F) for a coolant inlet temperature of up to 25 °C (77 °F)
Motor encoder, recommended	Hollow-shaft measuring system (not included in scope of supply)
Type of construction (cf.ISO)	Individual components: Stator, rotor
Motor connection type	Free cable ends with length of 0.5 m (19.7 in) or 1.5 m (59.1 in) length
Balance quality of rotor in accordance with ISO 1940‑1	1PH2093 to 1PH2118: G 2.5 Reference speed 3600 rpm
Degree of protection in accordance with IEC 60034‑5	IP00
Rating plate	1 unit supplied separately
Certificate of suitability	cURus

Refer to Liquid cooling for a list of cooling unit manufacturers.

Дальнейшая информация

Cooling principle

For design of the cooling units, see Configuration Manual.

Cooling principle for 1FE1/1PH2 motors

For a list of heat exchanger manufacturers, please refer to Liquid cooling.
