Purging unit FM (Class I Div 2)

• Заказные данные
  (1)
• Информационные материалы

  Область применения

  The Ex purging unit MiniPurge FM is used to monitor the pressure during continuous purging of an analyzer with purging or inert gas. If the pressure falls below the set value, an optical display is triggered and the relay is activated. This monitoring unit is driven by the purging gas pressure and therefore does not require an additional power supply.

  Чертеж

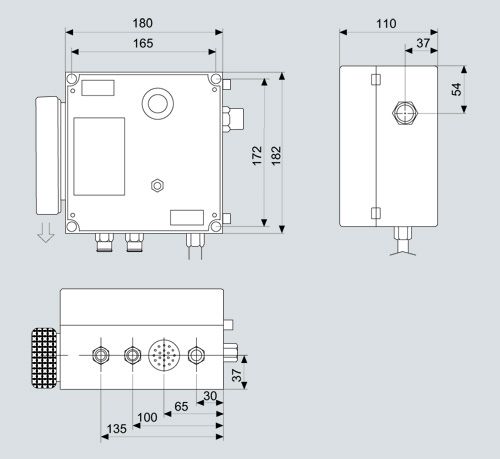

  MiniPurge, dimensions in mm

  Схема подключения

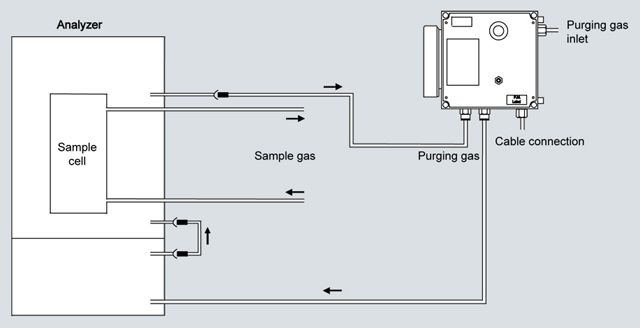

  MiniPurge, purging unit, Class I, Div 2, gas connection diagram

  Технические данные

  Classification	Class I Division 2
  FM certificate	Certificate of compliance 1X8A4.AE / 0B3A3.AE
  Reaction upon failure of pressure	Opening of switching contact, and alarm via signal indicator (red display)
  System type	MiniPurge complete system
  Operating mode	Continuous purging
  Type of enclosure	Reinforced polycarbonate
  Enclosure surface	RAL 7035 gray with transparent cover
  Pressure supply	Dry, oil-free air or inert gas with regulated pressure of approx. 2000 hPa (30 psi) at inlet of MiniPurge
  Supply connections	Pressure via ¼ BSPP connection, pressure hose at least ½" or 12 mm
  Display (signal indicator)	Pneumatically driven color signal: green/red
  Switching contact	Via SPCO switch approved for Class I Division 2
  Settings	Lower response limit 0.5 hPa set relative to purging gas flow of 1 to 2 l/min
  Prepurging time	Is defined by operator, and controlled manually
  Enclosure pressure limitation	Made of stainless steel with integrated flame arrestor; opens at 10 hPa ± 10 %
