  BARTEC Ex p control unit, "leakage compensation"

  The APEX 2003.SI control unit controls and monitors the prepurging and operating phases of gas analyzers with containment systems in hazardous zone 1.

  The control unit redundantly monitors the set overpressure of the purging gas. When the overpressure decreases, it is corrected to the adjustable setpoint (max. purging gas pressure 165 hPa).

  Чертеж



  BARTEC control unit, dimensions in mm

  Схема подключения

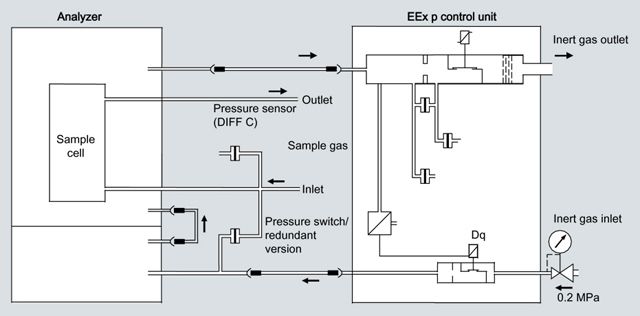

  BARTEC control unit, leakage compensation, gas connection diagram

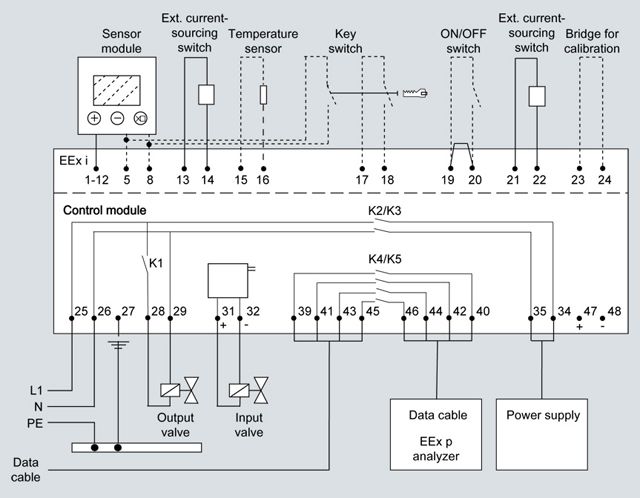

  BARTEC control unit, leakage compensation, electric connection diagram

  Технические данные

  Guidelines	EU EMC Guideline 89/336/EEC EC low voltage, RL 73/23/EEC ATEX directive 94/9/EC
  Design	Explosion-protected enclosure (Ex e) with viewing window in the cover
  Enclosure material	Glass fiber-reinforced polyester
  Degree of protection	IP65
  Terminals	2.5 mm, finely stranded
  Pressure sensors	MIN A = 0 … 300 hPa MIN B = 0 … 300 hPa MAX = 0 … 300 hPa MAX 1 = 0 … 300 hPa DIFF A = 0 … 25 hPa DIFF B = 0 … 25 hPa
  Prepurging time	0 … 99 min; 5 sec dropout delayed
  Weight	14.5 kg
  Electrical data
  Supply voltage	230 V AC (115 V AC) ± 10 %, 48 … 62 Hz
  Power consumption	21 W /230 V
  Relay contacts	K2/3; max. 250 V, 5 A with cos ϕ = 1, K4/K5; supply voltage or floating, max. 250 V, 5 A with cos ϕ = 1
  Communication (for service only)	RS 485 interface
  Temperature switching value (option)	0 … +40 °C
  Explosion protection
  Marking	II 2(1)G Ex e d ib [ia Ga px] IIC T4 Gb
  Design examination certificate	DMT 99 ATEX E 082
  Ambient temperature	-20 … +40 °C
